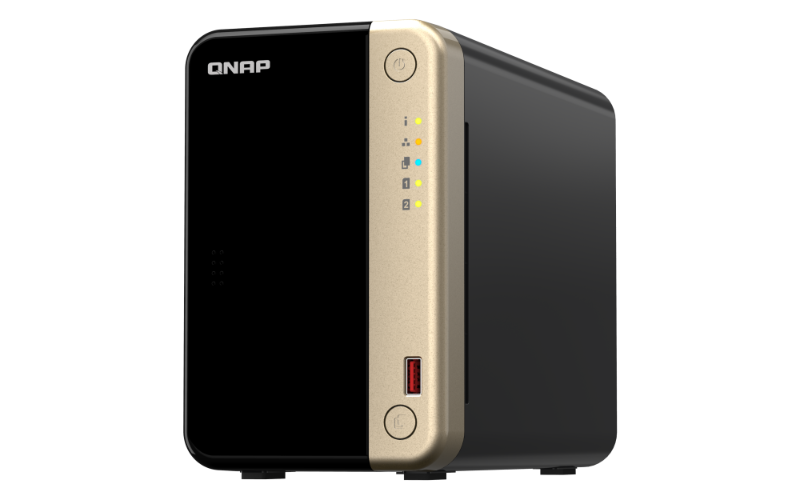

Qnap Ts-264-8G, 2-Bay Desktop Nas, Intel® Celeron® N5105/N5095 Quad-core, 8 Gb DDR4 Onboard Not Expandable, 2 X 3.5"/2.5" Sata 6Gb/s Drive Bays, 2 Yrs Wty TS-264-8G
SKU
397501
Brand
MPN
TS-264-8G
Warranty
Standard Manufacturer's Warranty
$1,078.00
Buy Now And Earn 1078 Reward Points!
The TS-264-8G, 2-Bay desktop NAS, Intel® Celeron® N5105/N5095 quad-core, 8 GB DDR4 onboard not expandable, 2 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x M.2 2280 PCIe Gen 3 x1 slots, 2 x 2.5GbE, 1 x HDMI 2.0, 1 x PCIe Gen3 x2 slot, 2 x USB 3.2 Gen 2 Type-A + 2 x USB 2.0
| GPU | Integrated Intel UHD Graphics |
|---|---|
| SKU | TS-264-8G |
| UPC | 885022024681 |
| ASIN | B0BLJ97L82 |
| HDMI | HDMI output (manufacturer lists HDMI 2.1; supports up to 4096 x 2160 @ 60Hz / 4K60) |
| Brand | QNAP |
| Color | Black |
| Model | TS-264-8G |
| Power | Power Adapter: AC 100-240V Power Provided (Adapter rating): 65 W (adapter) Typical Power Consumption (operational, manufacturer-listed): Approx. 12.448 W |
| Weight | 3.42 lbs |
| Category | Storage |
| Warranty | 3-year limited warranty (manufacturer) |
| M.2 Slots | 2 x M.2 2280 PCIe Gen3 x2 NVMe |
| PCIe Slot | 1 x PCIe Gen3 x2 (for expansion cards: 10GbE, QM2, Edge TPU, etc.) |
| Processor | Intel Celeron N5105 / N5095 (quad-core) |
| USB Ports | 2 x USB 3.2 Gen2 Type-A (10Gbps), 2 x USB 2.0 Type-A |
| Encryption | Intel AES-NI hardware-accelerated (256-bit AES supported, FIPS 140-2 listed) |
| Max Memory | Up to 16 GB DDR4 |
| Description | The QNAP TS-264-8G is a compact, high-performance 2-bay desktop NAS powered by an Intel Celeron N5105/N5095 quad-core processor (burst up to 2.9 GHz) with integrated Intel UHD Graphics. It ships with 8 GB DDR4 memory (expandable) and features dual 2.5GbE ports (with port trunking for increased throughput), dual M.2 PCIe Gen3 x2 NVMe slots for cache or NVMe storage pools, and one PCIe Gen3 x2 expansion slot for network or QM2/Edge TPU cards. The unit provides HDMI output (supports 4K60), hardware-accelerated AES-NI encryption, multiple USB ports including two USB 3.2 Gen2 (10Gbps) Type-A ports, and QTS 5 OS with apps for backup, virtualization, media streaming and SSD cache acceleration. Ideal for home and small office file sharing, backup, multimedia streaming and light virtualization. |
| Memory Type | DDR4 |
| RAID Levels | JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID 50 RAID 60 |
| Key Features | Hardware-accelerated encryption (AES-NI) Dual 2.5GbE with port trunking (up to aggregated 5Gb/s) Dual M.2 NVMe for cache or SSD pools 4K HDMI output and hardware transcoding SSD cache acceleration and SSD cache RAID support Virtualization and container support Snapshot and backup solutions, multi-cloud backup and gateway Kensington security slot, smart fan, USB copy button |
| Manufacturer | QNAP |
| Storage Bays | 2 (hot-swap) |
| Sub-Category | Network Attached Storage (NAS) |
| Model Numbers | TS-264-8G TS-264-8G-US WDMX075RNH |
| Product Title | QNAP TS-264-8G 2-Bay Desktop NAS (Intel Celeron, 8GB DDR4, Dual 2.5GbE, Dual M.2 NVMe) |
| Ethernet Ports | 2 x 2.5GbE RJ-45 |
| Included Items | QNAP TS-264-8G NAS enclosure Ethernet cable x1 Power cord / AC adapter Flat head screws for 3.5" HDDs (6) Flat head screws for 2.5" HDDs (6) |
| Operating System | QNAP QTS 5 (also supports QuTS hero as noted) |
| Performance Note | Manufacturer lists up to 589 MB/s transfer speeds with port trunking in test conditions (actual performance depends on configuration and environment). |
| Memory (Installed) | 8 GB DDR4 |
| Network Connectivity | Dual 2.5GbE (2.5G/1G/100M) RJ-45 ports with port trunking (supports aggregated bandwidth) |
| Operating Conditions | Operating Humidity: 5 - 95% RH (non-condensing) Operating Temperature: 32 to 104 °F |
| Processor Turbo Speed | Up to 2.9 GHz (burst) |
| Supported Drive Types | 3.5-inch SATA HDD 2.5-inch SATA HDD/SSD M.2 NVMe SSD (for cache or storage pools) |
| Dimensions (L x W x H) | 8.9 x 6.69 x 6.61 inches |
| Drive Bay Form Factors | 3.5" and 2.5" |
| Manufacturer Part Number | TS-264-8G-US |
| Processor Cores / Threads | 4 cores / 4 threads |
| Expansion & Compatible Cards | Supports QM2 cards, 10GbE network cards (e.g., QXG series), Edge TPU cards for AI acceleration |
| Maximum Drive Capacity ( per manufacturer notes ) | Supports installing 3.5" drives up to 24 TB each (manufacturer-stated; actual supported capacity depends on drive availability and firmware) |
QNAP TS-264-8G, 2-Bay desktop NAS, Intel® Celeron® N5105/N5095 quad-core, 8 GB DDR4 onboard not expandable, 2 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 Yrs WTY
