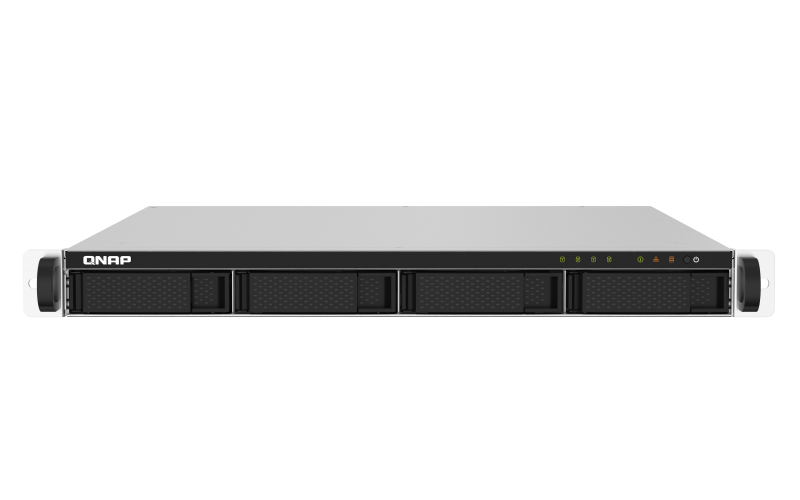

Qnap Ts-432Pxu-2G 4-Bay 1U Rackmount Nas Cortex-A57 Quad-core 1.7GHz Cpu, 2GB DDR4 Udimm RAM(max 16GB), Sata 6Gb/s,2x 2.5Gbe, 2x10GbE SFP+,3y Wty (no Rail Incl) TS-432PXU-2G
SKU
386062
Brand
MPN
TS-432PXU-2G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,652.00
Buy Now And Earn 1652 Reward Points!
QNAP TS-432PXU-2G 4-Bay 1U rackmount NAS Cortex-A57 quad-core 1.7GHz CPU, 2GB DDR4 UDIMM RAM(max 16GB), SATA 6Gb/s,2x 2.5Gbe, 2x10GbE SFP+,3y wty (no RAIL incl)
| CPU | AnnapurnaLabs Alpine AL324 (64-bit ARM Cortex-A57) Quad-core 1.7 GHz |
|---|---|
| MPN | TS-432PXU-2G-US |
| UPC | 885022020195 |
| Brand | QNAP |
| Model | TS-432PXU-2G |
| Notes | Specifications compiled from multiple vendor/manufacturer listings. Some software/firmware versions (QTS) and software limits (maximum pool/volume sizes, channel counts) were reported differently across sources; quoted values are those reported by the sources. M.2 and certain expansion features require optional adapters/cards and may be limited by the PCIe Gen2 x2 bandwidth. |
| Cooling | 2 x 40 mm fans (12 V DC) — reported |
| Category | Storage |
| Humidity | 5 - 95% RH non-condensing (wet bulb: 27 °C reported) |
| Warranty | 3 years (standard warranty reported) |
| PCIe Slot | 1 x PCIe Gen2 x2 (for expansion card; card dimension limits apply) |
| USB Ports | 4 x USB 3.2 Gen 1 (Type-A) |
| Drive Bays | 4 x hot-swappable 3.5"/2.5" SATA (SATA III / 6 Gb/s compatible) |
| Description | The QNAP TS-432PXU-2G is a 1U, 4-bay rackmount NAS designed for SMB and IT environments that need high network bandwidth and flexible expansion. Powered by an AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 quad-core 1.7 GHz CPU and 2 GB DDR4 memory (user-upgradeable to 16 GB), the TS-432PXU-2G provides dual 10GbE SFP+ and dual 2.5GbE RJ-45 ports for high-speed file sharing and collaboration. It includes a PCIe Gen2 x2 slot for optional expansion (10GbE, SSD cache adapter, wireless), four hot-swappable SATA drive bays (3.5"/2.5"), four USB 3.2 Gen 1 ports, and a 250 W internal PSU. The device runs QNAP QTS (reported versions include 4.4.3 and 5.2.8) and supports RAID 0/1/5/6/10/JBOD, snapshot protection, hybrid cloud gateway integration, and a wide range of backup and server apps. Physical and environmental specs include a 1.7" x 16.93" x 18.86" (approx.) chassis, ~6.53 kg net weight, and typical operating power consumption ~39.56 W. |
| Form Factor | 1U Rackmount |
| Jumbo Frame | Supported (reported in feature lists) |
| M.2 Support | Optional via PCIe adapter (reported) |
| Memory Type | DDR4 |
| Wake on LAN | Supported (2.5GbE port reported) |
| Flash Memory | 512 MB (dual-boot OS protection reported) |
| Memory Slots | 1 (user-replaceable; manufacturer reports a single DDR4 module slot; max up to 16 GB) |
| Power Supply | 1 x 250 W internal PSU, 100-240 VAC, 50/60 Hz |
| Sub-Category | Network Attached Storage (NAS) |
| Weight (Net) | 6.53 kg (14.4 lb) — reported |
| Network Ports | 2 x 10GbE SFP+; 2 x 2.5GbE RJ-45 |
| Product Title | QNAP TS-432PXU-2G 1U 4-Bay Rackmount NAS — 2 x 10GbE SFP+, 2 x 2.5GbE, Quad-Core 1.7GHz, 2GB DDR4 |
| Maximum Memory | 16 GB (1 x 16 GB) |
| CPU Architecture | 64-bit ARM |
| Installed Memory | 2 GB DDR4 (user-replaceable) |
| Operating System | QNAP QTS (reported versions: QTS 4.4.3 and QTS 5.2.8) |
| Encryption Engine | Hardware encryption supported (AES 256-bit reported) |
| Supported Features | File backup and synchronization Snapshot protection (folder & LUN) Hybrid Backup Sync / cloud gateway support Google Workspace and Microsoft 365 backup support Qsync, Qfiling, Qsirch, QuMagie, QVR (surveillance) integration iSCSI LUN clone/snapshot, RTRR, Rsync, FTP, WebDAV, SMB/CIFS, AFP (as reported) VPN client/server, OpenVPN, VPN support SNMP v2/v3, LDAP, Active Directory, Link Aggregation, Load Balancing |
| Drive Compatibility | 3.5-inch SATA HDDs; 2.5-inch SATA HDDs; 2.5-inch SATA SSDs |
| Storage Temperature | -20 - 70 °C (-4 - 158 °F) |
| Supported Client OS | Windows (7 and later), Windows Server (2008 R2 and later), macOS (10.10 and later), Linux distributions (Ubuntu, CentOS, RHEL, SUSE), UNIX variants (AIX, Solaris) — as reported |
| Operating Temperature | 0 - 40 °C (32 - 104 °F) |
| Supported RAID Levels | RAID 0, 1, 5, 6, 10, JBOD, Single |
| Dimensions (H x W x D) | 44 x 439 x 499 mm (reported); 1.7 x 16.93 x 18.86 inches (reported, excludes ear hook and protruding PSU parts) |
| Manufacturer Part Number | TS-432PXU-2G-US |
| Weight (Gross / Package) | 9.53 kg (20.41 lb) reported; package/box weight ~20.57 lb reported by some sellers |
| Certifications / Compliance | IPv4/IPv6, ONVIF support, TLS 1.0/1.1/1.2/1.3 (as reported); other certifications/listings reported by manufacturers/resellers |
| Power Consumption (Typical) | 39.558 W (operating, drives fully populated) — reported |
| Maximum Pool Size (software) | 308 TB (reported) |
| Performance Notes (reported) | Vendor-reported examples: link-aggregated 2 x 2.5GbE can reach ~492 MB/s read and ~582 MB/s write (RAID 5, SSDs); dual 10Gb SFP+ connections reported leading to multi-gig throughput (figures reported by some resellers). |
| Included Items / Package Content | NAS enclosure (TS-432PXU), 1 x Ethernet cable, power cord(s), flat-head screws for 3.5" and 2.5" drives (counts reported: 16 for 3.5" and 12 for 2.5"), Quick Installation Guide (counts/contents reported across sources) |
| Maximum Raw Capacity (manufacturer) | 88 TB (using supported drives) |
| Maximum Volume / LUN Size (software) | 250 TB (reported; notes: some features require additional RAM) |
QNAP TS-432PXU-2G 4-Bay 1U rackmount NAS Cortex-A57 quad-core 1.7GHz CPU, 2GB DDR4 UDIMM RAM(max 16GB), SATA 6Gb/s,2x 2.5Gbe, 2x10GbE SFP+,3y wty (no RAIL incl)
