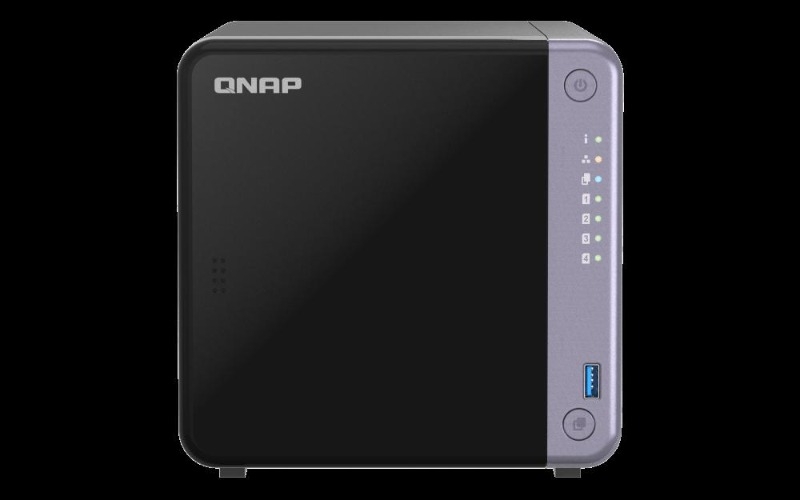

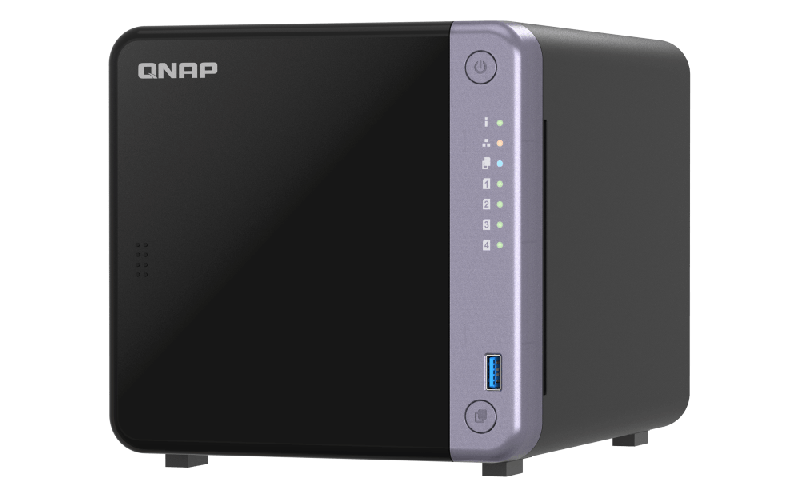

Qnap 4-Bay Nas 3.5" (0/4), ARMQC-2GHz, 4GB, 2.5GbE(2), 10GbE SFP+(1), PCIe, 2YR Wty TS-432X-4G
SKU
426970
Brand
MPN
TS-432X-4G
Warranty
Standard Manufacturer's Warranty
$1,153.00
Buy Now And Earn 1153 Reward Points!
Unlock the potential of 4-bay storage capacity and harness the speed of 10GbE with the TS-432X! This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Cost-effective yet powerful, the TS-432X streamlines workflow efficiency without exceeding your budget.
Quad-core for multitasking
Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)
High-speed 10GbE SFP+
Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.
2.5GbE is a must!
Leverage SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports to increase bandwidth and access speed.
PCIe Gen 3 expandability
Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots to the NAS for more I/O potential.
Faster USB transfer and backup
Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.
Centralized backup and snapshot protection
Easily back up different types of data and endpoints and create snapshots regularly to prevent ransomware threats.
Quad-core for multitasking
Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)
High-speed 10GbE SFP+
Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.
2.5GbE is a must!
Leverage SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports to increase bandwidth and access speed.
PCIe Gen 3 expandability
Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots to the NAS for more I/O potential.
Faster USB transfer and backup
Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.
Centralized backup and snapshot protection
Easily back up different types of data and endpoints and create snapshots regularly to prevent ransomware threats.
| CPU | AnnapurnaLabs, an Amazon company Alpine AL524, 4-core, 2.0GHz |
| Fan | 1 x 120mm, 12VDC |
| Buttons | Power, Reset, USB Auto Copy |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| PCIe Slot | 1 |
| Form Factor | Tower |
| Jumbo Frame | Yes |
| Memory Slot | 1 x SODIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Weight (Net) | 1.99 kg |
| Hot-swappable | Yes |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| LED Indicators | Power, Status, LAN, USB, HDD1-4 |
| Maximum Memory | 16 GB (1 x 16 GB) |
| System Warning | Buzzer |
| Weight (Gross) | 4.8 kg |
| CPU Architecture | 64-bit ARM |
| Encryption Engine | Yes |
| Power Supply Unit | 90W |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Wake on LAN (WOL) | Yes |
| Dimensions (HxWxD) | 165 × 170 × 226.5 mm |
| USB 3 2 Gen 1 port | 2 |
| Drive Compatibility | 3.5-inch bays: |
| Floating Point Unit | Yes |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Support ECC memory | Support ECC memory |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Slot 1: PCIe Gen 3 x4 | Slot 1: PCIe Gen 3 x4 |
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
| Kensington Security Slot | Yes |
| adapter (12VDC), 100-240VAC | adapter (12VDC), 100-240VAC |
| SSD Cache Acceleration Support | Yes |
| 2 5-inch SATA hard disk drives | 2.5-inch SATA hard disk drives |
| 3 5-inch SATA hard disk drives | 3.5-inch SATA hard disk drives |
| 2 5-inch SATA solid state drives | 2.5-inch SATA solid state drives |
| 2 5 Gigabit Ethernet Port (2 5G/1G/100M) | 2(2.5G/1G/100M) |
| Card dimensions for PCIe slot：190 x 68 9x 18 76 mm / 7 48 x 2 71 x 0 74 inches | Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches. |
Unlock the potential of 4-bay storage capacity and harness the speed of 10GbE with the TS-432X! This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Cost-effective yet powerful, the TS-432X streamlines workflow efficiency without exceeding your budget.
