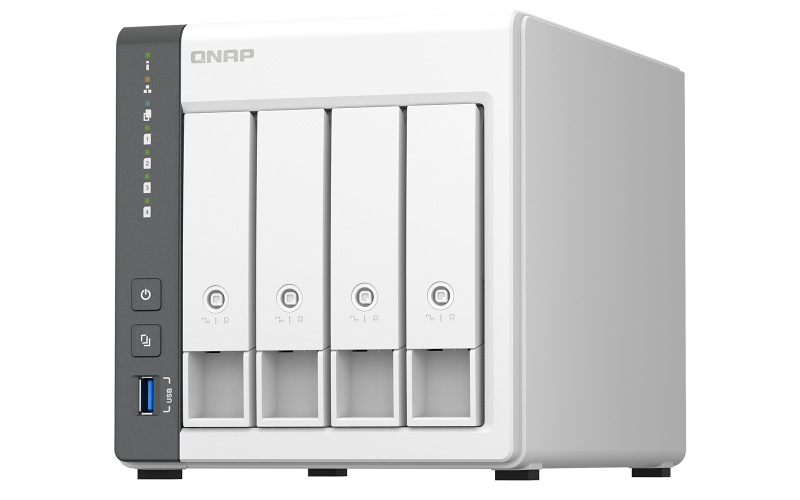

QNAP TS-433-4G, 4-bay ARM 4C 2.0GHz ; 4 x SATA 6Gb/s 3.5"/2.5"; 4GB RAM on-board; 1 x GbE; 1 x 2.5GbE ; 1 x USB3.2 Gen1 and 2 x USB2.0, 2 Years WTY
SKU
387786
Brand
MPN
TS-433-4G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$702.00
Buy Now And Earn 702 Reward Points!
Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-433. Designed with a 2.5GbE port to enhance collaboration and increase remote work productivity, the TS-433 also features rich multimedia applications and provides a complete home entertainment portal.
TS-433-4G
- Download Datasheet
- Download Datasheet
- Download Datasheet
| CPU | ARM 4-core Cortex-A55 2.0GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | |
| Encryption Engine | |
| System Memory | 4 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
|
| Maximum Memory | 4 GB on board (non-expandable) |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| Gigabit Ethernet Port (RJ45) | 1 |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 (2.5G/1G/100M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 1 |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~4 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 169 × 160 × 219 mm |
| Weight (Net) | 2.07 kg |
| Weight (Gross) | 3.5 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 90W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 8.45 W |
| Power Consumption: Operating Mode, Typical | 22.54 W
Tested with drives fully populated.
|
| Fan | 1 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 200 |
