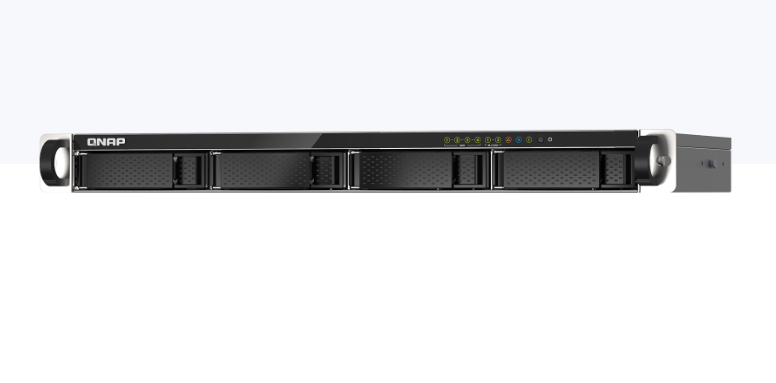

Qnap TS-435XeU-4G 4-bay, 1U Short-depth 12" Nas, Marvell Octeon TX2 CN9130 / CN9131 64-bit Quad-core 2.2 GHz, 4GB DDR4 Sodimm RAM (1 Slot, Up To 32GB),3 Yrs Wty TS-435XeU-4G
SKU
387242
Brand
MPN
TS-435XeU-4G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,405.00
Buy Now And Earn 1405 Reward Points!
TS-435XeU-4G,
4-bay 1U short-depth 12" NAS, Marvell Octeon TX2 CN9130 / CN9131 64-bit quad-core 2.2 GHz, 4GB DDR4 SODIMM RAM (1 slot, up to 32GB), 4 x 2.5"/3.5" SATA 6Gbps HDD bay, 2 x M.2 2280 NVMe PCIe Gen3 x1 SSD slots, 2 x 10GbE SFP+, 2 x 2.5GbE, USB 3.2 Gen1 + USB 2.0 ports.
4-bay 1U short-depth 12" NAS, Marvell Octeon TX2 CN9130 / CN9131 64-bit quad-core 2.2 GHz, 4GB DDR4 SODIMM RAM (1 slot, up to 32GB), 4 x 2.5"/3.5" SATA 6Gbps HDD bay, 2 x M.2 2280 NVMe PCIe Gen3 x1 SSD slots, 2 x 10GbE SFP+, 2 x 2.5GbE, USB 3.2 Gen1 + USB 2.0 ports.
| MPN | TS-435XeU-4G-US |
|---|---|
| SKU | TS-435XeU-4G |
| UPC | 0885022021550 |
| ASIN | B09Y7YR35M |
| Brand | QNAP |
| Model | TS-435XeU-4G-US |
| Notes | Diskless unit (no HDD/SSD included). Product identifiers and specs sourced from multiple manufacturer and reseller listings. |
| Power | AC 100-240 V, 100 W |
| Weight | 12.76 pounds |
| Category | Storage |
| M.2 Slots | 2 x M.2 NVMe (PCIe Gen3 x1) for cache or SSD pools |
| Processor | Marvell OCTEON TX2 CN9130 / CN9131 ARMv8 Cortex-A72 quad-core 2.2 GHz |
| USB Ports | 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Description | The QNAP TS-435XeU is a compact, short-depth 1U rackmount NAS powered by a Marvell OCTEON TX2 CN9130/CN9131 ARMv8 Cortex-A72 quad-core 2.2 GHz processor. Designed for space-constrained racks, it provides enterprise-grade connectivity and storage acceleration: 4 hot-swappable 2.5"/3.5" drive bays with SATA 6 Gb/s support and RAID (0,1,5,6,10, JBOD), two M.2 NVMe slots for cache or SSD pools, 2x 2.5GbE RJ-45 and 2x 10GbE SFP+ network ports. Ships with 4 GB DDR4 (expandable to 32 GB via SO-DIMM), runs QNAP QTS 5.x, and includes hardware features such as AES hardware encryption, 3 cooling fans, Kensington security slot, and support for business apps (backup, snapshots, containerization, cloud gateways, surveillance recording). Short-depth design (≈292 mm / 11.49 in) makes it suitable for compact racks and tight installations. Includes power cord, Ethernet cable, drive screws for 2.5" and 3.5" drives, and rack-mount ears/handles. |
| Form Factor | 1U rackmount, short-depth |
| Manufacturer | QNAP |
| Sub-Category | Network Attached Storage (NAS) |
| Key Use Cases | File sharing and collaboration, backup (including Google Workspace & Microsoft 365 with Boxafe), VM/container hosting, surveillance recording, SSD cache acceleration |
| Product Title | QNAP TS-435XeU-4G-US 4-Bay Short-Depth 1U Rackmount NAS (4GB DDR4, Dual 10GbE SFP+, Dual 2.5GbE, 2x M.2 NVMe) (Diskless) |
| Number of Bays | 4 (hot-swappable, 2.5"/3.5") |
| SATA Interface | SATA III (6 Gb/s) |
| Expansion Slots | 1 x SO-DIMM (memory), 2 x M.2 2280 |
| Material / Color | Metal enclosure / Black |
| Operating System | QNAP QTS (QTS 5.x referenced) |
| Hardware Features | AES hardware encryption acceleration, 3 cooling fans, Kensington security slot, reset button |
| Dimensions (WxDxH) | 16.93 x 11.5 x 1.69 inches (approx. 430 x 292 x 43 mm) |
| Memory (Installed) | 4 GB DDR4 |
| Network Interfaces | 2 x 2.5GbE RJ-45, 2 x 10GbE SFP+ |
| Depth (short-depth) | 292 mm / 11.49 inches |
| Supported Protocols | TCP/IP, PPTP, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB, DDNS |
| Included Accessories | Power cord, Ethernet cable, screws for 3.5" and 2.5" drives (counts listed by manufacturer), 2 rack-mount hanging ears and handles |
| Drive Types Supported | 3.5" HDD, 2.5" HDD/SSD, M.2 NVMe SSD (2280) |
| Manufacturer Warranty | 3 years |
| RAID Levels Supported | RAID 0, 1, 5, 6, 10, JBOD |
| Memory (Max Supported) | Up to 32 GB DDR4 (SO-DIMM) |
QNAP TS-435XeU-4G 4-bay, 1U short-depth 12" NAS, Marvell Octeon TX2 CN9130 / CN9131 64-bit quad-core 2.2 GHz, 4GB DDR4 SODIMM RAM (1 slot, up to 32GB),3 yrs WTY
