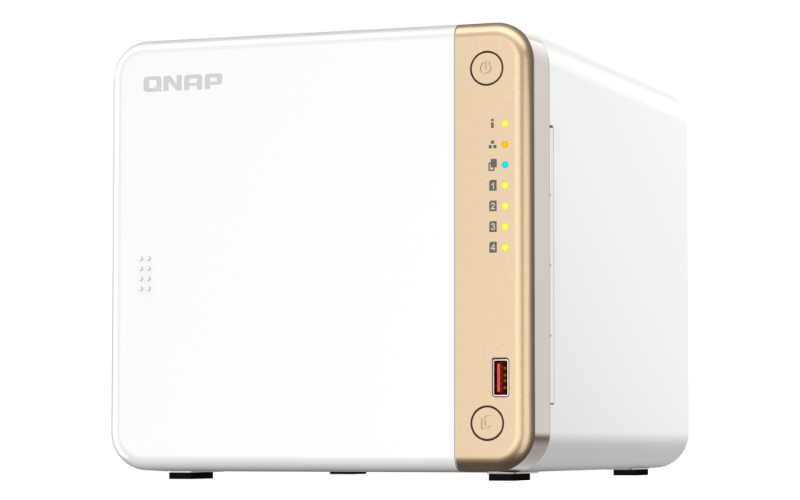

Qnap Ts-462-4G, 4-Bay Desktop NAS,Intel Celeron N4505 Dual-core, 4 Gb DDR4 Onboard Not Expandable, 4 X 3.5"/2.5" Sata 6Gb/s Drive Bays, 2 X M.2 2280 PCIe, 2 Yrs TS-462-4G
SKU
402613
Brand
MPN
TS-462-4G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $951.00 Regular Price $1,093.00
Buy Now And Earn 951 Reward Points!
The TS-462-4G, 4-Bay desktop NAS, Intel® Celeron® N4505 dual-core, 4 GB DDR4 onboard not expandable, 4 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x M.2 2280 PCIe Gen 3 x1 slots, 1 x 2.5GbE, 1 x PCIe Gen3 x2 slot, 1 x HDMI 2.0, 2 x USB 3.2 Gen 2 Type-A + 2 x USB 2.0
| MPN | TS-462-4G-US |
|---|---|
| SKU | TS-462-4G |
| UPC | 885022022380 |
| USB | 2 x USB 3.2 Gen2 Type-A (10 Gb/s), 2 x USB 2.0 Type-A (manufacturer listings: multiple USB 3.2 Gen2 ports and USB 2.0) |
| HDMI | 1 x HDMI 2.0 (supports up to 4K @60Hz) |
| Type | Desktop NAS / Enclosure (diskless) |
| Brand | QNAP |
| Model | TS-462-4G |
| Weight | 4.9–5.0 lb (approx. 4.98 lb / 2.2 kg) |
| Cooling | 1 x 120 mm fan |
| Category | Storage |
| Ethernet | 1 x RJ45 2.5GbE (2.5G/1G/100M) |
| Features | Qtier auto-tiering, Edge TPU support (optional) for AI photo recognition, QuMagie, QNAP Hybrid Backup Sync, MyQNAPCloud remote access, multimedia/file management apps, expandability via PCIe cards (10GbE, Wi‑Fi, QM2), HDMI output for direct media playback |
| Warranty | 1 Year Limited (manufacturer listings vary) |
| M.2 Slots | 2 x M.2 2280 PCIe 3.0 x1 (NVMe) for cache or SSD pools / Edge TPU |
| Other I/O | Reset, Kensington security slot, power input |
| Processor | Intel Celeron N4505 (dual-core, 2.0 GHz, burst up to 2.9 GHz) |
| Drive Bays | 4 x 3.5"/2.5" SATA III (hot-swap not specified) |
| Description | The QNAP TS-462-4G is a compact 4-bay desktop NAS designed for home and small-office use. Powered by an Intel Celeron N4505 dual-core processor (2.0 GHz, burst up to 2.9 GHz) with 4GB DDR4 memory (expandable to 16GB), it supports up to four 3.5"/2.5" SATA drives plus two M.2 2280 PCIe NVMe slots for cache or SSD pools. Built-in 2.5GbE networking, HDMI 2.0 (4K@60Hz) output, a PCIe 3.0 x2 expansion slot, multiple USB Type-A ports, and support for Qtier, Edge TPU (optional) and QNAP apps (QuMagie, Hybrid Backup Sync, MyQNAPCloud) make the TS-462 flexible for multimedia streaming, backups and expandable networking or wireless upgrades. Diskless system; includes power supply, power cord, Ethernet cable, drive screws and quick installation guide. |
| PSU Voltage | 100-240 VAC, 50-60 Hz |
| Max Capacity | 88 TB (raw) |
| Memory Slots | 2 (user-replaceable modules; 4 GB preinstalled) |
| Power Supply | External 90W power adapter |
| RAID Support | RAID 0, 1, 5, 6, 10, JBOD, Single |
| Sub-Category | Network Attached Storage (NAS) |
| HDD Interface | 4 x SATA III |
| Product Title | QNAP TS-462-4G 4-Bay Desktop NAS (Intel Celeron N4505, 4GB DDR4, 2.5GbE, HDMI 2.0) |
| Number of Bays | 4 |
| Installed Memory | 4 GB DDR4 |
| Country of Origin | Taiwan |
| Power Consumption | Typical: 32.4 W; HDD sleep/standby: 20.33 W |
| Operating Humidity | 5 to 95% (non-condensing) |
| Drive Compatibility | 3.5" SATA HDD, 2.5" SATA SSD, M.2 2280 PCIe NVMe SSDs |
| Max Memory Capacity | 16 GB |
| PCIe Expansion Slot | 1 x PCIe 3.0 x2 (for 2.5/5/10GbE NICs, Wi‑Fi 6 adapters, QM2 cards, etc.) |
| Storage Temperature | -20 to 70°C / -4 to 158°F |
| Included Accessories | Ethernet cable, power cord, external AC adapter (power brick), 16 x screws for 3.5" HDDs, 12 x screws for 2.5" drives, quick installation guide |
| Operating Temperature | 0 to 40°C / 32 to 104°F |
| Dimensions (W x D x H) | 8.9 x 6.69 x 6.61 in (22.6 x 17.0 x 16.8 cm) |
QNAP TS-462-4G, 4-Bay desktop NAS,Intel Celeron N4505 dual-core, 4 GB DDR4 onboard not expandable, 4 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x M.2 2280 PCIe, 2 Yrs
