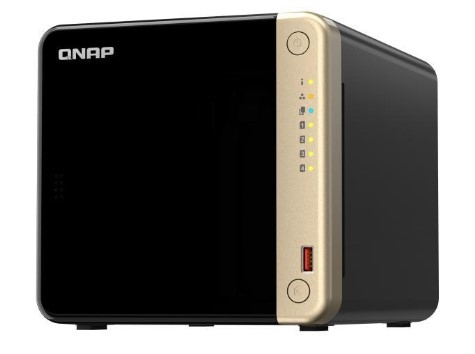

Qnap Ts-464-8G, 4-Bay Desktop Nas, Intel® Celeron® N5105/N5095 Quad-core, 8GB, 2x2.5GbE, 2xM.2 2280 PCIe, 2xUSB2.0, 2xUSB3.2,1xHDMI,3Y Wty TS-464-8G
SKU
393630
Brand
MPN
TS-464-8G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,386.00
Buy Now And Earn 1386 Reward Points!
QNAP TS-464-8G, 4-Bay desktop NAS, Intel® Celeron® N5105/N5095 quad-core, 4GB DDR4 SODIMM RAM (2 x DDR4 SODIMM slots, max 16GB), 4 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x M.2 2280 PCIe Gen 3 x1 slots, 2 x 2.5GbE, 1 x HDMI 2.0, 1 x PCIe Gen3 x2 slot, 2 x USB 3.2 Gen 2 Type-A + 2 x USB 2.0
| GPU | Intel UHD Graphics |
|---|---|
| SKU | TS-464-8G |
| USB | USB 2.0: 2 x Type-A USB 3.2 Gen 2: 2 x Type-A (10 Gbps) |
| PCIe | Slot: 1 x PCIe Gen 3 x2 (for network/SSD cache/Edge TPU expansion cards) |
| RAID | JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Brand | QNAP |
| Model | TS-464-8G-US |
| Power | Adapter: 90 W AC adapter Standby / HDD Sleep: 21.618 W Typical Power Consumption (Operating, tested fully populated): 40.536 W |
| Memory | Type: DDR4 SO-DIMM Slots: 2 (1 x populated with 8 GB) Maximum: 16 GB (2 x SO-DIMM) Installed: 8 GB DDR4 (user-replaceable) |
| Series | TS-464 |
| Weight | Net: Approximately 4.9 - 4.98 lb (2.2 kg) Package Weight: Approximately 7.86 lb (reported) |
| Cooling | 1 x 120 mm fan |
| Network | Ports: [ "2 x RJ45 2.5GbE (2.5G/1G/100M)" ] Features: Port trunking (link aggregation), failover Expansion Options: Optional 5GbE/10GbE via PCIe expansion card |
| Storage | Expansion: Expandable via QNAP expansion units (example: TL‑D1600S reported to expand up to ~330 TB) M.2 Slots: 2 x M.2 2280 PCIe Gen 3 (per-slot x1) for NVMe SSD (cache or pools) Drive Bays: 4 x 3.5" / 2.5" SATA III 6 Gb/s (hot-swappable) Supported Drive Types: 3.5-inch SATA HDD, 2.5-inch SATA SSD, NVMe M.2 SSD (PCIe) Maximum Native Capacity: Supports up to 72 TB with 4 x 24 TB drives (RAID 5) (vendor specification) |
| Warranty | Limited 3-year hardware warranty (vendor) |
| Item Type | Network Attached Storage (NAS) enclosure (diskless) |
| Processor | Cores: 4-core / 4-thread Model: Intel Celeron N5095 Features: Intel AES-NI encryption Base / Burst: 2.0 GHz base, burst up to 2.9 GHz |
| Dimensions | Depth: 8.9 in Width: 6.69 in Height: 6.61 - 6.5 in (reported variants: 6.5 x 6.69 x 8.92 in) Metric (reported): 22.6 x 16.99 x 16.79 cm (approx.) |
| Description | The QNAP TS-464-8G is a compact, high-performance 4-bay desktop NAS powered by an Intel Celeron N5095 quad-core processor (burst up to 2.9 GHz) with Intel UHD Graphics and Intel AES-NI 256-bit hardware encryption. Ships with 8 GB DDR4 (user-replaceable) and supports up to 16 GB (2 x SO-DIMM). The TS-464 offers dual 2.5GbE RJ45 ports with port trunking/failover, a PCIe Gen3 x2 expansion slot for 10GbE/5GbE or QM2/Edge TPU cards, two M.2 2280 PCIe Gen3 slots for NVMe SSDs (cache or pools), two USB 3.2 Gen 2 (10Gbps) Type-A ports, two USB 2.0 ports, and HDMI 2.1 output (up to 4K@60Hz). It supports SATA III 6Gb/s 3.5"/2.5" drives in 4 hot-swappable bays with RAID 0/1/5/6/10 and JBOD, extensive backup and virtualization apps via QTS (also compatible with QuTS hero), SSD caching/Qtier, and optional storage expansion. Includes power adapter, Ethernet cable and drive-mounting screws. Backed by a 3-year limited warranty. |
| Box Contents | NAS enclosure (diskless), power cable/adapter, Ethernet cable, drive screws |
| Surveillance | Compatible with thousands of ONVIF/network cameras; vendor notes compatibility with 6,000+ IP cameras from 190+ brands (per vendor data) |
| Video Output | HDMI: 1 x HDMI 2.1 (up to 4096 x 2160 @ 60 Hz) |
| Product Title | QNAP TS-464-8G 4-Bay 2.5GbE NAS Enclosure (8GB) |
| Additional Notes | Ships diskless (no HDD/SSD included) Supports QM2 cards, Edge TPU modules, and various QNAP expansion/network cards via PCIe Supports 4K HDMI output and real-time hardware-accelerated transcoding Reported maximum concurrent CIFS connections (with max memory): up to 1500 (vendor data) |
| Included Accessories | 90 W AC adapter (power cord) Ethernet cable 12 x flat head screws for 3.5" HDDs 12 x flat head screws for 2.5" HDDs |
| Operating Environment | Operating Humidity: 5 - 95% RH non-condensing Storage Temperature: -20 - 70 °C (-4 - 158 °F) Operating Temperature: 0 - 40 °C (32 - 104 °F) |
| Security & Encryption | Encryption: 256-bit AES hardware encryption (AES-NI) Security Features: Kensington security slot, system buzzer, support for 2-step verification and security/permission controls |
| Networking & Protocols | SMB/CIFS, AFP, NFS v3/v4, WebDAV, FTP/SFTP, iSCSI, IPv4/IPv6, DDNS, VPN, WireGuard, etc. (vendor-listed network services) |
| Certifications / Standards | Supports standard network/security protocols; vendor lists AES-NI, FIPS/TLS support (per product literature) |
| Operating System / Software | OS: QTS (QTS 5.x); also supports QuTS hero (ZFS-based) Applications & Features: Backup, virtualization (Virtualization Station, Container Station), SSD cache, Qtier, multimedia/transcoding, multi-cloud backup, MyQNAPCloud, surveillance (QVR), snapshot, iSCSI, extensive QNAP apps |
QNAP TS-464-8G, 4-Bay desktop NAS, Intel® Celeron® N5105/N5095 quad-core, 8GB, 2x2.5GbE, 2xM.2 2280 PCIe, 2xUSB2.0, 2xUSB3.2,1xHDMI,3Y WTY
