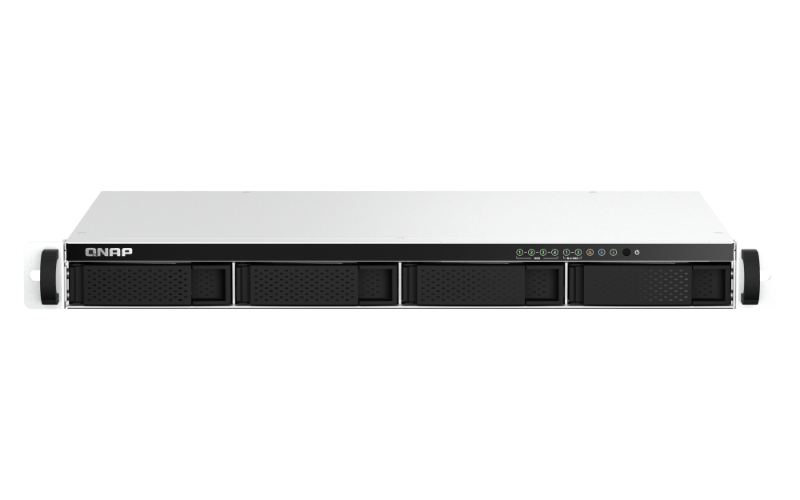

Qnap TS-464eU-8G, 4-bay 1U Short Depth 12" Rackmount Nas, Intel Celeron N5105/N5095 Quad-core, Burst Up To 2.9 GHz; 8GB, 2x2.5GbE,2xm.2 2280, 3Y Wty ( No Rail ) TS-464eU-8G
SKU
395374
Brand
MPN
TS-464eU-8G
Warranty
Standard Manufacturer's Warranty
$1,721.00
Buy Now And Earn 1721 Reward Points!
1U 4-bay short depth 12" rackmount NAS, Intel® Celeron® N5105/N5095 quad-core, 8GB RAM onboard (not expandable), 4 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x M.2 PCIe Gen3 x1 slots, 2 x 2.5GbE, 2 x USB 3.2 Gen2 Type-A + 2 x USB 2.0, 1 x 250W PSU
| SKU | TS-464eU-8G |
|---|---|
| UPC | 885022024384 |
| HDMI | 1 x HDMI 1.4b |
| Brand | QNAP |
| Color | Black |
| Model | TS-464eU |
| Memory | 8 GB onboard (non-expandable) |
| Buttons | Power, Reset |
| Cooling | 3 x 40mm fans |
| Features | iSCSI support, SSD cache acceleration, RAID expansion & migration, Snapshot, Snapshot Replica, Virtualization support, Smart Fan, Dual-boot OS protection, Built-in buzzer, Disk S.M.A.R.T., Disk standby |
| Flash/OS | QTS / QuTS hero (product listings include QTS 5.0.1 and QTS 5.2.8 / QuTS h5.2.8) |
| Warranty | Limited 3-year warranty |
| CPU Cores | 4 |
| M.2 Slots | 2 x M.2 2280 PCIe Gen3 x1 |
| Processor | Intel Celeron N5095 / N5105 quad-core (burst up to 2.9 GHz) |
| USB Ports | 2 x USB 3.2 Gen2 Type-A (10 Gbps), 2 x USB 2.0 Type-A |
| Drive Bays | 4 x 3.5"/2.5" SATA 6Gb/s (hot-swap) |
| PCIe Slots | 1 PCIe slot (internal expansion) |
| Description | The QNAP TS-464eU is a space-efficient 1U short-depth rackmount NAS designed for small cabinets and cabling-dense environments. Powered by an Intel Celeron N5095/N5105 quad-core processor (burst up to 2.9 GHz) and 8 GB onboard RAM (non-expandable), it provides 4 x 3.5"/2.5" SATA 6Gb/s drive bays plus 2 x M.2 2280 PCIe Gen3 x1 slots for SSD cache or M.2 storage. Connectivity includes dual 2.5GbE LAN ports, HDMI 1.4b, 2 x USB 3.2 Gen2 Type-A, and 2 x USB 2.0 Type-A. The TS-464eU runs QNAP QTS / QuTS hero, supports RAID 0/1/5/6/10 and JBOD, hardware AES-NI encryption, and features dual-boot flash (4 GB). Its compact 1U chassis (1.7" x 19" x ~12.7") with 3 x 40mm fans and a single internal 100W PSU is engineered for efficient operation and quiet cooling. Includes essential accessories and a limited 3-year warranty. |
| Form Factor | 1U rackmount, short depth |
| RAID Levels | JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Flash Memory | 4 GB (dual-boot OS protection) |
| Power Supply | Internal 100W PSU, AC 100-240V |
| Weight (Net) | 9.59 lbs |
| Network Ports | 2 x 2.5 Gigabit Ethernet (RJ-45) |
| Product Title | QNAP TS-464eU 1U 4-Bay Short-Depth Rackmount NAS (8GB) |
| LED Indicators | Power/Status, LAN, USB, HDD1-4, M.2 SSD 1-2 |
| Maximum Memory | 8 GB |
| Weight (Gross) | 13.03 lbs |
| Relative Humidity | 5 - 95% RH (non-condensing) |
| Drive Compatibility | 3.5" SATA HDDs and 2.5" SATA SSDs |
| Hardware Encryption | AES-NI (256-bit AES support listed) |
| Height (Rack Units) | 1U |
| Storage Temperature | -20 - 70 °C (-4 - 158 °F) |
| Hardware Transcoding | Built-in hardware transcoding (listed in product features) |
| Included Accessories | Ethernet cable x1, Power cord x1, Flat head screws (3.5" HDD) x16, Flat head screws (2.5" HDD) x12, Quick installation guide, Hanger x2, Holder x2 |
| Operating Temperature | 0 - 40 °C (32 - 104 °F) |
| Dimensions (H x W x D) | 1.7 in x 19 in x 12.65-12.7 in |
| Processor Architecture | 64-bit x86 |
| Manufacturer Part Number | TS-464EU-8G-US |
| Max Concurrent Connections | Up to 1500 (with max memory) |
| Storage Controller Interface | Serial ATA-600 (SATA III) |
| Supported Protocols/Services | AFP, CIFS/SMB, NFS v3/v4, WebDAV, FTP, SFTP, TFTP, DDNS, IPSec, L2TP, PPTP, WireGuard, QuFTP |
| Optional Accessories (examples) | FAN-4CM-R01, PWR-PSU-100W-DT01, RAM modules, HS-M2SSD-06 (listed on vendor pages) |
| Power Consumption (Standby/HDD Sleep) | 21.105 W |
| Supported Operating Systems (clients) | Windows, macOS, Linux, various server OS compatibility listed by vendor |
| Power Consumption (Operating, typical) | 35.297 W (tested with drives fully populated) |
QNAP TS-464eU-8G, 4-bay 1U short depth 12" rackmount NAS, Intel Celeron N5105/N5095 quad-core, burst up to 2.9 GHz; 8GB, 2x2.5GbE,2xm.2 2280, 3Y wty ( No Rail )
