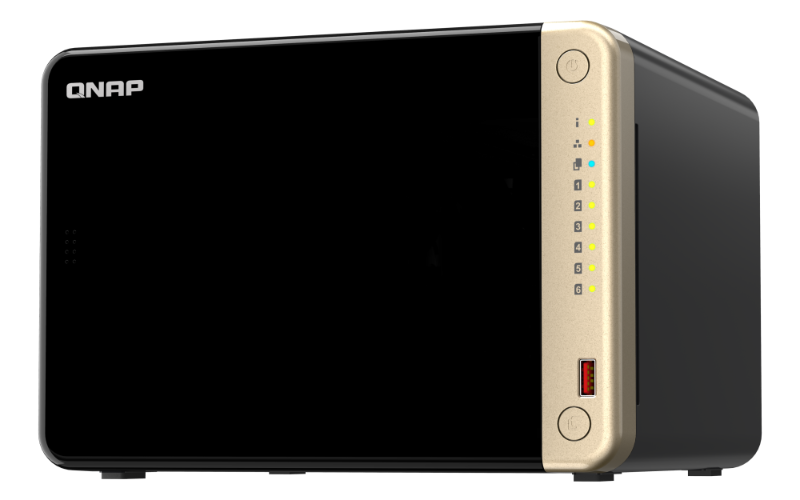

Qnap Ts-664-8G, 6-Bay Desktop Nas, Intel® Celeron® N5105/N5095 Quad-core, 8GB DDR4 Sodimm RAM (2 X DDR4 Sodimm Slots, Max 16GB), 3 Yrs Wty TS-664-8G
SKU
396526
Brand
MPN
TS-664-8G
Warranty
Standard Manufacturer's Warranty
$1,721.00
Buy Now And Earn 1721 Reward Points!
QNAP TS-664-8G, 6-Bay desktop NAS, Intel® Celeron® N5105/N5095 quad-core, 8GB DDR4 SODIMM RAM (2 x DDR4 SODIMM slots, max 16GB), 6 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x M.2 2280 PCIe Gen 3 x1 slots, 2 x 2.5GbE, 1 x HDMI 2.0, 1 x PCIe Gen3 x2 slot, 2 x USB 3.2 Gen 2 Type-A + 2 x USB 2.0
| SKU | TS-664-8G-US |
|---|---|
| UPC | 885022024667 |
| HDMI | HDMI 2.1, supports up to 4096 x 2160 @ 60Hz |
| Brand | QNAP |
| Color | Black |
| Model | TS-664-8G |
| Notes | Product is sold as a diskless enclosure. Sources list both Intel Celeron N5105 and N5095 for this model; memory listings vary between 4GB/8GB installed and up to 16GB supported — SKU TS-664-8G indicates an 8GB configuration in multiple listings. |
| Series | TS-664 |
| Network | 2 x 2.5GbE (2.5G/1G/100M) ports |
| Category | Storage |
| Warranty | Manufacturer warranty (varies by seller) - one listing referenced minimum 1 year and another referenced 3 year |
| M.2 Slots | 2 x M.2 PCIe Gen3 x2 NVMe SSD slots (for cache acceleration or SSD storage pools) |
| PCIe Slot | 1 x PCIe Gen3 x2 |
| Processor | Intel Celeron N5105 / N5095 (quad-core) |
| USB Ports | USB 3.2 Gen 2 (10Gbps) ports and USB 2.0 ports (manufacturer listings reference 2 x USB 3.2 Gen 2 and 2 x USB 2.0) |
| Drive Bays | 6 x 3.5-inch SATA 6 Gb/s (supports drive installation for up to 6 drives) |
| Encryption | Integrated Intel AES-NI hardware encryption engine |
| Description | The QNAP TS-664-8G is a high-performance 6-bay desktop NAS enclosure designed for small business and advanced home use. Powered by an Intel Celeron N5105/N5095 quad-core processor (burst up to 2.9 GHz) and featuring dual 2.5GbE ports, dual M.2 PCIe Gen3 x2 NVMe slots, and a PCIe Gen3 x2 expansion slot, the TS-664 delivers fast file transfers, flexible caching/SSD pool options and expansion capability. The unit ships diskless and includes HDMI 2.1 output (up to 4096 x 2160 @ 60Hz), integrated Intel AES-NI encryption, SATA 6 Gb/s drive bays, and multiple USB ports. Base memory is listed as 8GB DDR4 (on-board) with manufacturer support up to 16GB. Ideal for media streaming, backups, virtualization and secure file sharing. |
| Form Factor | Desktop (6-bay enclosure) |
| Item Weight | 6.48 pounds |
| Memory Type | DDR4 |
| Manufacturer | QNAP |
| Memory Notes | Manufacturer lists support up to 16 GB DDR4 |
| Sub-Category | Network Attached Storage (NAS) |
| Product Title | QNAP TS-664-8G 6-Bay Desktop NAS (Diskless) - Intel Celeron, Dual 2.5GbE, Dual M.2 NVMe |
| Alternate MPNs | TS6648GUS |
| Max Raw Capacity | 108 TB |
| Special Features | Hot-swappable drive bays Hardware AES-NI encryption Dual M.2 NVMe support PCIe expansion |
| What's in the Box | TS-664 unit Ethernet cable Power cord / AC adapter Flat head screws (for 2.5" HDD) x18 Flat head screws (for 3.5" HDD) x18 Quick installation guide (QIG) |
| Compatible Devices | Servers CPUs Laptops Desktops |
| Memory (Installed) | 8 GB DDR4 (on-board) -- model SKU indicates 8GB |
| Product Dimensions | 10 x 13.5 x 15.25 inches |
| Drive Configuration | Diskless (enclosure only) |
| Hard Disk Form Factor | 3.5-inch (SATA 6 Gb/s) |
| RAID Levels Supported | 0 1 5 6 10 50 JBOD |
| Processor Cores/Threads | 4 cores / 4 threads |
| Processor Max Frequency | Up to 2.9 GHz (burst) |
| Manufacturer Part Number | TS-664-8G-US |
| Maximum Memory Supported | 16 GB (manufacturer-listed) |
| Assembled Product Weight (listed) | 16 lbs (listed by one source) |
QNAP TS-664-8G, 6-Bay desktop NAS, Intel® Celeron® N5105/N5095 quad-core, 8GB DDR4 SODIMM RAM (2 x DDR4 SODIMM slots, max 16GB), 3 yrs WTY
