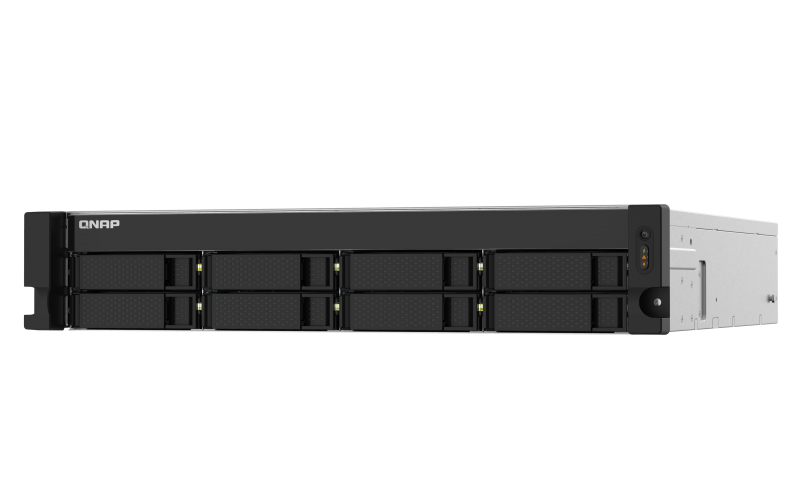

Qnap Ts-832Pxu-4G 8-Bay 2U Rackmount Nas Cortex-A57 Quad-core 1.7GHz Cpu, 4GB DDR4 Udimm RAM(max 16GB), Sata 6Gb/s,2x 2.5Gbe,2x 10GbE SFP+,3y Wty (no Rail Incl) TS-832PXU-4G
SKU
389984
Brand
MPN
TS-832PXU-4G
Warranty
Standard Manufacturer's Warranty
$2,097.00
Buy Now And Earn 2097 Reward Points!
QNAP TS-832PXU-4G 8-Bay rackmount NAS Cortex-A57 quad-core 1.7GHz CPU, 4GB DDR4 UDIMM RAM (max 16GB), SATA 6Gb/s,2 x 2.5Gbe,2 x 10GbE SFP+,3y wty (no RAIL incl)
| SKU | TS-832PXU-4G |
|---|---|
| UPC | 885022020171 |
| PCIe | 1 x PCIe Gen 2 x2 expansion slot |
| Brand | QNAP |
| Model | TS-832PXU-4G |
| Notes | Some listings reference model suffixes (e.g., TS-832PXU-4G-US) and occasional listing errors (e.g., references to 12 bays or DDR3 in titles); consolidated spec values above reflect the most consistent information across sources. PCIe slot may be used for network expansion cards, M.2 SSD cache adapters (via compatible adapter), or wireless expansion as supported by QNAP. |
| Memory | 4 GB DDR4 (UDIMM) |
| Weight | 20.8 lb (approx.) |
| Category | Storage |
| Features | SSD cache support Qtier auto-tiering SSD over-provisioning Hybrid Backup Sync (HBS) Qsync, Qsirch, QuMagie, Qfiling Boxafe (Google Workspace and Microsoft 365 backup) Snapshots for data protection Hardware-based AES encryption (vendor-specified) Link aggregation, failover and load balancing Supports QNAP TR RAID expansion enclosures and TL JBOD |
| Material | Aluminum |
| Warranty | 2 Year (limited warranty as listed in multiple sources) |
| Processor | AnnapurnaLabs Alpine AL-324 (AL-324) 64-bit ARM Cortex-A57 quad-core |
| USB Ports | 4 x USB 3.2 Gen 1 Type-A |
| Drive Bays | 8 |
| Description | The QNAP TS-832PXU-4G is an 8-bay 2U rackmount NAS designed for SMB and IT environments that require high-bandwidth shared storage. It is powered by an AnnapurnaLabs Alpine AL-324 64-bit ARM Cortex-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (user-expandable up to 16GB) and supports 2.5"/3.5" SATA 6Gb/s drives. Network connectivity includes 2 x 10GbE SFP+ and 2 x 2.5GbE RJ45 ports; a PCIe Gen2 x2 slot enables additional network, SSD cache or wireless expansion. The TS-832PXU-4G runs QNAP's QTS platform and includes enterprise features such as SSD cache/Qtier auto-tiering, Hybrid Backup Sync, snapshot protection, Boxafe (Google Workspace / Microsoft 365 backup), and hardware-based AES encryption. Rack-ready with USB 3.2 Gen1 ports, multiple RAID level support, and expansion enclosure compatibility, it is tailored for high-speed file access, backup/restore and hybrid-cloud workflows. |
| Form Factor | 2U rackmount |
| RAID Levels | RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID 50 RAID 60 JBOD Single Hot Spare |
| Rack Height | 2U |
| Flash Memory | 512 MB (flash) |
| Power Supply | 250 W (maximum PSU wattage listed) |
| Sub-Category | Network Attached Storage (NAS) |
| Network Ports | 10GbE SFP+: 2 2.5GbE RJ45: 2 |
| Product Title | QNAP TS-832PXU-4G 8-Bay 2U Rackmount NAS — Alpine AL-324 1.7GHz Quad-Core, 4GB DDR4, Dual 10GbE SFP+ & Dual 2.5GbE |
| TAA Compliant | Yes |
| Drive Interface | SATA III (6 Gb/s) |
| Processor Cores | 4 |
| Processor Speed | 1.7 GHz |
| Operating System | QTS (QNAP NAS operating system; sources reference QTS 4.4.3 and features noted in QTS 5.1.0) |
| Package Contents | TS-832PXU-4G NAS unit Ethernet cable Power cord Flat head screws for 3.5" HDD (qty as supplied) Flat head screws for 2.5" HDD (qty as supplied) Quick Installation Guide |
| Country of Origin | Taiwan |
| Dimensions (WxDxH) | 19" x 21" x 3.5" (approx.) |
| Ethernet Technology | 10 Gigabit Ethernet 2.5 Gigabit Ethernet |
| Supported Protocols | TCP/IP IPv4 / IPv6 DHCP HTTP / HTTPS SMB/CIFS AFP NFS iSCSI FTP / SFTP / TFTP SSH SNMP Rsync WebDAV SMTP UPnP |
| Memory Expandable To | 16 GB |
| Supported Drive Sizes | 2.5" and 3.5" |
| USB Connectivity Speed | Up to 5 Gb/s (USB 3.2 Gen 1) |
| Manufacturer Part Number | TS-832PXU-4G-US |
| Max Drives with Expansion | Scalable via expansion enclosures (vendor notes up to 22 drives with TR/TL expansion) |
QNAP TS-832PXU-4G 8-Bay 2U rackmount NAS Cortex-A57 quad-core 1.7GHz CPU, 4GB DDR4 UDIMM RAM(max 16GB), SATA 6Gb/s,2x 2.5Gbe,2x 10GbE SFP+,3y wty (no RAIL incl)
