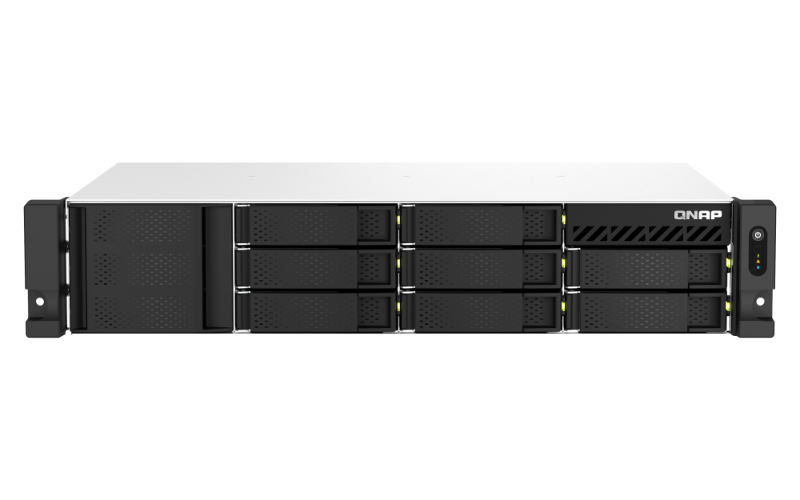

Qnap TS-873AeU-4G, 8-bay Short-depth Rackmount Nas, AMD Ryzen V1000 Series V1500B 4C/8T 2.2GHz, 4GB DDR4 Sodimm Ram, 3y Wty (no Rail) TS-873AeU-4G
SKU
406013
Brand
MPN
TS-873AeU-4G
Warranty
Standard Manufacturer's Warranty
$2,820.00
Buy Now And Earn 2820 Reward Points!
QNAP TS-873AeU-4G, 8-bay short-depth rackmount NAS, AMD Ryzen V1000 series V1500B 4C/8T 2.2GHz, 4GB DDR4 SODIMM RAM (max. 64GB total, optional ECC RAM support), 2 x 2.5GbE LAN, M.2 2280 NVMe/SATA SSD( PCIe Gen3x1), optional 10GbE expansion via PCIe, 1 x PCIe 3.0 x 8 slot, USB 3.2 Gen2 Type-C & Type-A 250W PSU
| CPU | AMD Ryzen Embedded V1500B |
|---|---|
| SKU | TS-873AeU-4G |
| UPC | 885022023424 |
| Brand | QNAP |
| Model | TS-873AEU-4G |
| Notes | Short-depth design (approx. 11.7"/297.4 mm depth) for compact racks and AV cabinets. M.2 slots are PCIe Gen3 x1; built-in M.2 slots do not support hot-swapping. QuTS hero requires more memory for optimal features (see vendor guidance). Product is shipped diskless. |
| Cooling | 3 x 60 mm fans |
| Category | Storage |
| Warranty | Limited 3-year warranty (extensions available) |
| CPU Speed | 2.2 GHz |
| M.2 Slots | 2 x M.2 2280 PCIe Gen3 x1 (for NVMe SSD caching or Edge TPU modules) |
| Protocols | SMB/CIFS, AFP, NFS, FTP, FTPS, SFTP, iSCSI, WebDAV, DHCP, DNS, LDAP, SNMP, HTTPS, SSH, Telnet, SSL/TLS, PPTP, IPSec, TFTP, DDNS, IPv4/IPv6, and others |
| USB Ports | 4 x USB 3.2 Gen 2 (total) — reported as 2 x Type-A and 2 x Type-C |
| Drive Bays | 8 x hot-swappable 3.5" / 2.5" SATA bays |
| Description | The QNAP TS-873AEU-4G is a compact 2U short-depth rackmount NAS designed for SMB and remote/edge deployments that require high network throughput and expandability. Powered by an AMD Ryzen Embedded V1500B quad-core/8-thread 2.2 GHz processor and 4 GB DDR4 SODIMM (user-replaceable, upgradable to 64 GB), the TS-873AEU delivers strong performance for virtual machines, multi-user access, and intensive file services. The chassis supports 8 hot-swappable 3.5"/2.5" SATA drives plus two M.2 2280 PCIe Gen3 x1 slots for NVMe SSD caching or AI/Edge TPU add-on modules. Dual built-in 2.5GbE RJ45 ports accelerate file transfers over existing Cat5e cabling and additional networking (10/25GbE) can be added via the PCIe Gen3 x8 slot. Comprehensive QNAP software features include QTS/QuTS hero OS support, block-based snapshots, Hybrid Backup Sync, SaaS backup for Google Workspace and Microsoft 365, and security functions (AES-NI, 256-bit AES, QuFirewall, QVPN, Security Counselor, Malware Remover). |
| Form Factor | 2U Short-depth Rackmount |
| Wake on LAN | Supported (only via 2.5GbE port) |
| Flash Memory | 5 GB (dual-boot OS protection) |
| Memory Slots | 2 x SODIMM DDR4 (supports ECC) |
| Power Supply | Single 250W PSU (100-240 VAC, 50/60 Hz); optional dual-redundant 300W available |
| Sub-Category | Network Attached Storage (NAS) |
| Weight (Net) | 7.6 kg (16.8 lb) |
| Hot-swappable | Yes (drive bays) |
| Product Title | QNAP TS-873AEU-4G 8-Bay 2U Short-Depth Rackmount NAS (AMD Ryzen V1500B, 4GB DDR4, Dual 2.5GbE) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| PCIe Expansion | 1 x PCIe Gen3 x8 slot (for QM2, 10/25GbE NICs, Fibre Channel, GPU, etc.) |
| Package Weight | Approximately 9.47 kg (20.86 lb) / as reported by some listings |
| GPU/Transcoding | Optional via PCIe graphics card (GPU passthrough supported via PCIe) |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | AES-NI (hardware-accelerated encryption) |
| Relative Humidity | 5 - 95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) |
| Security Features | 256-bit AES encryption, AES-NI acceleration, FIPS 140-2 support (listed), myQNAPcloud, QuFirewall, QVPN, Security Counselor, Malware Remover, TeamViewer remote access |
| Network Interfaces | 2 x RJ45 2.5GbE (2.5G/1G/100M; also support 10M); additional 5/10/25GbE via PCIe adapter |
| CPU Cores / Threads | 4 cores / 8 threads |
| Storage Temperature | -20 - 70 °C (-4 - 158 °F) |
| Operating Temperature | 0 - 40 °C (32 - 104 °F) |
| RAID Levels Supported | 0, 1, 5, 6, 10, 50, 60 |
| Supported Drive Types | 3.5" SATA HDD (SATA II/III), 2.5" SATA HDD/SSD, NVMe SSD (M.2 for cache) |
| Dimensions (H x W x D) | 3.5 x 18.98 x 11.71 inches (89 x 482 x 297.4 mm) |
| SSD Cache Acceleration | Supported (M.2 NVMe SSDs and SSD caching; note built-in M.2 slots do not support hot-swap; M.2 hot-swap only via PCIe cards) |
| System Memory (Installed) | 4 GB DDR4 SODIMM (1 x 4 GB) |
| Backup / Snapshot Features | Block-based snapshots, Hybrid Backup Sync, PC/Laptop backup (NetBak Replicator, Time Machine), VM backup, SaaS backup for Google Workspace & Microsoft 365 |
| Operating Systems Supported | QTS, QuTS hero (note: switching between QTS and QuTS hero requires removing drives; QuTS hero recommended with >=8 GB memory) |
| Included Accessories / Package Contents | TS-873AEU-4G unit; 1 x Ethernet cable; 1 x power cord; 32 x flat-head screws for 3.5" drives; 24 x flat-head screws for 2.5" drives; Quick Installation Guide |
QNAP TS-873AeU-4G, 8-bay short-depth rackmount NAS, AMD Ryzen V1000 series V1500B 4C/8T 2.2GHz, 4GB DDR4 SODIMM RAM, 3y wty (no RAIL)
