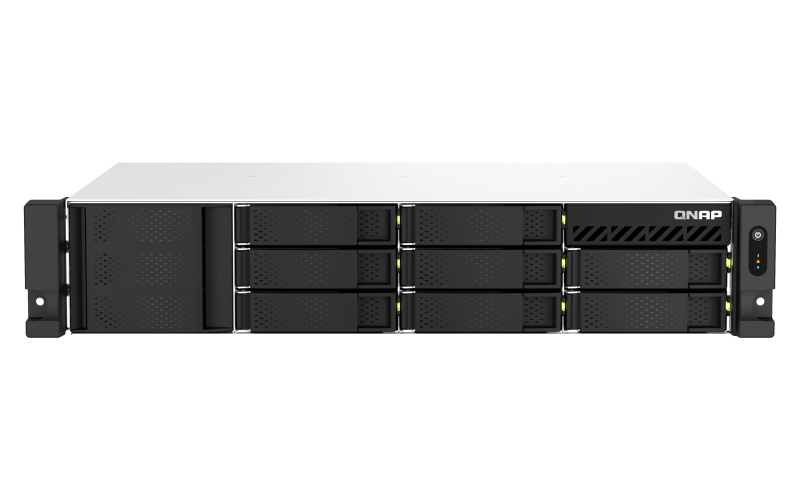

Qnap TS-873AeU-RP-4G, 8-bay Short-depth Rackmount Nas, AMD Ryzen V1000 Series V1500B 4C/8T 2.2GHz, 4GB DDR4 Sodimm Ram, 3y Wty (no Rail) TS-873AeU-RP-4G
SKU
390735
Brand
MPN
TS-873AeU-RP-4G
Warranty
Standard Manufacturer's Warranty
$4,351.00
Buy Now And Earn 4351 Reward Points!
QNAP TS-873AeU-RP-4G, 8-bay short-depth rackmount NAS, AMD Ryzen V1000 series V1500B 4C/8T 2.2GHz, 4GB DDR4 SODIMM RAM (max. 64GB total, optional ECC RAM support), 2 x 2.5GbE LAN, M.2 2280 NVMe/SATA SSD( PCIe Gen3x1), optional 10GbE expansion via PCIe, 1 x PCIe 3.0 x 8 slot, USB 3.2 Gen2 Type-C & Type-A, 2 x 300W PSU
| CPU | AMD Ryzen Embedded V1500B |
|---|---|
| MPN | TS-873AEU-RP-4G-US |
| SKU | TS-873AeU-RP-4G |
| UPC | 885022023431 |
| HDMI | No onboard HDMI (optional via PCIe graphics card) |
| Brand | QNAP |
| Color | Black |
| Model | TS-873AeU-RP-4G |
| Notes | System is shipped diskless unless specified by seller. Short-depth chassis designed for compact racks and AV/network cabinets. |
| Cooling | 3 x 60mm fans, 12VDC |
| Category | Storage |
| Material | Metal |
| M.2 Slots | 2 x M.2 2280 (PCIe Gen3 x1) — NVMe SSD compatible |
| USB Ports | 4 x USB 3.2 Gen2 (10 Gbps) — 2 x Type-A, 2 x Type-C |
| Drive Bays | 8 x 3.5-inch SATA (also supports 2.5-inch SATA HDD/SSD) |
| CPU Details | 4-core / 8-thread, 2.2 GHz |
| Description | The QNAP TS-873AeU-RP-4G is a compact 2U short-depth rackmount NAS designed for demanding multi-user, virtualization and hybrid-cloud applications. Powered by an AMD Ryzen Embedded V1500B quad-core/8-thread 2.2 GHz processor with AES-NI encryption acceleration and 4GB DDR4 memory (expandable to 64GB), it provides dual 2.5GbE connectivity, one PCIe Gen3 x8 expansion slot, and two M.2 NVMe PCIe Gen3 x1 slots for SSD caching or AI/Edge TPU modules. The chassis supports eight hot-swappable 3.5"/2.5" SATA drives (diskless by default), redundant 300W power supplies, multiple USB 3.2 Gen2 Type-A/Type-C ports, and runs QNAP's QTS or QuTS hero operating systems for a wide range of storage, virtualization, backup and surveillance use cases. Short 11.7" (297.4 mm) depth makes it suitable for compact racks and AV cabinets. |
| Form Factor | 2U short-depth rackmount |
| Memory Type | DDR4 SODIMM, ECC supported |
| Flash Memory | 5 GB (dual-boot OS protection) |
| Memory Slots | 2 x SODIMM DDR4 |
| Power Supply | 2 x 300W redundant PSU, 100 - 240V |
| Sub-Category | Network Attached Storage (NAS) |
| Weight (Net) | 20.28 lbs |
| Network Ports | 2 x 2.5 Gigabit Ethernet (2.5G/1G/100M) - RJ-45 Optional: 5GbE / 10GbE / 25GbE via PCIe network adapter |
| Product Title | QNAP TS-873AeU-RP-4G 8-Bay 2U Short-Depth Rackmount NAS (AMD Ryzen V1500B, 4GB, Dual 2.5GbE) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| PCIe Expansion | 1 x PCIe Gen3 x8 (for 10/25GbE adapters, QM2 cards, GPU pass-through, Fibre Channel, etc.) |
| System Warning | Buzzer |
| Weight (Gross) | 23.59 lbs |
| Drive Interface | SATA 6 Gb/s, SATA 3 Gb/s |
| CPU Architecture | 64-bit x86 |
| Network Features | Dual 2.5GbE with port trunking (up to 5 Gbps), Wake on LAN (only via 2.5GbE port), Jumbo Frame support |
| Operating System | Supports QTS and QuTS hero (examples: QTS 5.2.8, QuTS hero h5.2.8) |
| Encryption Engine | AES-NI (hardware) |
| Relative Humidity | 5-95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) |
| Dimensions (HxWxD) | 3.49 × 17.01 × 11.71 inch |
| Memory (Installed) | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Chassis Short Depth | 11.7 in (297.4 mm) |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Floating Point Unit | Yes |
| Storage Temperature | -20 - 70 °C (-4 - 158 °F) |
| Hot-Swappable Drives | Yes (3.5/2.5 drives); M.2 SSDs are not hot-swappable |
| Included Accessories | Ethernet cable x 1 Power cord x 2 Flat head screw (for 3.5" HDD) x 32 Flat head screw (for 2.5" HDD) x 24 Quick installation guide (QIG) |
| Operating Temperature | 0 - 40 °C (32 - 104 °F) |
| SSD Cache Acceleration | Supported (NVMe M.2 slots) |
| Maximum Pool Size (QTS) | 308 TB |
| Manufacturer Part Number | TS-873AEU-RP-4G-US |
| Certifications / Standards | Supports typical NAS protocols and QNAP management suites (see manufacturer documentation) |
| Maximum LUN Size (QuTS hero) | 1024 TB |
| Maximum Pool Size (QuTS hero) | 5 PB |
| Power Consumption (Disk Standby) | 32.19 W |
| Optional / Compatible Accessories | QM2 series (QM2-2P-244A, QM2-2P-344A, QM2-4P-384A, etc.) QXG 10/25GbE adapters (QXG-10G1T, QXG-10G2T, QXG-25G2SF variants) LAN adapters (QXG-2G1T-I225, QXG-5G1T-111C, etc.) Spare PSUs (PWR-PSU-300W-DT02, PWR-PSU-550W-HN01) Rail kits (RAIL-B02, RAIL-S01) SP-TS trays, additional RAM modules (4GB/8GB/16GB/32GB QNAP DDR4 modules) |
| GPU Passthrough / Hardware Transcoding | GPU passthrough supported; hardware-accelerated transcoding via optional PCIe graphics card |
| Power Consumption (Operating, Typical) | 58.14 W |
| Max Concurrent CIFS Connections (with max memory) | 2000 |
QNAP TS-873AeU-RP-4G, 8-bay short-depth rackmount NAS, AMD Ryzen V1000 series V1500B 4C/8T 2.2GHz, 4GB DDR4 SODIMM RAM, 3y wty (no RAIL)
