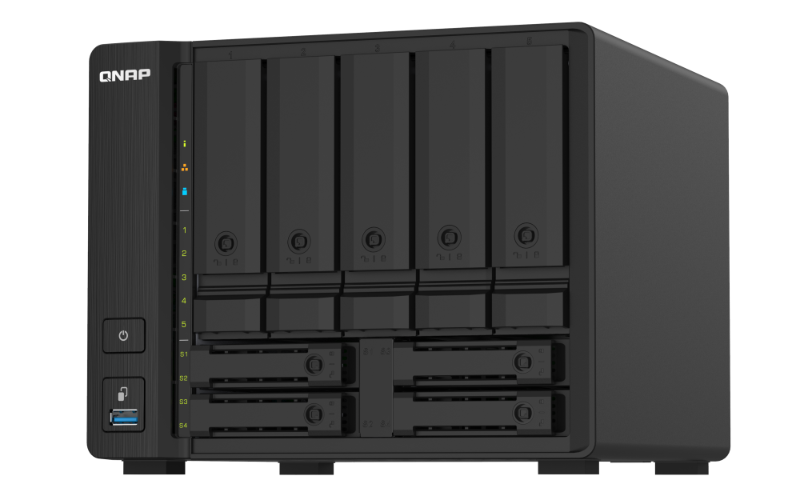

QNAP TS-932PX-4G 9-Bay NAS,AL324 64-bit quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (1 RAM slot, max 16GB), 5x 3.5" and 4x 2.5" drive slots, 2x 10GbE SFP+ LAN, 2 Yr
SKU
408718
Brand
MPN
TS-932PX-4G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $1,092.00 Regular Price $1,256.00
Buy Now And Earn 1092 Reward Points!
The quad-core 1.7GHz TS-932PX fits nine drive bays into the size of a 5-bay NAS. With five 3.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s bays, the TS-932PX provides the ability to create an HDD/SSD hybrid infrastructure to boost application performance. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-932PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing.
| CPU | AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | |
| Encryption Engine | |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x SODIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 5x 3.5-inch+ 4 x 2.5-inch SATA 6Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Wake on LAN (WOL) |
Only the 2.5GbE port
Only the 2.5GbE port |
| Jumbo Frame | |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~5, SSD1-4 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 176.5 × 224.6 × 224.1 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 4.66 kg |
| Weight (Gross) | 5.2 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External, 120 W, AC 100 to 240 V |
| Power Consumption: HDD Sleep Mode | 23.833 W |
| Power Consumption: Operating Mode, Typical | 43.003 W
Tested with drives fully populated.
Tested with drives fully populated. |
| Fan | 1 x 140mm, 12VDC |
| System Warning | Voice prompts or Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
