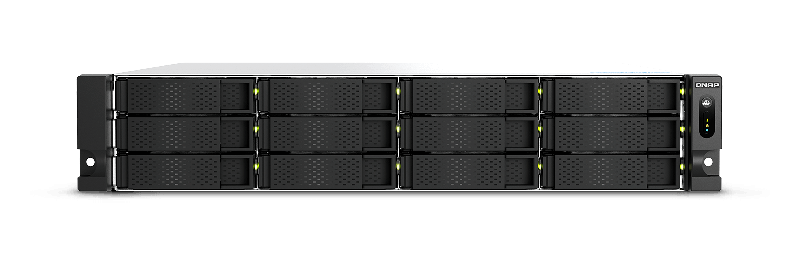

Qnap 12 Bay Nas 3.5"(0/12), R7 8C-5.3GHz, 32GB, 10GbE(2), 2.5GbE(2), Rps, 2U Rack, 5YR Wty TS-H1277AXU-RP-R7-32G
SKU
415144
Brand
MPN
TS-H1277AXU-RP-R7-32G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$9,315.00
Buy Now And Earn 9315 Reward Points!
Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
| CPU | AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz |
| Weight | - Net: 13 kg |
| Buttons | Power, Reset |
| Warranty | 5 Years |
| M 2 Slots | 2 x M.2 2280 PCIe Gen 5 x2 slots (Compatible with NVMe SSD PCIe Gen 3 and above) |
| USB Ports | 2 x Type-A USB 3.2 Gen 2 (10Gbps) |
| Drive Bays | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| PCIe Slots | - Slot 1: Gen 4 x 4 |
| Form Factor | 2U Rackmount |
| Flash Memory | 5GB (Dual boot OS protection) |
| Memory Slots | 4 x UDIMM DDR5 |
| Power Supply | 550W (x2), 100-240V |
| System Memory | 32 GB UDIMM DDR5 (1x 32 GB) |
| - Gross: 19 kg | - Gross: 19 kg |
| Cooling System | System fan: 3 x 60mm, 12VDC |
| Ethernet Ports | - 2 x 2.5GbE (2.5G/1G/100M) |
| LED Indicators | Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, Storage Expansion Port Status |
| Maximum Memory | 192 GB (4 x 48 GB) |
| System Warning | Buzzer |
| CPU Architecture | 64-bit x86 |
| GPU Pass-through | Supported |
| Encryption Engine | AES-NI |
| Power Consumption | - HDD Sleep Mode: 82.247 W |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Wake on LAN (WOL) | Yes |
| Dimensions (HxWxD) | 88.6 × 482 × 550 mm (excluding ear hooks and PSU protrusions) |
| ECC Memory Support | Optional |
| Graphics Processor | AMD Radeon Graphics |
| - Slot 3: Gen 4 x 4 | - Slot 3: Gen 4 x 4 |
| Drive Compatibility | - 3.5-inch SATA hard disk drives |
| Jumbo Frame Support | Yes |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Hot-swappable Drives | Yes |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| SSD Cache Acceleration | Supported |
| Hardware-accelerated Transcoding | Supported |
| - 2 x 10GbE (10G/5G/2 5G/1G/100M) | - 2 x 10GbE (10G/5G/2.5G/1G/100M) |
| - Slot 2: Gen 4 x 8 or Gen 4 x 4* | - Slot 2: Gen 4 x 8 or Gen 4 x 4* |
| - 2 5-inch SATA solid-state drives | - 2.5-inch SATA solid-state drives |
| Max Concurrent Connections (CIFS) | 5000 |
| - Operating Mode: 367 65 W (Tested with fully populated drives) | - Operating Mode: 367.65 W (Tested with fully populated drives) |
Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
