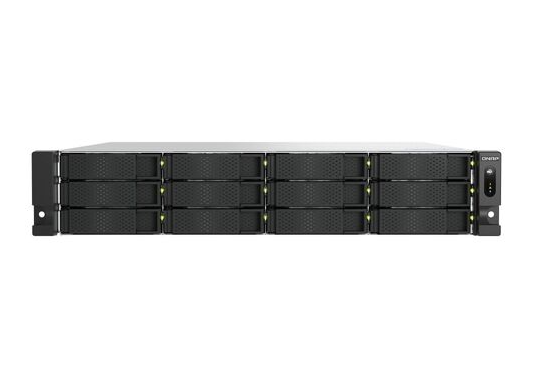

Qnap TS-h1277AXU-RP-R7-32G, AMD Ryzen 7000 Series 8C16T(boost Up To 5.3 GHz), 32 Gb DDR4 Memory (1 X 32 GB),redundant Power, 3 Yrs TS-h1277AXU-RP-R7-32G
SKU
413292
Brand
MPN
TS-h1277AXU-RP-R7-32G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$9,315.00
Buy Now And Earn 9315 Reward Points!
QNAP TS-h1277AXU-RP-R7-32G, 2U 12-bay 3.5" SATA HDD NAS, AMD Ryzen 7000 series 8C16T (boost up to 5.3 GHz), 32GB DDR5 non-ECC RAM (max. 128GB total), 2x M.2 2280 PCIe Gen5 x2 slots for SSD cache, 2x 10GBASE-T + 2x 2.5 GbE RJ45, 3 x PCIe Gen 4 expansion slots, 2 x 550W redundant pwoer supply
| GPU | Integrated AMD Radeon Graphics |
|---|---|
| SKU | TS-h1277AXU-RP-R7-32G |
| Brand | QNAP |
| Model | TS-h1277AXU-RP-R7-32G |
| Notes | Some vendor listings show minor differences in maximum supported memory or PCIe slot configuration; this consolidated record reflects values supported by QNAP documentation and majority cross-source data. |
| Category | Storage |
| Warranty | Limited 5-year warranty |
| M.2 Slots | 2 x M.2 2280 PCIe Gen 5 (PCIe Gen5 x2) |
| Processor | AMD Ryzen 7 7000 Series, 8-core / 16-thread (up to 5.3 GHz) |
| USB Ports | 2 x USB 3.2 Gen 2 Type-A (10 Gbps) |
| Drive Bays | 12 x front 3.5-inch (support 2.5-inch) SATA HDD/SSD |
| Encryption | Hardware-accelerated AES (AES-NI); supports 256-bit AES (FIPS 140-2 level noted on some SKUs) |
| PCIe Notes | Slot widths/configurations vary by slot (slot 2 provides x8 when slot 1 not used; otherwise x4) |
| Description | The QNAP TS-h1277AXU-RP-R7-32G is a 2U, 12-bay rackmount ZFS-based NAS powered by an AMD Ryzen 7 7000 Series 8-core / 16-thread processor (boost up to 5.3 GHz) on the AM5 platform. It ships with 32 GB UDIMM DDR5 (1 x 32 GB) and supports up to 192 GB across 4 UDIMM slots (supports ECC UDIMM; ECC cannot be mixed with non-ECC). The system includes integrated AMD Radeon graphics, dual M.2 2280 PCIe Gen5 x2 slots for high-speed NVMe caching/volumes (M.2 SSDs not hot-swappable), three PCIe Gen4 expansion slots, dual 10GBASE-T and dual 2.5GbE RJ45 network ports, and redundant dual 550W power supplies. Runs QuTS hero (ZFS-based) or QTS and provides enterprise features including SSD caching, snapshot and dedupe/compression support, hardware AES encryption acceleration (AES-NI), and broad virtualization and backup support. |
| ECC Support | Supports ECC UDIMM (cannot mix ECC with non-ECC) |
| Form Factor | 2U rackmount |
| Memory Type | DDR5 UDIMM (non-ECC installed by default) |
| Flash Memory | 5 GB (dual-boot OS protection) |
| M.2 Hot-Swap | M.2 SSDs are not hot-swappable |
| Memory Slots | 4 x UDIMM DDR5 |
| Sub-Category | Network Attached Storage (NAS) |
| Weight (Net) | 28.66 lb (13.0 kg) |
| Network Ports | 2 x 10GBASE-T RJ45 (10G/5G/2.5G/1G/100M), 2 x 2.5GbE RJ45 |
| Product Title | QNAP TS-h1277AXU-RP-R7-32G 12-Bay 2U NAS (AMD Ryzen 7, 32GB DDR5, 2x10GBASE-T, 2x2.5GbE, 2x M.2 PCIe Gen5) |
| Cooling / Fans | 3 x 60 mm system fans |
| Maximum Memory | Up to 192 GB (4 x 48 GB) |
| PCIe Expansion | 3 x PCIe Gen4 slots (configurable widths; supports various expansion cards) |
| Power Supplies | 2 x 550W redundant power supplies (100-240 VAC, 50/60 Hz) |
| CPU Architecture | 64-bit x86 (AM5 / Zen 4) |
| Installed Memory | 32 GB (1 x 32 GB UDIMM DDR5) |
| Relative Humidity | 5 to 95% RH non-condensing |
| Dimensions (HxWxD) | 3.49 × 18.98 × 21.65 inch (HxWxD) (manufacturer-stated; excludes ear hooks and PSU protrusion) |
| Optional Networking | Supports higher-speed NICs (e.g., 25GbE) via PCIe adapter (optional) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| RAID Levels Supported | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Supported Drive Types | 3.5" SATA HDD, 2.5" SATA SSD; M.2 NVMe SSD (M.2 slots for SSDs) |
| Certifications / Compliance | Product listings reference enterprise certifications and standards; FIPS 140-2 Level 2 noted for encryption on some listings |
| Operating System / Software | QuTS hero (ZFS-based) or QTS (standard); virtualization and backup apps supported (Virtualization Station, Container Station, Hybrid Backup Sync, snapshots, dedupe/compression) |
| Virtualization Certifications | VMware Ready, Microsoft Hyper-V, Veeam Ready (as listed) |
| Included Accessories / Package Content | TS-h1277AXU-RP storage system, 1 x 10GBASE-T Ethernet cable, 2 x power cords, HDD/SSD mounting screws, Quick Installation Guide |
QNAP TS-h1277AXU-RP-R7-32G, AMD Ryzen 7000 series 8C16T(boost up to 5.3 GHz), 32 GB DDR4 memory (1 x 32 GB),redundant power, 3 Yrs
