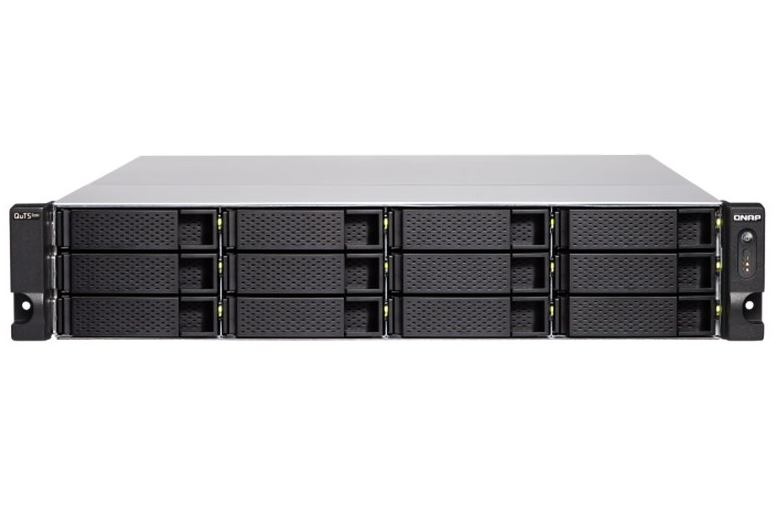

Qnap TS-h1886XU-RP-R2-D1622-32G, 12 (+6) -Bay Sata 6Gbps (12 X 3.5" + 6 X 2.5") 2U Nas, Xeon D-1622 4 Cores,32GB DDR4 Ecc Ram, 4x 2.5GbE, 3 Yr Wty TS-h1886XU-RP-R2-D1622-32G
SKU
411471
Brand
MPN
TS-h1886XU-RP-R2-D1622-32G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$11,275.00
Buy Now And Earn 11275 Reward Points!
QNAP TS-h1886XU-RP-R2-D1622-32G, 12 (+6) -Bay SATA 6Gbps (12 x 3.5" + 6 x 2.5") 2U NAS, Xeon D-1622 4 cores / 8 threads 2.60 GHz (boost up to 3.20 GHz), 32GB DDR4 ECC RAM (4 x DIMMs, max 128GB total), 4 x GbE RJ45 LAN, 2 x 10GbE SFP+ SmartNIC, optional 25GbE & 40GbE & fibre channel FC support, iSCSI, RAID, 4 x PCIe expansion slots (1 slot is pre-installed with a 2-port 10GbE SFP+ card), USB 3.2 Gen1, redundant power supply, QuTS hero O.S. with ZFS, deduplication, compress, snapshots, optional fibre channel FC support
| SKU | TS-h1886XU-RP-R2-D1622-32G |
|---|---|
| Brand | QNAP |
| Model | TS-h1886XU-RP R2 |
| Notes | Preinstalled dual-port 10GbE SFP+ SmartNIC; supports adding 25GbE NICs, QM2 cards for M.2 caching, and SAS expansion cards. |
| Power | Power Supplies: Dual redundant 550W (100-240V) Typical Power Consumption: 117.92 W (tested with drives fully populated) |
| Memory | Type: UDIMM DDR4 ECC Slots: 4 x UDIMM DDR4 Maximum: 128 GB (4 x 32 GB) Installed: 32 GB DDR4 ECC UDIMM (2 x 16 GB) |
| Variant | TS-h1886XU-RP-R2-D1622-32G |
| Category | Storage |
| Warranty | 3-year limited warranty (extendable up to 5 years) |
| Processor | Cores: 4 cores / 8 threads Model: Intel Xeon D-1622 Architecture: 64-bit x86 Base Frequency: 2.6 GHz Burst Frequency: Up to 3.2 GHz Encryption Engine: AES-NI |
| USB Ports | 2 x USB 3.2 Gen1 (5 Gbps) |
| Drive Bays | Interface: SATA 6 Gb/s Total Bays: 18 2.5-inch Bays: 6 x 2.5-inch SATA 6 Gb/s (rear) 3.5-inch Bays: 12 x 3.5-inch SATA 6 Gb/s (front) Compatibility: 3.5" bays: 3.5" SATA HDD or 2.5" SATA SSD; 2.5" bays: 2.5" SATA SSD Hot-Swappable: Yes |
| Networking | RDMA: Supports RoCE and RoCEv2 10GbE: Dual-port 10GbE SFP+ SmartNIC preinstalled (2 x 10GbE via dual-port card) 2.5GbE: 4 x 2.5GbE RJ45 (2.5G/1G/100M) Expandable: Supports additional 10GbE/25GbE NICs via PCIe |
| PCIe Slots | Notes: One PCIe slot is preinstalled with a dual-port 10GbE SFP+ adapter; slots support network adapters, QM2 cards, entry-level GPUs, or SAS cards Total: 3 Configuration: 2 x PCIe Gen3 x4 slots; 1 x PCIe Gen2 x4 slot |
| Description | The QNAP TS-h1886XU-RP R2 is an 18-bay 2U rackmount NAS designed for virtualization and data‑intensive enterprise applications. It is powered by an Intel® Xeon® D-1622 quad-core processor (burst up to 3.2 GHz) and ships with 32 GB DDR4 ECC UDIMM (upgradable to 128 GB). The system includes twelve front 3.5" SATA 6 Gb/s drive bays and six rear 2.5" SATA 6 Gb/s SSD slots, redundant 550W power supplies, preinstalled dual-port 10GbE SFP+ SmartNIC plus four 2.5GbE RJ45 ports, and three PCIe slots for network, QM2, GPU or SAS expansion. Running the ZFS-based QuTS hero operating system (optionally switchable to QTS), the TS-h1886XU-RP R2 supports enterprise features such as inline deduplication and compression, self-healing and WORM, SnapSync, and up to 65,535 snapshots, making it suitable for mission-critical file services, virtualization, backup, and disaster recovery. |
| Form Factor | 2U rackmount |
| GPU Support | Supports low-profile / entry-level graphics cards (for accelerating certain apps) |
| Flash Memory | 5 GB (dual-boot OS protection) |
| Manufacturer | QNAP Systems, Inc. |
| Sub-Category | Network Attached Storage (NAS) |
| Environmental | Relative Humidity: 5 - 95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) Storage Temperature: -20 - 70 °C (-4 - 158 °F) Operating Temperature: 0 - 40 °C (32 - 104 °F) |
| Product Title | QNAP TS-h1886XU-RP R2 18-Bay 2U Rackmount NAS — Intel Xeon D-1622, 32GB DDR4 ECC, Dual 10GbE SFP+, 4x2.5GbE, QuTS hero (ZFS) |
| Operating System | Primary: QuTS hero (ZFS-based) Alternative: QTS (can be switched) Versions Noted: QuTS hero h5.2.8; QTS 5.2.8 |
| Storage Expansion | Supports QNAP expansion enclosures and SAS expansion via SAS expansion cards (PCIe); PB-level expansion supported |
| Dimensions & Weight | Net Weight: 31.97 lbs Gross Weight: 41.01 lbs Dimensions (H x W x D): 3.49 x 17.01 x 20.13 inches |
| Cooling & Indicators | Buttons: Power, Reset System Fans: 3 x 60 mm, 12 VDC LED Indicators: HDD, SSD, Status, LAN, expansion port status System Warning: Buzzer |
| Included Accessories | Ethernet cable x1 Power cord x2 Flat head screws x48 (for 3.5" HDD) Flat head screws x64 (for 2.5" HDD) Quick Installation Guide |
| Virtualization Certifications | VMware Ready Microsoft Hyper-V Citrix Veeam Ready |
| Data Protection & Software Features | ZFS features: self-healing and WORM compliance Block-level inline deduplication and compression Real-time SnapSync Snapshots: up to 65,535 QNAP App Center: VM/Container hosting, backup, cloud gateway, WireGuard VPN |
| Performance (SMB Throughput, reported/tested) | 2x 10GbE (Download/Upload): 2148 MB/s / 2150 MB/s 2x 25GbE (Download/Upload): 4999 MB/s / 4682 MB/s 4x 2.5GbE (Download/Upload): 1077 MB/s / 1001 MB/s |
QNAP TS-h1886XU-RP-R2-D1622-32G, 12 (+6) -Bay SATA 6Gbps (12 x 3.5" + 6 x 2.5") 2U NAS, Xeon D-1622 4 cores,32GB DDR4 ECC RAM, 4x 2.5GbE, 3 Yr WTY
