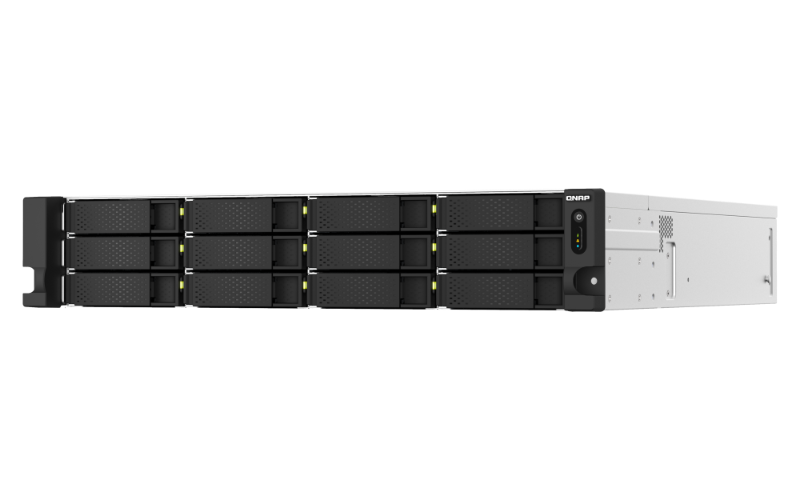

Qnap TS-h1887XU-RP-E2334-16G,18-Bay 2U Rackmount Nas, Intel® Xeon® E-2334 4 Cores / 8 Threads 3.4 GHz Processor (boost Up To 4.8 GHz), 16 Gb Ecc DDR4, 5 Yrs W TS-h1887XU-RP-E2334-16G
SKU
408720
Brand
MPN
TS-h1887XU-RP-E2334-16G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $9,731.00 Regular Price $11,191.00
Buy Now And Earn 9731 Reward Points!
QNAP TS-h1887XU-RP-E2334-16G, 18-Bay 2U rackmount NAS, Intel® Xeon® E-2334 4 cores / 8 threads 3.4 GHz processor (boost up to 4.8 GHz), 16 GB ECC DDR4, 12 x 2.5"/3.5" SATA 6Gbps HDD/SSD + 6 x 2.5" SATA 6Gbps, 2 x 10GBASE-T, 2 x 2.5GbE, 4 x USB 3.2 Gen2 ( USB-A), 2 x PCIe Gen4 x4 + 2 x PCIe Gen4 x8, 550W redundant power supply, QuTS hero O.S. with ZFS, deduplication, compress, snapshots, optional fibre channel FC support
| CPU | Base Clock: 3.40 GHz Cores / Threads: 4 cores / 8 threads Max Turbo Clock: Up to 4.80 GHz Processor Brand: Intel Processor Model: Intel Xeon E-2334 Processor Family: Xeon E-2300 series |
|---|---|
| SKU | TS-h1887XU-RP-E2334-16G-US |
| Brand | QNAP |
| Model | TS-h1887XU-RP-E2334-16G |
| Notes | M.2 slots are not onboard; M.2 SSD support requires an optional QM2 or other PCIe adapter. Some reseller SKUs/configurations may include drives or different bundled accessories — verify the specific SKU configuration before purchase. |
| Power | Power Supplies: 2 x 550W (redundant) Power Consumption (Disk Standby): 118.77 W Power Consumption (Operating, Typical): 148.94 W |
| Weight | Net Weight (reported): 32.78 lb Gross / Packaged Weight (reported): 41.89 lb |
| Cooling | 4 x 60 mm cooling fans |
| Category | Storage |
| Warranty | Limited warranty - 3 years (unit); accessories warranty may vary |
| USB Ports | 4 x USB 3.2 Gen 2 Type-A (10 Gbps) |
| Description | High-capacity, enterprise-grade 18-bay 2U NAS designed for heavy business workloads and virtualization. Powered by an Intel® Xeon® E-2334 (4C/8T, 3.4 GHz up to 4.8 GHz) with 16 GB ECC DDR4 preinstalled (expandable to 128 GB), dual 550W redundant PSUs, 2 x 2.5GbE and 2 x 10GBASE-T RJ45 ports, and three PCIe Gen4 slots for expandability. Runs QNAP QuTS hero (ZFS) or QTS operating systems with data-integrity features including inline deduplication, near-limitless snapshots, SnapSync and QNAP SSD anti-wear technologies — ideal for file/virtualization servers, VDI, backup/restore and hybrid HDD/SSD storage deployments. |
| Form Factor | 2U Rackmount |
| M.2 Support | No internal M.2 by default; M.2 SSD supported via optional QM2 PCIe adapter |
| Memory Slots | 4 x ECC UDIMM DDR4 |
| Product Line | TS-h1887XU-RP |
| Sub-Category | Network Attached Storage (NAS) |
| Environmental | Relative Humidity: 5 - 95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) Storage Temperature: -20 - 70 °C (-4 - 158 °F) Operating Temperature: 0 - 40 °C (32 - 104 °F) |
| Product Title | QNAP TS-h1887XU-RP-E2334-16G 18-Bay 2U Rackmount NAS (Intel Xeon E-2334, 16GB ECC) |
| Maximum Memory | 128 GB (4 x 32 GB ECC UDIMM) |
| PCIe Expansion | 3 slots (2 x PCIe Gen4 x4, 1 x PCIe Gen4 x8) |
| Flash Memory (OS) | 5 GB (dual-boot OS protection / flash) |
| Dimensions (HxWxD) | 3.49 × 17.01 × 20.13 inches (approx. 3.5 × 17 × 20.1 in) |
| Drive Bays (Total) | 18 |
| Network Interfaces | 10GbE RJ45: 2 ports (10G/5G/2.5G/1G/100M) Expandable: 25GbE and other adapters via PCIe 2.5GbE RJ45: 2 ports (2.5G/1G/100M) |
| Drive Compatibility | 3.5-inch SATA HDDs; 2.5-inch SATA SSDs (SATA 6Gb/s) |
| Hot-Swappable Drives | Yes (3.5" and 2.5" drive bays hot-swappable) |
| RAID Levels Supported | JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID 50 RAID 60 RAID TP RAID TM |
| Security & Encryption | 256-bit AES AES-NI SSL / TLS support |
| Drive Bay Configuration | 12 x 3.5-inch SATA + 6 x 2.5-inch SATA (hot-swappable) |
| Key Software / Features | Inline data deduplication Near-limitless snapshots Real-time SnapSync QSAL (QNAP SSD Anti-wear Leveling) SSD cache acceleration support iSCSI target and block-based iSCSI LUN support Extensive backup, virtualization and file services Snapshot Replica / Vault, Snapshot Full Clone Security features (2-step verification, firewall, access protection) |
| Connectivity & Protocols | Network Protocols: [ "AFP", "CIFS/SMB", "NFS v3/v4", "FTP/FTPS/SFTP", "WebDAV", "iSCSI", "OpenVPN", "WireGuard", "IPSec", "DDNS" ] Remote Management: [ "HTTP / HTTPS", "SSH", "SNMP v2 / v3", "RADIUS", "Telnet" ] |
| Included Storage (if any) | Varies by configuration; some SKUs may include drives (refer to seller configuration). |
| System Memory (Installed) | 16 GB ECC DDR4 |
| Certifications & Compliance | EPEAT: No (reported) ENERGY STAR: No (reported) |
| Operating Systems Supported | QuTS hero (ZFS-based) QTS |
| Included Accessories / Package Contents | QNAP TS-h1887XU-RP Storage unit 1 x Ethernet cable / network cable 2 x Power cords (redundant PSUs) 48 x flat head screws (for 3.5" HDD) 64 x flat head screws (for 2.5" HDD) Quick Installation Guide |
QNAP TS-h1887XU-RP-E2334-16G,18-Bay 2U rackmount NAS, Intel® Xeon® E-2334 4 cores / 8 threads 3.4 GHz processor (boost up to 4.8 GHz), 16 GB ECC DDR4, 5 Yrs W
