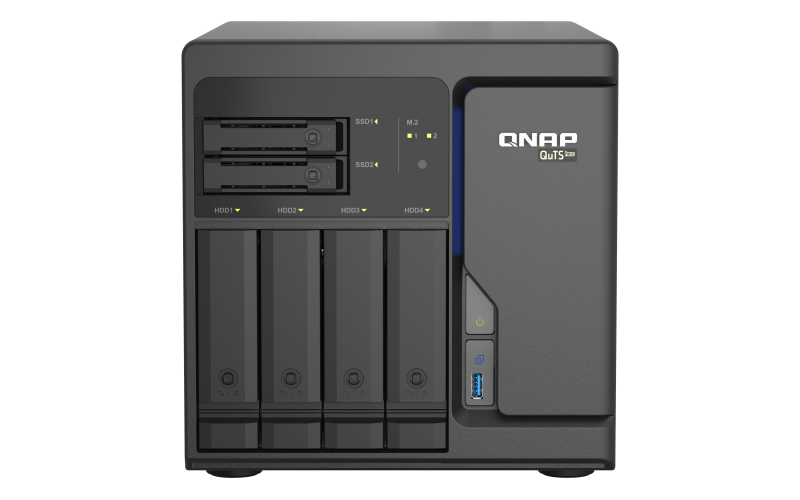

Qnap TS-h686-D1602-8G 6 Bay Tower Nas Intel® Xeon® D-1602 2 Cores/4 Threads 2.5 GHz Processor(Turbo Boost Up To 3.2 GHz), 8GB DDR4 (2 X 4 GB),4 X 2.5GbE Ports TS-h686-D1602-8G
SKU
372296
Brand
MPN
TS-h686-D1602-8G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $2,288.00 Regular Price $2,632.00
Buy Now And Earn 2288 Reward Points!
QUICK OVERVIEW
8GB DDR4 (2 x 4 GB),4 x 2.5GbE ports
Delivering enterprise performance at SMB prices, the TS-h686 features an Intel® Xeon® D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h686 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h686 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.
| SKU | TS-h686-D1602-8G |
|---|---|
| USB | USB 2.0: 0 USB 3.2 Gen 1 (Type-A): 3 |
| RAID | Levels: [ "0", "1", "5", "6", "10", "50", "60", "Hot Spare" ] Supported: true |
| Brand | QNAP |
| Model | TS-h686-D1602-8G |
| Power | PSU: 250 W internal Number of PSUs: 1 AC Input Voltage: 100 - 240 V AC Input Frequency: 50 - 60 Hz Typical Power Consumption: 61.115 W |
| Series | TS-hx86 |
| Weight | Net: 18.61 lb Gross: 19.18 lb |
| Buttons | Power Reset USB Auto Copy |
| Cooling | Fans: 2 CPU Fan: 90 mm, 12 V DC System Fan: 97 mm, 12 V DC Noise Level: 18.6 dB |
| Warranty | 3 Year |
| M.2 Slots | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 |
| Processor | Cache: 3 MB Cores: 2 Model: D-1602 Family: Xeon D Threads: 4 Features: [ "Intel VT-x", "VT-d", "Intel AES-NI", "Intel SpeedStep", "Execute Disable Bit", "Intel 64" ] Manufacturer: Intel Base Frequency: 2.50 GHz Boost Frequency: Up to 3.20 GHz |
| Protocols | TCP/IP IPv4 IPv6 DHCP HTTP/HTTPS FTP/SFTP/FTPS SMB/CIFS AFP iSCSI NFS SNMP LDAP UPnP Telnet SSH |
| Dimensions | Depth: 12.59 in Width: 8.85 in Height: 8.86 in |
| Drive Bays | Total: 6 Interfaces: [ "SATA III (6 Gb/s)", "SATA II (3 Gb/s)" ] HotSwappable: Yes (M.2 SSDs not hot-swappable) Configuration: 4 x 3.5" SATA + 2 x 2.5" SATA SupportedDriveSizes: [ "3.5 inch", "2.5 inch" ] SupportedDriveTypes: [ "SATA HDD", "SATA SSD", "NVMe (M.2 for cache)" ] |
| Networking | Features: [ "Port trunking", "Failover", "Jumbo frame support" ] Ethernet Ports: 4 x RJ-45 Ethernet Speeds: [ "2.5 GbE", "1 GbE", "100 Mb/s", "10 Mb/s" ] |
| PCIe Slots | 2 x PCIe Gen3 x8 |
| Description | The QNAP TS-h686-D1602-8G is a 6-bay tower QuTS hero NAS powered by an Intel Xeon D-1602 processor (2 cores / 4 threads; base 2.50 GHz, boost up to 3.20 GHz) and 8 GB DDR4 UDIMM ECC memory (4 slots, expandable to 128 GB). Designed for business storage and virtualization, it provides ZFS-based data integrity, inline deduplication/compression, near-limitless snapshots, real-time SnapSync, and comprehensive backup/restore options. Storage is flexible with 4 x 3.5" SATA bays plus 2 x 2.5" SATA bays, 2 x M.2 NVMe Gen3 x4 slots for caching, and two PCIe Gen3 x8 slots for expansion (10GbE, QM2 or other add-in cards). Networking includes four native 2.5GbE RJ45 ports (backwards compatible with 1G/100M), port trunking and failover. The unit includes active cooling, AES-NI encryption support, a 250 W internal PSU, and a 3-year warranty. |
| Form Factor | Tower |
| Noise Level | 18.6 dB |
| Chassis Type | Tower |
| Flash Memory | 5 GB (dual-boot OS protection) |
| Environmental | Operating Humidity: 5 - 95% RH non-condensing (wet bulb: 27 °C) Storage Temperature: -20 - 70 °C Operating Temperature: 0 - 35 °C |
| Product Title | QNAP TS-h686-D1602-8G 6-Bay QuTS hero NAS - Intel Xeon D-1602, 8GB DDR4 ECC, 4x2.5GbE |
| System Memory | ECC: true Type: DDR4 UDIMM ECC Slots: 4 Maximum: 128 GB Installed: 8 GB |
| LED Indicators | System status LAN USB Disk 1-6 M.2 SSD 1-2 |
| Operating System | QuTS hero (ZFS-based), can switch to QTS |
| Country of Origin | Taiwan |
| Supported Client OS | Mac: [ "macOS 10.10 - 10.15 (Yosemite to Catalina)" ] Linux: Supported Windows: [ "Windows 7", "Windows 8", "Windows 10" ] |
| Included Accessories | NAS unit (TS-h686) Ethernet cable x2 Power cord x1 Flat-head screws for 3.5" HDD Flat-head screws for 2.5" HDD Drive tray keys x2 M.2 SSD heatsink x2 Quick Installation Guide |
| Management & Features | Web-based management S.M.A.R.T. support USB One-touch copy Buzzer (system warning) Kensington cable lock slot |
| Security & Encryption | AES-NI hardware encryption 256-bit AES FIPS 140-2 support HTTPS / SSL/TLS SSH |
| File Systems Supported | ZFS ext4 ext3 NTFS HFS+ FAT32 |
| Data Protection & Backup | Inline deduplication and compression Near-limitless snapshots Snapshot Replica Real-time SnapSync HBS backup suite (supports QuDedup) |
| Virtualization & Container | Virtualization Station Container Station Network & Virtual Switch |
QNAP TS-h686-D1602-8G 6 Bay Tower NAS Intel® Xeon® D-1602 2 cores/4 threads 2.5 GHz processor(Turbo Boost up to 3.2 GHz), 8GB DDR4 (2 x 4 GB),4 x 2.5GbE ports
