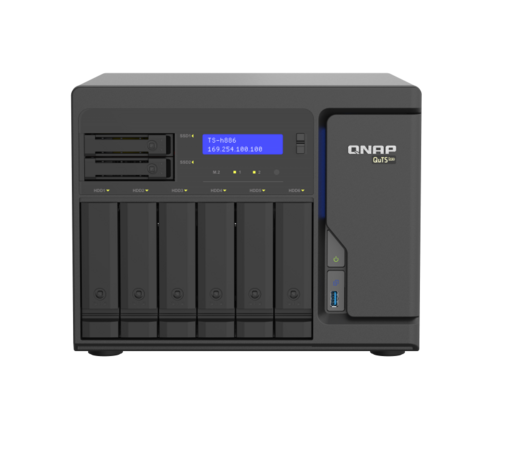

Qnap TS-h886-D1602-8G, 8-Bay QuTS Hero Nas, Built-in 2 M.2 NVMe Gen3 X4 Port, Sata 6G, Xeon D-1602 2.5GHz, 8GB Ecc Ram, 4 X 2.5GbE, 3 Year Wty TS-h886-D1602-8G
SKU
420849
Brand
MPN
TS-h886-D1602-8G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,655.00
Buy Now And Earn 3655 Reward Points!
QNAP TS-h886-D1602-8G,
8-Bay QuTS hero NAS, built-in 2 M.2 NVMe Gen3 x4 port, SATA 6G, Xeon D-1602 2.5GHz, 8GB ECC RAM, 4 x 2.5GbE, iSCSI, RAID 0,1, 5, 6, 10, 5+spare, 6+spare, 10+spare, global hot spare, max 128 GB RAM, PCIe expansion slot x2, 250W single power supply
8-Bay QuTS hero NAS, built-in 2 M.2 NVMe Gen3 x4 port, SATA 6G, Xeon D-1602 2.5GHz, 8GB ECC RAM, 4 x 2.5GbE, iSCSI, RAID 0,1, 5, 6, 10, 5+spare, 6+spare, 10+spare, global hot spare, max 128 GB RAM, PCIe expansion slot x2, 250W single power supply
| CPU | Cores: 2 Model: Intel Xeon D-1602 Threads: 4 Max Clock: up to 3.2 GHz Architecture: 64-bit x86 |
|---|---|
| EAN | 4711103083246 |
| MPN | TS-H886-D1602-8G |
| SKU | TS-h886-D1602-8G |
| UPC | 4711103083246 |
| ASIN | B0C1Q7TN4Y |
| Brand | QNAP |
| Model | TS-h886-D1602-8G |
| Power | Power Supply: 250 W (internal) Power Consumption (Typical, fully populated drives): 75.79 W |
| Weight | Net: 18.7 lb (8.5 kg) Package (Gross): 22.04 lb |
| Cooling | 2 x 80 mm system fans; 1 x 90 mm CPU fan |
| Category | Storage |
| Warranty | Standard 3-year limited warranty (manufacturer) |
| M.2 Slots | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 (for cache / SSD) |
| USB Ports | 3 x USB 3.2 Gen 1 (USB-A) |
| Dimensions | HxWxD (cm): 22.5 x 29.3 x 32.0 HxWxD (inches): 8.86 x 11.53 x 12.59 |
| Drive Bays | Notes: System ships without HDD/SSD Total: 8 Interface: SATA III (6 Gb/s) Configuration: 6 x 3.5" SATA + 2 x 2.5" SATA |
| PCIe Slots | 2 x PCIe Gen3 x8 |
| Description | The QNAP TS-h886-D1602-8G is an 8-bay desktop NAS powered by an Intel Xeon D-1602 (2 cores / 4 threads, up to 3.2 GHz) and 8 GB DDR4 ECC memory (installed, expandable to 128 GB). Running the ZFS-based QuTS hero operating system (switchable to QTS), it provides enterprise-grade data integrity with inline deduplication, compression, near-limitless snapshots, and real-time SnapSync. Storage includes six 3.5" SATA III bays plus two 2.5" SATA bays, and two M.2 NVMe Gen3 x4 slots for SSD caching. Quad native 2.5GbE RJ45 ports and two PCIe Gen3 x8 expansion slots allow high-bandwidth networking and optional 5/10/25/40GbE upgrades. Suitable for virtualization, backup/recovery, collaborative media workflows, and other business-critical storage needs. |
| Form Factor | Desktop / Tower |
| Memory Type | DDR4 ECC UDIMM |
| Noise Level | 20.4 dBA (reported) |
| Key Features | Intel Xeon D-1602 dual-core processor with AES-NI 8-bay (6 x 3.5" + 2 x 2.5") + 2 x M.2 NVMe slots 4 x native 2.5GbE ports 8 GB DDR4 ECC installed (expandable to 128 GB) ZFS-based QuTS hero: dedupe, compression, snapshots, SnapSync 2 x PCIe Gen3 x8 for flexible expansion |
| Memory Slots | 4 x UDIMM DDR4 |
| RAID Support | QTS: [ "JBOD", "Single", "RAID 0", "RAID 1", "RAID 5", "RAID 6", "RAID 10", "RAID 50", "RAID 60" ] QuTS hero (ZFS): [ "Single", "RAID 0 (Stripe)", "1", "5", "6", "10", "50", "60", "Triple Mirror", "Triple Parity", "RAID Z (ZFS)" ] |
| Sub-Category | Network Attached Storage (NAS) |
| Environmental | Relative Humidity: 5 - 95% RH non-condensing (wet bulb: 27 °C) Storage Temperature: -20 - 70 °C (-4 - 158 °F) Operating Temperature: 0 - 40 °C (32 - 104 °F) |
| Product Title | QNAP TS-h886-D1602-8G 8-Bay Xeon D QuTS hero NAS (8GB ECC, 4x2.5GbE, 2x M.2 NVMe) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Installed Memory | 8 GB UDIMM DDR4 ECC (2 x 4 GB) |
| Encryption Engine | AES-NI (hardware-accelerated) |
| Flash Memory (OS) | 5 GB (dual-boot OS protection) |
| GPU / Transcoding | Optional via PCIe adapter (GPU passthrough supported via adapter) |
| Security Features | AES 256-bit volume encryption (FIPS 140-2 CAVP validated) 2-step verification Security Counselor Malware Remover Firewall and access protection features Kensington security slot |
| Network Interfaces | Built-in: 4 x RJ45 2.5GbE (2.5G/1G/100M/10M) Optional via PCIe: 5GbE / 10GbE / 25GbE / 40GbE adapters |
| Drive Compatibility | 3.5-inch SATA HDDs, 2.5-inch SATA HDDs/SSDs, NVMe SSDs (M.2 slots) |
| Max Storage / Pools | Maximum Volume Size: 250 TB (QTS) Maximum Pool Size (QTS): 308 TB Maximum Pool Size (QuTS hero): 5 PB Maximum Volume Size (QuTS hero): 5 PB |
| Included Accessories | Ethernet cable x2 Power cord x1 Flat head screws for 3.5" HDD x18 Flat head screws for 2.5" HDD x18 Drive tray keys x2 M.2 SSD heatsinks x2 Quick Installation Guide |
| Manufacturer Part Number | TS-H886-D1602-8G-US |
| Hot-swappable Drive Support | 3.5"/2.5" drive bays are hot-swappable (M.2 not hot-swappable) |
| Operating Systems (Supported) | NAS OS: QuTS hero h4.5.1 (ZFS), QTS 5.2.8 Client OS: [ "macOS 10.10 or later", "Windows 7 / 8 / 10 / 11", "Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, 2025", "Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later", "IBM AIX 7, Solaris 10 or later" ] |
| Performance & Data Protection | Block-level inline deduplication and compression Near-limitless snapshots; snapshot replication Real-time SnapSync ZFS self-healing and WORM support (QuTS hero) Multi-level cache: ARC (L1), L2 (SSD), ZIL (ZFS Intent Log) |
| Optional / Compatible Accessories | QNAP QM2 cards and various LAN/QXG expansion cards (5G/10G/25G/40G) Additional QNAP memory modules (recommended identical QNAP modules) Replacement/tray and cooling accessories listed by QNAP |
| Virtualization / Container Support | Virtualization Station, Container Station (notes: some apps require minimum RAM) |
QNAP TS-h886-D1602-8G, 8-Bay QuTS hero NAS, built-in 2 M.2 NVMe Gen3 x4 port, SATA 6G, Xeon D-1602 2.5GHz, 8GB ECC RAM, 4 x 2.5GbE, 3 Year WTY
