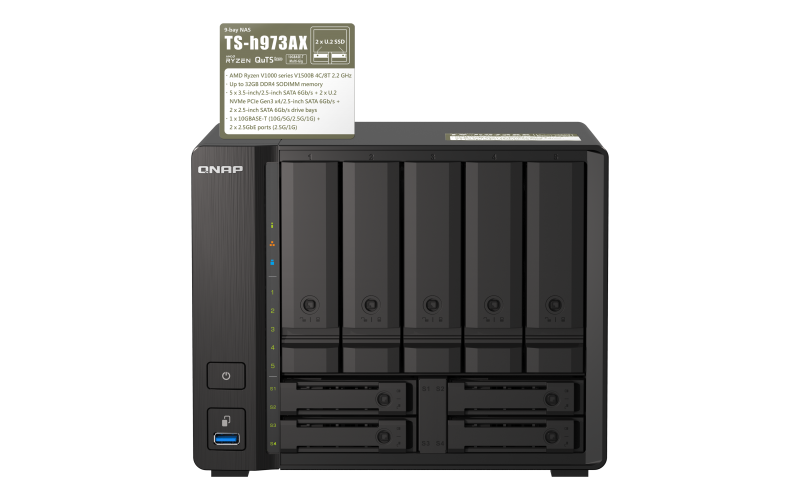

Qnap TS-h973AX-32G,9-bay Nas, AMD Ryzen V1500B 4C 8T 2.2GHz, 32GB DDR4 Sodimm, 5 X 2.5"/3.5" Sata 6Gbps + 2 X 2.5" U.2 NVMe PCIe Gen3 X4 / 2.5" Sata, 3 Yrs Wty TS-h973AX-32G
SKU
371079
Brand
MPN
TS-h973AX-32G
Warranty
Standard Manufacturer's Warranty
$3,568.00
Buy Now And Earn 3568 Reward Points!
QUICK OVERVIEW
+ 2 x 2.5" U.2 NVMe PCIe Gen3 x4 / 2.5" SATA, 3 Yrs WTY
TS-h973AX-32G,9-bay NAS, AMD Ryzen V1500B 4C 8T 2.2GHz, 32GB DDR4 SODIMM, 5 x 2.5"/3.5" SATA 6Gbps + 2 x 2.5" U.2 NVMe PCIe Gen3 x4 / 2.5" SATA 6Gbps + 2 x 2.5" SATA 6Gbps drive bays. 2 x 2.5GbE, 1 x 10GBASE-T Multi-Gig (10G/5G/2.5G/1G/100M), USB 3.2 Gen2 Type-A and Type-C, supports capacity expansion with QNAP TL and TR expansion enclosures
| UPC | 4713213518663 |
|---|---|
| GTIN | 4713213518663 |
| Brand | QNAP |
| Color | Black |
| Model | TS-h973AX-32G |
| Weight | 7.74 pounds |
| SKU/MPN | TSH973AX32G |
| Category | Storage |
| Material | Metal |
| Warranty | 3-year limited warranty (extension purchasable up to 5 years) |
| Processor | AMD Ryzen Embedded V1500B |
| USB Ports | 1 x USB 3.2 Gen2 Type-C; 3 x USB 3.2 Gen2 Type-A |
| Drive Bays | 9 hot-swappable drive bays |
| Encryption | AES-NI encryption support |
| Max Memory | Up to 64 GB DDR4 |
| Description | The QNAP TS-h973AX-32G is a 9-bay QuTS hero (ZFS-based) NAS powered by an AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor and shipped with 32 GB DDR4 (2 x SO-DIMM). It supports up to 64 GB DDR4 (optional ECC support) and combines high-capacity hybrid storage (five 3.5" SATA bays, two U.2 NVMe PCIe Gen3 x4 slots, and two 2.5" SATA SSD bays) with multi-gig networking (1x 10GBASE-T Multi-Gig and 2x 2.5GbE RJ45) for IOPS-intensive applications, virtualization, and business-class data protection. QuTS hero provides ZFS data integrity features, inline deduplication/compression/compaction, snapshots, SnapSync, QuDedup, SSD-aware acceleration and multi-level caching, plus virtualization support (Virtualization Station, Container Station) and enterprise certifications (VMware Ready, Microsoft Hyper-V, Citrix, Veeam Ready). Included accessories: 10GBASE-T Ethernet cable, power cord and 120W adapter, drive screws, drive-tray keys and a Quick Installation Guide. |
| File System | 128-bit ZFS (QuTS hero) |
| Memory Type | DDR4 (supports ECC memory) |
| Memory Slots | 2 x SO-DIMM |
| Model Family | TS-h973AX |
| RAID Support | RAID Z (including RAID Triple Parity and Triple Mirror) |
| SSD Features | SSD cache acceleration, Write Coalescing, Pool Over-provisioning, QSAL (QNAP SSD Antiwear Leveling), multi-level cache (L1 ARC, L2 ARC, ZIL) |
| Sub-Category | Network Attached Storage (NAS) |
| Network Ports | 1 x 10GBASE-T Multi-Gig (10G/5G/2.5G/1G/100M); 2 x 2.5GbE RJ45 |
| Product Title | QNAP TS-h973AX-32G 9-Bay QuTS hero NAS (AMD Ryzen V1500B, 10GbE/2.5GbE, 32GB DDR4) |
| Data Reduction | Inline deduplication, compression, compaction (inline deduplication requires at least 16 GB memory) |
| NVMe/SSD Slots | 2 x U.2 NVMe PCIe Gen3 x4 slots (slots 1 & 2 support U.2 NVMe or SATA); additional 2.5" SATA SSD bays for caching |
| Other Features | SSD-aware features and multi-level cache technology; cloud gateway and SaaS backup/recovery capabilities; designed for business-class performance and data integrity |
| Virtualization | Supports Virtualization Station and Container Station; virtualization certifications: VMware Ready, Microsoft Hyper-V, Citrix, Veeam Ready |
| Processor Speed | 2.2 GHz |
| Operating System | QuTS hero (ZFS-based) |
| CPU Cores/Threads | 4 cores / 8 threads |
| Drive Bay Details | 5 x 3.5-inch SATA 6Gb/s; 2 x 2.5-inch U.2 (NVMe PCIe Gen3 x4 or SATA) (slots 1 & 2); 2 x 2.5-inch SATA 6Gb/s SSD bays |
| What's in the box | TS-h973AX (preinstalled 32GB DDR4), 10GBASE-T Ethernet cable, Power cord, PWR-ADAPTER-120W-A01, 24 x 3.5" flat head screws, 32 x 2.5" flat head screws, 2 x drive tray keys, Quick Installation Guide |
| ECC Memory Support | Supported (using ECC memory requires removal of pre-installed memory; non-ECC and ECC memory cannot be mixed) |
| Memory (Installed) | 32 GB DDR4 (2 x SO-DIMM) |
| Snapshots & Backup | Snapshots, SnapSync (real-time), Snapshot Replica, HBS backup/restore, QuDedup |
| Ethernet Interfaces | 10GbE and 2.5GbE multi-gig Ethernet |
| M.2 Adapter Support | Supports QDA adapters (QDA-UMP, QDA-U2MP, QDA-UMP4) to use M.2 NVMe SSDs in U.2 slots |
| Included Accessories | 10GBASE-T Ethernet cable x1; Power cord x1; PWR-ADAPTER-120W-A01; Flat head screws for 3.5" HDD x24; Flat head screws for 2.5" HDD x32; Drive tray keys x2; Quick Installation Guide |
| Supported Drive Types | 3.5-inch SATA HDD, 2.5-inch SATA SSD, U.2 NVMe PCIe Gen3 x4 SSDs |
| Dimensions (W x D x H) | 8.8 x 8.8 x 7.2 inches (product) |
| Package Dimensions (L x W x H) | 15.9 x 14 x 10.7 inches (package) |
QNAP TS-h973AX-32G,9-bay NAS, AMD Ryzen V1500B 4C 8T 2.2GHz, 32GB DDR4 SODIMM, 5 x 2.5"/3.5" SATA 6Gbps + 2 x 2.5" U.2 NVMe PCIe Gen3 x4 / 2.5" SATA, 3 Yrs WTY
