Teltonika | PR2FK20M | 4 Pin Power Cable With 4-Way Screw Terminal Adds Di/Do Functionality And Allows For Direct Solar/DC Power TT.PR2FK20M
SKU
391622
Brand
MPN
TT.PR2FK20M
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$32.00
Buy Now And Earn 32 Reward Points!
Teltonika | PR2FK20M | 4 Pin Power Cable with 4-Way Screw Terminal Adds DI/DO Functionality and allows for Direct Solar/DC Power - Suitable for RUT2xx, RUT3xx, RUT9xx, TRB14x, TSW100

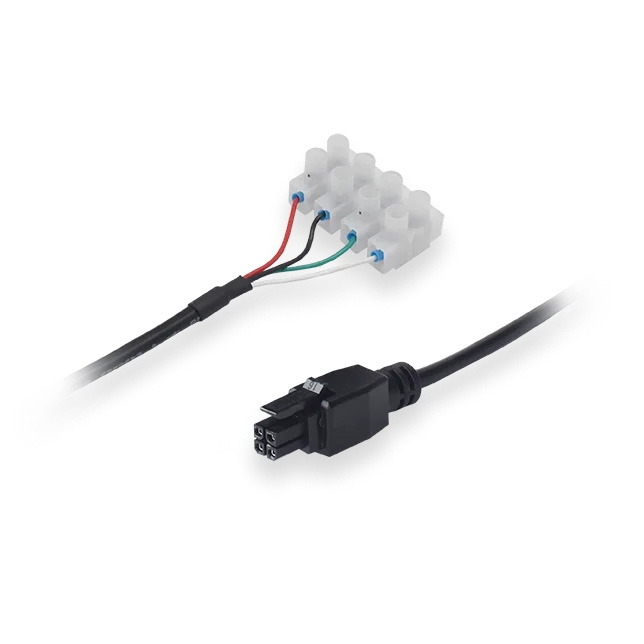

The PR2FK20M is a power cable with a 4-way screw terminal designed to be used with the RUT240AU, RUT241, RUT300, RUT360, RUT950AU, RUT951, RUT955AU, RUT956, TRB140AU, TRB141, TRB142AU, TRB145AU and TSW100.
SPECIFICATIONS
Input connector: 4-way screw terminal
Output connector: 4-pin, 3mm pitch
Cable: 4 x 0.129 mm² (26 AWG)
RoHS Compliant: ✓
Color coding
1 Red: Power +
2 Black: Ground -
3 Green: Input/Output/NC
4 White: Input/Output/NC
WARRANTY
2-years limited warranty
The PR2FK20M is a power cable with a 4-way screw terminal designed to be used with the RUT240AU, RUT241, RUT300, RUT360, RUT950AU, RUT951, RUT955AU, RUT956, TRB140AU, TRB141, TRB142AU, TRB145AU and TSW100.
SPECIFICATIONS
Input connector: 4-way screw terminal
Output connector: 4-pin, 3mm pitch
Cable: 4 x 0.129 mm² (26 AWG)
RoHS Compliant: ✓
Color coding
1 Red: Power +
2 Black: Ground -
3 Green: Input/Output/NC
4 White: Input/Output/NC
WARRANTY
2-years limited warranty
| Brand | Teltonika |
|---|---|
| Manufacturer Part# | PR2FK20M |
Teltonika | PR2FK20M | 4 Pin Power Cable with 4-Way Screw Terminal Adds DI/DO Functionality and allows for Direct Solar/DC Power
