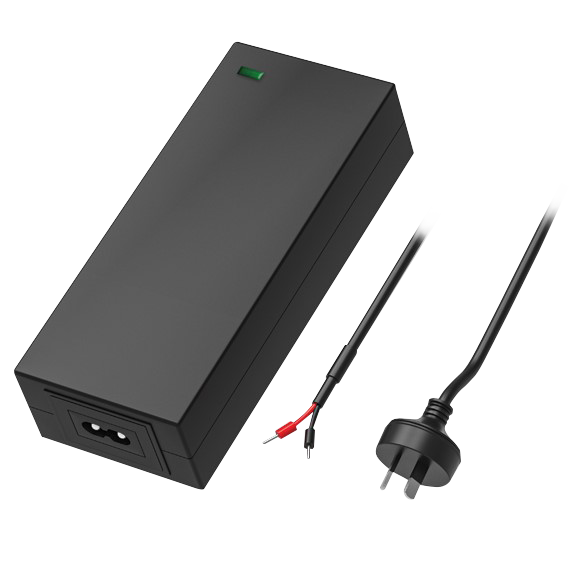

Teltonika | PR317AUA | 2 Pin AU Power Supply Unit 62W | Suitable for TSW200
The PR317AUA is designed to be used with the TSW200. It has an AU plug and support input voltage fromm 100 VAC to 240VAC.
SPECIFICATIONS
Input voltage: 100 - 240 VAC
Input voltage range: 90 - 264 VAC
Input frequency: 50/60 Hz
Input frequency range: 47 - 63 Hz
Input current: 1.5 A
Maximum input inrush current: 50 A
Input connector: AU (Type I)
Output voltage: 48 VDC
Output voltage maximum deviation: 45.6 - 50.4 VD
Output current: 1.3 A
Output connector: 2-PIN, with cord end terminals
Weight: 330 g
Short circuit protection: ✓
HIPOT (dielectric withstand test): Primary to Secondary 4000 VDC
MTBF: 50000 h
Certification: Safety: AS/NZS 61558.1:2008 + A1:2009 + A2:2015, AS/NZS 61558.2.16:2010 + A1:2010 + A2:2012 + A3:2014 EMC: AS/NZS CISPR 14:2013
WARRANTY
2-years limited warranty
The PR317AUA is designed to be used with the TSW200. It has an AU plug and support input voltage fromm 100 VAC to 240VAC.
SPECIFICATIONS
Input voltage: 100 - 240 VAC
Input voltage range: 90 - 264 VAC
Input frequency: 50/60 Hz
Input frequency range: 47 - 63 Hz
Input current: 1.5 A
Maximum input inrush current: 50 A
Input connector: AU (Type I)
Output voltage: 48 VDC
Output voltage maximum deviation: 45.6 - 50.4 VD
Output current: 1.3 A
Output connector: 2-PIN, with cord end terminals
Weight: 330 g
Short circuit protection: ✓
HIPOT (dielectric withstand test): Primary to Secondary 4000 VDC
MTBF: 50000 h
Certification: Safety: AS/NZS 61558.1:2008 + A1:2009 + A2:2015, AS/NZS 61558.2.16:2010 + A1:2010 + A2:2012 + A3:2014 EMC: AS/NZS CISPR 14:2013
WARRANTY
2-years limited warranty
