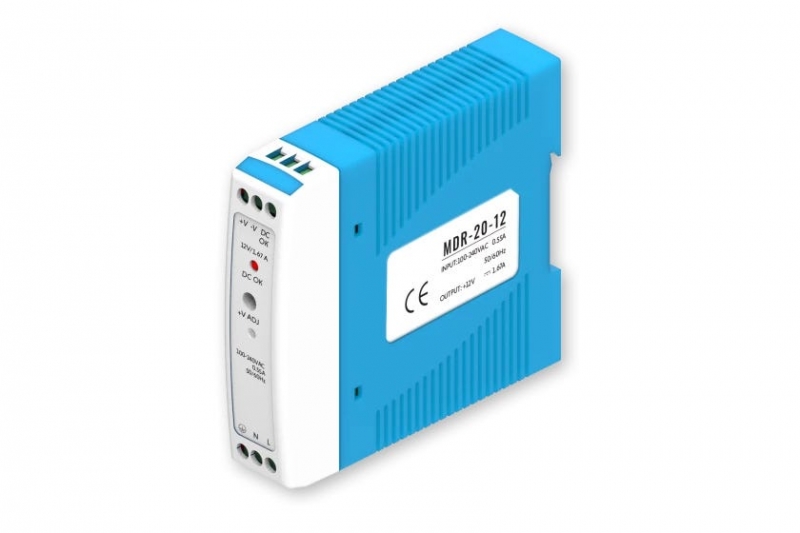

Teltonika | PR3PDNP0 | DIN Rail Power Supply Unit 20W | Suitable for RUT2xx, RUT9xx, RUT3xx, RUTXxx, TRB14x, TRB24x, TRB500, TSW010, TSW304

The PR3PDNP0 is designed to be used with the RUT240AU, RUT241, RUT300, RUT360, RUT950AU, RUT951, RUT955AU, RUT956, RUTX08, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14, RUTX50, RUTXR1, TRB140AU, TRB141, TRB142AU, TRB145AU, TRB245AU, TRB255, TRB500, TSW010, TSW304.

SPECIFICATIONS
Single output power: 20 W
Input voltage: 100 – 240 VAC
Input frequency: 50 / 60 Hz
DC output voltage: 12 V
DC output current: 0 – 1.67 A
Output ripple and noise: 120 mVp-p
Line regulation: ±1 %
Load regulation: ±1 %
Efficiency: c
Adjustable range for DC voltage: ±1 %
Maximum input inrush current: Cold start current 20 A / 115 VAC; 40 A / 230 VAC
Overload protection: 105 % ~ 160 % cut off the output, automatic recovery
Over voltage protection: 120 % ~ 140 % shut down O/P voltage, off/on cycle required for recovery
Setup, rise, hold up time: 500 ms, 30 ms / 230 VAC at full load; 1000 ms, 30 ms / 115 VAC at full load
Withstand voltage: I/P-O/P: 1.5 kV; I/P-FG: 1.5 kV; O/P-FG: 0.5 kV 1 minute
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 500 VDC / 1000 MΩ
Working temperature: –10 °C ~ +50 °C
Mounting options: 35 mm DIN Rail
Dimensions: 22.5 x 90 x 100 mm
Weight: 1900g
Certification: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 55022:2010, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010/A1:2015
WARRANTY

2-years limited warranty
