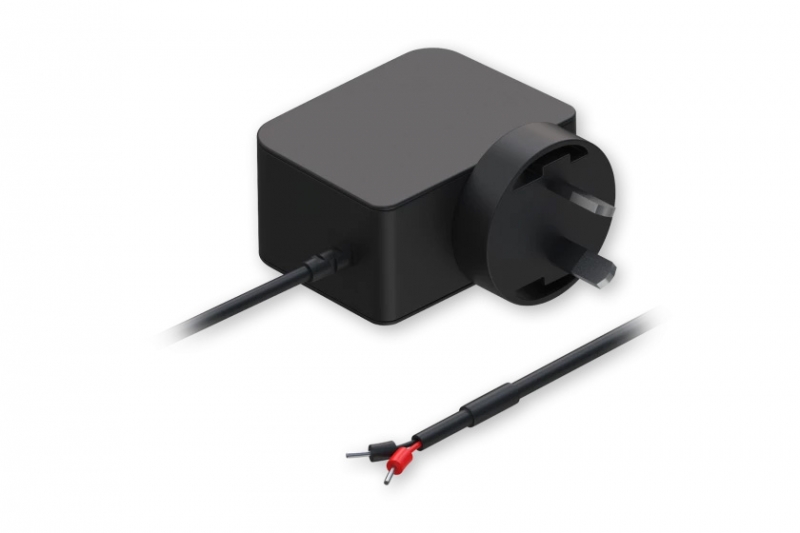

Teltonika | PR3PRAU6 | 2 Pin AU Power Supply Unit 9W - TT.PR3PRAU6

SKU
425205
Brand
MPN
TT.PR3PRAU6
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $33.00 Regular Price $38.00
Buy Now And Earn 33 Reward Points!

Teltonika | PR3PRAU6 | 2 Pin AU Power Supply Unit 9W | Suitable for TRB2xx, TSW010, TSW114, TSW210, TSW304

The PR3PRAU6 is designed to be used with TRB245AU, TRB255, TSW010, TSW114TSW210, TSW304.

SPECIFICATIONS

  • Input voltage: 100 – 240 VAC
  • Input frequency: 50 / 60 Hz
  • Input current: 0.45 A
  • Input connector: AU (Type I)
  • Output voltage: 9 VDC
  • Output current: 1.0 A
  • Output connector: 2-pin, with cord end terminals
  • Weight: 81g
  • Input voltage range: 90 – 264 VAC
  • Input frequency range: 47 – 63 Hz
  • Maximum input inrush current: 60 A
  • Output voltage maximum deviation: 8.55 – 9.45 VDC
  • Short circuit protection: Yes
  • HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC
  • MTBF: 30000 h
  • PSU efficiency standard: DoE Level VI
  • Certification: Safety: AS/NZS 62368.1:2018, AS/NZS 3112:2017, EMC: EN 55032:2015

WARRANTY

2-years limited warranty



Specifications

More Information
SKU TT.PR3PRAU6
Brand Teltonika
Manufacturer Part# PR3PRAU6
Length 2m
Colour Black
Warranty 2 Years
