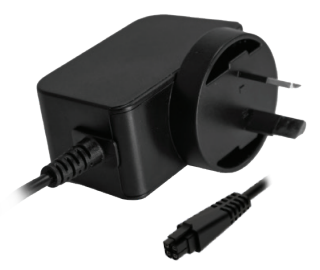

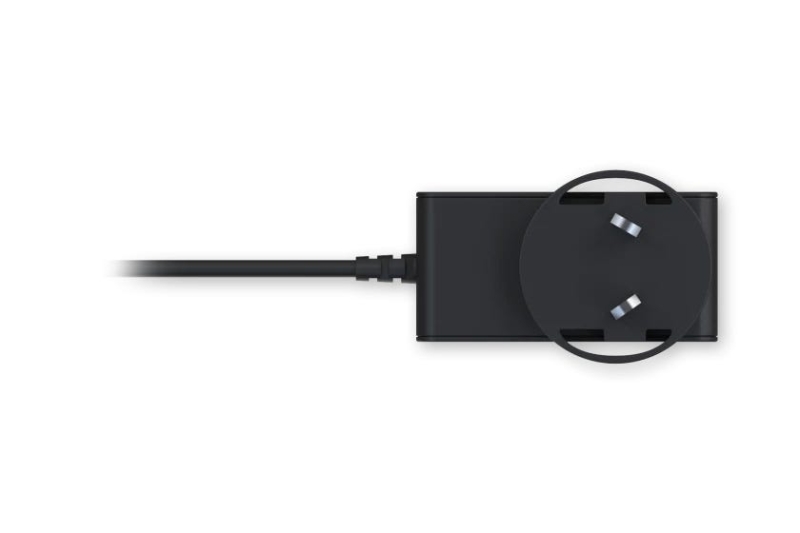

Teltonika | PR3PUAU3 | 4 Pin Replacement AU Power Supply Unit 9W - TT.PR3PUAU3
SKU
425206
Brand
MPN
TT.PR3PUAU3
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $33.00 Regular Price $38.00
Buy Now And Earn 33 Reward Points!
Teltonika | PR3PUAU3 | 4 Pin Replacement AU Power Supply Unit 9W | Suitable for RUT2xx, RUT9xx, RUT300, TRB14x, TRB500, TSW110
The PR3PUAU3 is designed to be used with the RUT240AU, RUT241, RUT300, RUT950AU, RUT951, RUT955AU, RUT956, TRB140AU, TRB141, TRB142AU, TRB145AU, TRB500 and TSW110. It has an AU plug and supports input voltage from 100VAC to 240VAC.
SPECIFICATIONS
- Input voltage: 100 - 240 VAC
- Input voltage range: 90 - 264 VAC
- Input frequency: 50/60 Hz
- Input frequency range: 47 - 63 Hz
- Input current: 0.45 A
- Maximum input inrush current: 60 A
- Input connector: AU (Type I)
- Output voltage: 9 VDC
- Output voltage maximum deviation: 8.55 - 9.45 VDC
- Output current: 1.0 A
- Output connector: 4-PIN, 3 mm pitch
- Weight: 80 g
- Short circuit protection: ✓
- HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC
- MTBF: 30000 h
- Certification:
Safety: AS/NZS 62368-1: 2018, AS/NZS 3112: 2017, IEC 62368-1:2014/A11:2017 (CB Scheme)
EMC: EN 55032:2015, EN 55035:2017, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004, EN 61347-1:2015, EN 61347-2-13:2014/A1:2017, EN 62493:2015
WARRANTY
2-years limited warranty
Specifications
| SKU | TT.PR3PUAU3 |
|---|---|
| Brand | Teltonika |
| Manufacturer Part# | PR3PUAU3 |
| Connector A | Australian Mains (3 pin 240V AC) |
| Connector B | 4-pin, 3mm pitch |
| Length | 2m |
| Colour | Black |
| Suitable for | RUT300, RUTX08, RUTX10, TSW100, TSW110 |
| Warranty | 2 Years |
