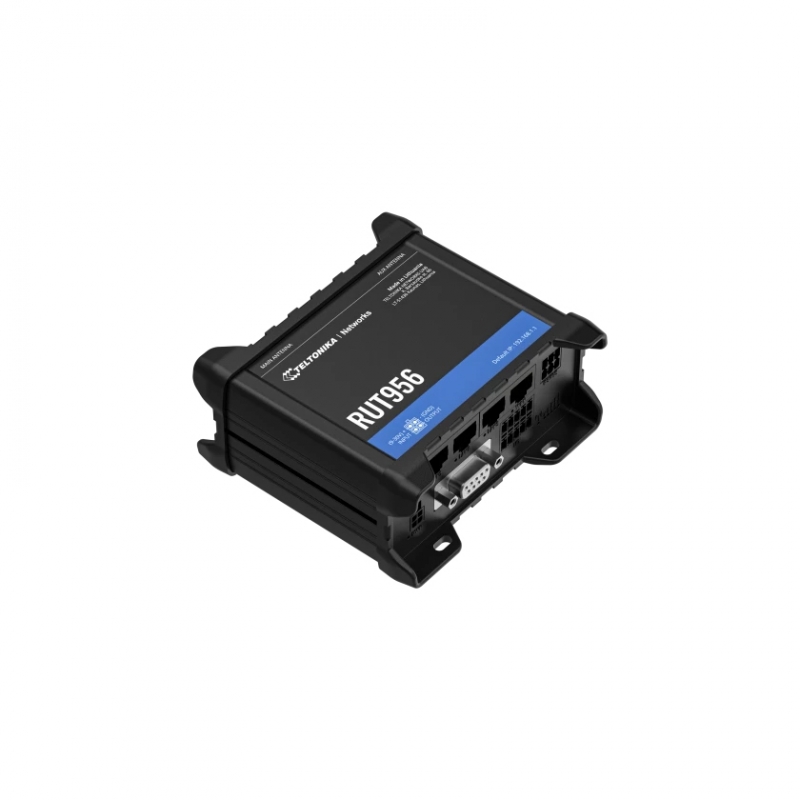

Teltonika | RUT956 | Dual SIM Advanced 4G LTE CAT4 Industrial Router

Industrial Cellular Router

The RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.

FEATURES
Connectivity: 4G LTE (CAT4), 3G, 2G
Dual SIM: With auto-failover, backup WAN and other switching scenarios
Multiple Interfaces: Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs
GNSS: Global Navigation Satellite System for location services and time synchronization
CONTENTS
Router RUT956
9W PSU included
2 x LTE antennas (magnetic mount, SMA male, 3m cable)
2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5m cable)
GNSS antenna (adhesive, SMA male, 3m cable)
RS485 connector block
I/O connector block
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide)
ACCESSORIES (Not included)
Power Supply Unit (Alternative):
TT.PR2FK20M | Power Cable with 4-Way Screw Terminal
TT.PR2PL15B | Power Cable with 4-Way Open Wire
TT.PR2PD01B | 4-PIN to Barrel Socket Adapter
TT.PR2AM20M | Automotive 12v Power Supply Unit
Mounting Options:
TT.PR5MEC12 | Surface Mounting Kit
TT.PR5MEC11 | Compact DIN Rail Kit
TT.PR5MEC00 | Large DIN Rail Kit
WARRANTY

2-years limited warranty
