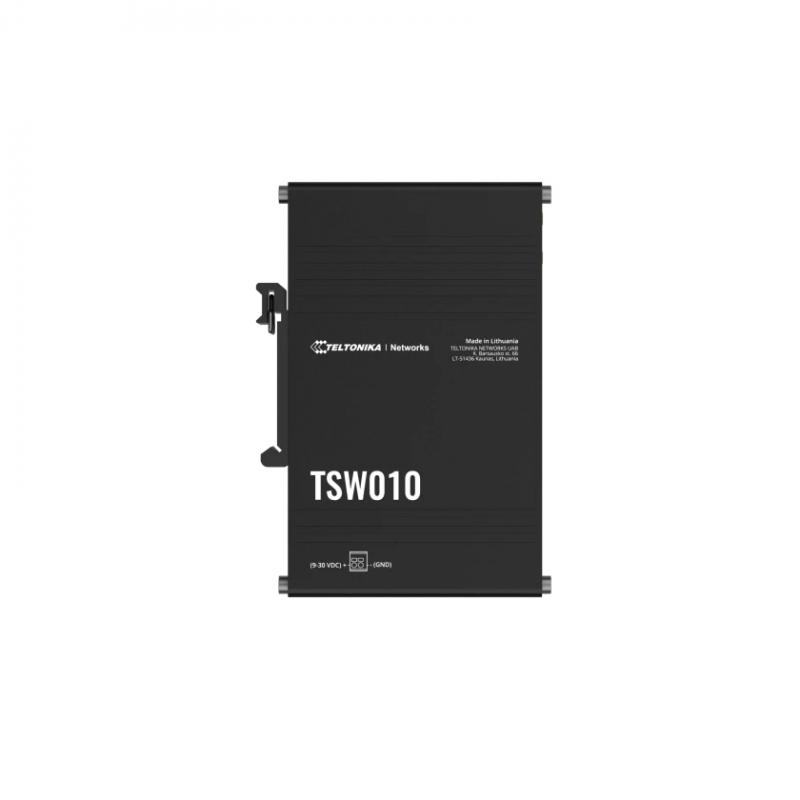

Teltonika | TSW010 | 5 Port Industrial DIN Rail Unmanaged Ethernet Switch

DIN Rail Switch

The TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

FEATURES
Plug and Play: No additional configuration is needed
Mounting: Integrated DIN rail bracket and surface mounting options
Industrial Design: Anodized aluminum housing and panels
Ethernet: 5 x Ethernet ports with speeds of up to 1000 Mbps
SPECIFICATIONS
Bandwidth (Non-blocking): 1 Gbps
MAC address table size: 2K entries
Jumbo frame support: Store-and-Forward
Connector: 2-pin industrial DC power socket
Input voltage range: 9 - 30 VDC
PoE (passive): Passive PoE. Possibility to power up through the first LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power Consumption: Idle: 0.3 W / Max: 0.9 W
Ethernet: 5 x RJ45 ports, 10/100 Mbps
Dimensions: 113.1W x 27.4H x 80.5D mm
Weight: 146.5 g
Mounting options: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
Operating temperature: -40 °C to 75 °C
Operating humidity: 10 % to 90 % non-condensing
Ingress Protection Rating: IP30
Regulatory: CE, REACH, RoHS, WEEE UKCA, FCC, IC, CB, RCM
Standards: EN IEC 62368-1:2020+A11:2020
CONTENTS
TSW010
QSG (Quick Start Guide)
ACCESSORIES (Not included)
Power Supply Unit:
TT.PR3PRAU6 | AU 2-Pin Power Supply 9W
TT.PR3PDNP0 | DIN Rail Power Supply Unit 20W
Mounting Options:
TT.PR5MEC12 | Surface mounting KIT
WARRANTY

2-years limited warranty
