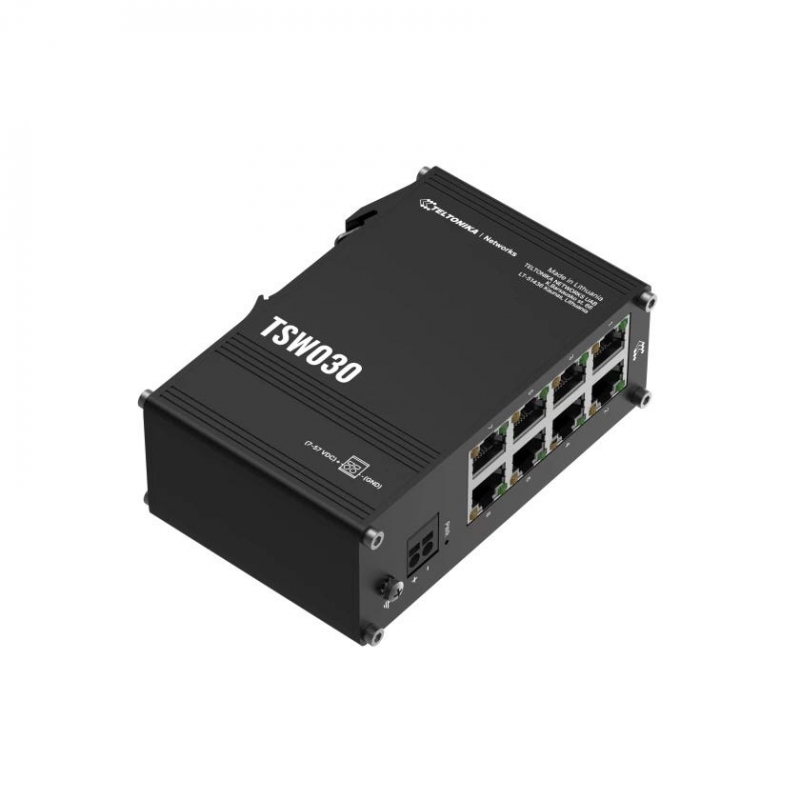

Teltonika | TSW030 | 8 Port Industrial Unmanaged Ethernet Switch ** PSU not included ** - TT.TSW030
The Teltonika TSW030 is a cost-effective, unmanaged Ethernet switch designed to enhance industrial network connectivity. Featuring eight 10/100 Mbps RJ45 ports, it facilitates seamless integration of multiple devices, ensuring stable and efficient data transmission. Its compact, rugged design and integrated DIN rail mounting make it an ideal choice for industrial environments requiring reliable and straightforward networking solutions.
FEATURES:
- Eight 10/100 Mbps Ethernet ports for seamless device connectivity
- Low power consumption: 0.5 W (idle), up to 1.5 W (max)
- Integrated DIN rail mounting for easy installation
- Compact and rugged design with anodized aluminum housing
- Plug-and-play functionality for quick setup
SPECIFICATIONS:
- Ethernet: 8 x RJ45 ports, 10/100 Mbps, supports auto MDI/MDIX crossover
- Bandwidth (Non-blocking): 20 Gbps
- Packet buffer: 128 KB
- MAC address table size: 2K entries
- Jumbo frame support: 9216 bytes
- Power input: 2-pin industrial DC power socket, 7–57 VDC
- Dimensions (W x H x D): 113.1 x 41.2 x 74.6 mm
- Weight: 256 g
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
CONTENTS:
- TSW030
- Quick Start Guide
ACCESSORIES (Not Included):
- Power Supply Unit:
- Mounting Options:
WARRANTY:
1-Year Limited Warranty
Specifications
| SKU | TT.TSW030 |
|---|---|
| Weight | 0.190000 |
| Brand | Teltonika |
| Manufacturer Part# | TSW030000000 |
| Series | Teltonika Industrial Ethernet Switch |
| Form Factor | Desktop/Din-Rail Mount Option |
| PoE | Passive PoE |
| SFP | No SFP |
| Total Ports | 8 |
| Predominant Port Type | Fast Ethernet Copper |
| Colour | Black |
| Management Type | Unmanaged |
| Warranty | 2 Years |
The Teltonika TSW030 is a cost-effective, unmanaged Ethernet switch designed to enhance industrial network connectivity. Featuring eight 10/100 Mbps RJ45 ports, it facilitates seamless integration of multiple devices, ensuring stable and efficient data transmission. Its compact, rugged design and integrated DIN rail mounting make it an ideal choice for industrial environments requiring reliable and straightforward networking solutions.
FEATURES:
- Eight 10/100 Mbps Ethernet ports for seamless device connectivity
- Low power consumption: 0.5 W (idle), up to 1.5 W (max)
- Integrated DIN rail mounting for easy installation
- Compact and rugged design with anodized aluminum housing
- Plug-and-play functionality for quick setup
SPECIFICATIONS:
- Ethernet: 8 x RJ45 ports, 10/100 Mbps, supports auto MDI/MDIX crossover
- Bandwidth (Non-blocking): 20 Gbps
- Packet buffer: 128 KB
- MAC address table size: 2K entries
- Jumbo frame support: 9216 bytes
- Power input: 2-pin industrial DC power socket
