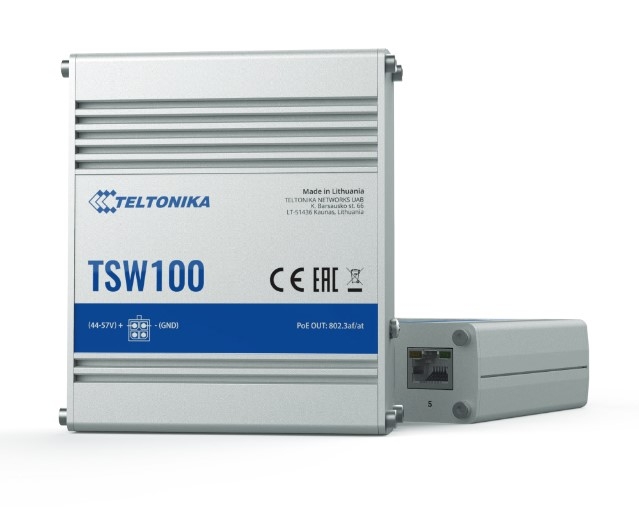

Teltonika | TSW100 | 5 Port Industrial Unmanaged Gigabit Switch with 4 Port PoE+, Plug-N-Play

Industrial Unmanaged PoE+ Switch

The TSW100 is the first industrial unmanaged switch from Teltonika Networks. TSW100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).

Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.

This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

FEATURES
Durable and Rugged aluminum housing
Total power budget at PSE up to 120w
4 x PoE ports with 802.3af and 802.3at support
Plug-N-Play with no additional configuration needed
5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
SPECIFICATIONS
Ethernet LAN: 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PoE ports: Port 1- 4
PoE standards: 802.3af and 802.3at
PoE Max Power per Port: (at PSE) 30 W
Total PoE Power Budget: (at PSE) 120 W
Bandwidth: (Non-blocking) 10 Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Connector: 4 pin industrial DC power socket
Input voltage range: 7-57 VDC
Input voltage range for PoE: 44-57 VDC
Power consumption: (idle/max no PoE/max) 2 W/9 W/129 W
Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LED’s: 1 x Power LED, 10 x LAN status LED’s
Power: 1 x 4 pin DC connector
Ground: 1 x Grounding screw
Casing material: Full aluminum housing
Dimensions: (W x H x D) 115 x 32 x 95 mm
Weight: 350 g
Mounting: DIN rail or wall mounting (additional kit needed), flat surface placement
Operating temperature: -40 °C to +75 °C
Operating humidity: 10% to 90% non-condensing
CONTENTS
TSW100
65 W PSU
QSG (Quick Start Guide)
ACCESSORIES (Not included)
Power Supply Unit:
TT.PR2FK20M | Power cable with 4-way screw terminal
TT.PR2PL15B | Power cable with 4-way open wire
TT.PR2PD01B | 4-PIN to barrel socket adapter
TT.PR2AM20M | Automotive 12/24V
Mounting Options:
TT.PR5MEC12 | Surface mounting KIT
TT.PR5MEC11 | Compact 35mm DIN Rail KIT
TT.PR5MEC00 | Large DIN Rail KIT
WARRANTY

2-years limited warranty
