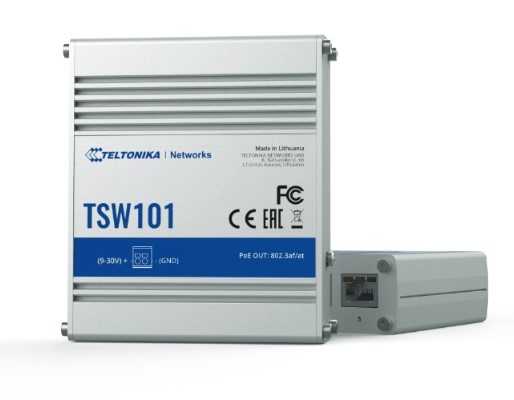

Teltonika | TSW101 | 5 Port Automotive Unmanaged Gigabit Switch with 4 Port PoE+ ** PSU not included **

Automotive PoE+ Switch

The TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch. Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards. With a wide range of supported power supply voltages (9-30 VDC), and its compact size it can slot into many automotive applications.

Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts. While also providing 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions. Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously

FEATURES
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PoE ports Port 1- 4
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 60 W
Maximum Ethernet cable length 100 m
SPECIFICATIONS
Bandwidth: (Non-blocking) 10 Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes
Connector: 2-pin industrial DC power socket
Input voltage range: 9-30 VDC
Input voltage range for PoE: 9-30 VDC
Power consumption Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W
Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED, 10 x LAN status LEDs
Power: 1 x 2-pin industrial DC power socket
Ground: 1 x Grounding screw
Casing material: Aluminum housing
Dimensions: (W x H x D) 115 x 32 x 95 mm
Weight: 354 g
Mounting: DIN rail or wall mounting (additional kit needed), flat surface placement
Operating temperature: -40 °C to +75 °C
Operating humidity: 10 % to 90 % non-condensing
Ingress Protection Rating: IP30
Regulatory: CE, REACH, RoHS, WEEE, CE, UKCA, FCC, IC, CB, RCM and E-Mark
CONTENTS
TSW101
QSG (Quick Start Guide)
ACCESSORIES (Not included)
Power Supply Unit (REQUIRED):
TT.PR2FK20M | Power cable with 4-way screw terminal
TT.PR2PL15B | Power cable with 4-way open wire
TT.PR2PD01B | 4-PIN to barrel socket adapter
TT.PR2AM20M | Automotive 12/24V
Mounting Options:
TT.PR5MEC12 | Surface mounting KIT
TT.PR5MEC11 | Compact 35mm DIN Rail KIT
TT.PR5MEC00 | Large DIN Rail KIT
WARRANTY

2-years limited warranty
