Teltonika | TSW110 | 5 Port Industrial L2 Unmanaged Gigabit Switch, non-PoE, Plug-N-Play

L2 Unmanaged Switch

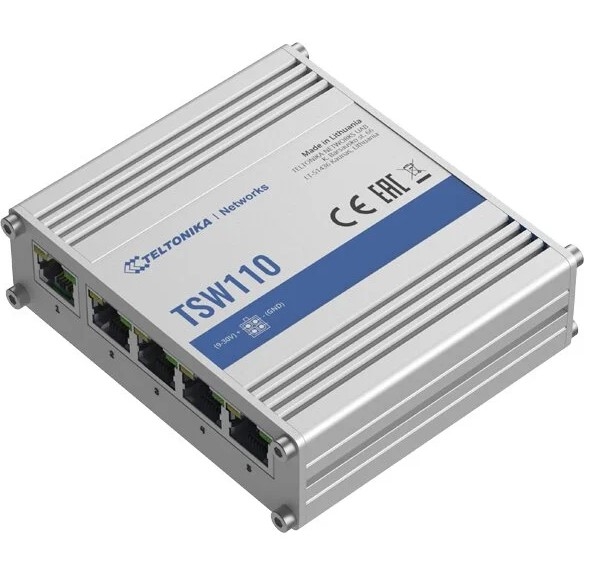

The TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100. Simple to power up using passive POE through the first LAN port. It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. It also offers a wide range of supported power supply voltages (9-30 V).

Ideal for professional high-bandwidth applications to provide reliable data connection.

FEATURES
5 x Gigabit Ethernet with speeds up to 1000 Mbps
Plug-N-Play No additional configuration is needed
Rugged aluminium housing
DIN rail and surface mounting options
STATUS LEDS - 1 x Power, 10 x Ethernet
9-30 V - Wide range of supported power supply voltages
SPECIFICATIONS
Bandwidth: (Non-blocking) 10 Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Connector: 4 pin industrial DC power socket
Input voltage range: 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
Passive PoE: Power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption: (idle/max) < 0.4 W/ <1.8 W
Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED, 10 x LAN status LEDs
Power: 1 x 4 pin DC connector
Ground: 1 x Grounding screw
Casing material: Full aluminum housing
Dimensions: (W x H x D) 100 x 30 x 85 mm
Weight: 227 g
Mounting options: DIN rail or wall mounting (additional kit needed), flat surface placement
Operating temperature: -40 C to 75 C
Operating humidity: 10 % to 90 % non-condensing
CONTENTS
TSW110
9 W PSU
QSG (Quick Start Guide)
ACCESSORIES (Not included)
Power Supply Unit:
TT.PR2FK20M | Power cable with 4-way screw terminal
TT.PR2PL15B | Power cable with 4-way open wire
TT.PR2PD01B | 4-PIN to barrel socket adapter
TT.PR2AM20M | Automotive 12/24V
Mounting Options:
TT.PR5MEC12 | Surface mounting KIT
TT.PR5MEC11 | Compact DIN Rail KIT
TT.PR5MEC00 | Large DIN Rail KIT
WARRANTY

2-years limited warranty
