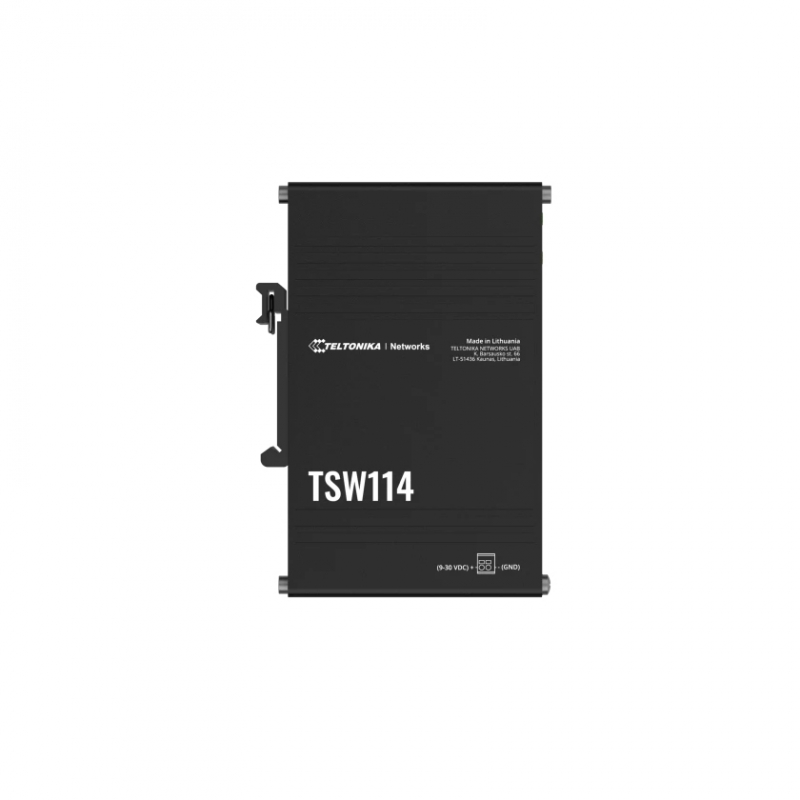

main product photo

Teltonika | TSW114 | 5 Port Industrial DIN Rail Unmanaged Gigabit Switch, Plug-N-Play - TT.TSW114

SKU
425223
Brand
Teltonika
Manufacturer Link
MPN
TT.TSW114
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $119.00 Regular Price $136.00
Buy Now And Earn 119 Reward Points!
Add to Compare

Teltonika | TSW114 | 5 Port Industrial DIN Rail Unmanaged Gigabit Switch, Plug-N-Play



Gigabit DIN Rail Switch

The TSW114 is an affordable way to simplify your connectivity with its Plug-N-Play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.

FEATURES

  • Easy Mounting: Integrated DIN rail bracket and front-facing ports
  • Gigabit Ethernet: 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
  • Compact and Durable: Rugged anodized aluminum housing that fits in your pocket
  • Plug and Play: No additional configuration is needed

SPECIFICATIONS

  • Bandwidth (Non-blocking): 10 Gbps
  • Packer buffer: 128 KB
  • MAC address table size: 2K entries
  • Jumbo: Frame Support: 9216 bytes
  • Connector: 2-pin industrial DC power socket
  • Input voltage range: 9 - 30 VDC
  • Passive PoE: Over spare pairs. Power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
  • Power consumption Idle: 0.3 W / Max: 2.3 W
  • Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
  • Status LEDs: 1 x Power LED, 10 x LAN status LEDs
  • Power: 1 x 2 pin industrial DC power socket
  • Ground: 1 x Grounding screw
  • Casing material: Anodized aluminum housing and panels
  • Dimensions: 113.1 x 27.4 x 80.5 mm
  • Weight: 174g
  • Mounting options: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
  • Operating temperature: -40 C to 75 C
  • Operating humidity: 10% to 90% non-condensing
  • Ingress Protection Rating: IP30
  • Compliance: IEEE 802.3, IEEE 802.3u, 802.3az standards, Supports auto MDI/MDIX crossover

CONTENTS

  • TSW114
  • QSG (Quick Start Guide)

ACCESSORIES (Not included)

WARRANTY

2-years limited warranty



Specifications

More Information
SKU TT.TSW114
Brand Teltonika
Manufacturer Part# TSW11400B000
GTIN 4779027312828
PoE No PoE
Total Ports 5
Colour Black
Management Type Unmanaged
Warranty 2 Years
