Teltonika | TSW304 | 4 Port Gigabit DIN Rail Unmanaged Switch ** Passive PoE over spare pairs **

Industrial Unmanaged DIN-Rail Switch

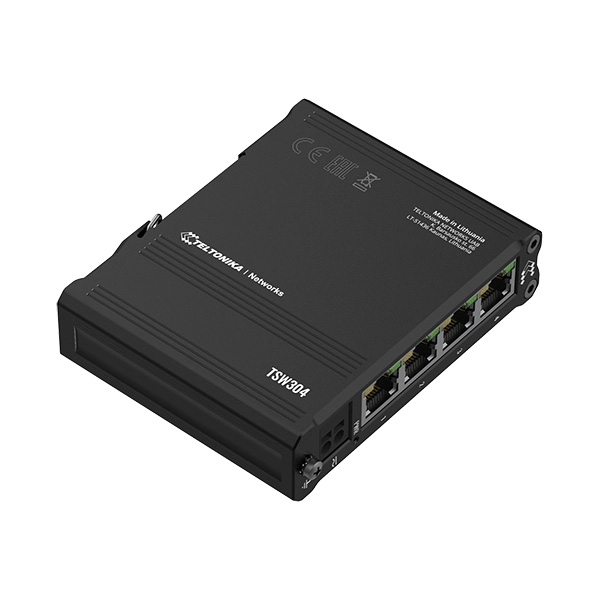

The TSW304 is Teltonika Networks' first unmanaged switch with an integrated, built-in DIN rail mount. Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.

The TSW304 is designed with easy installation in mind. It features a compact size with a shock-resistant aluminum casing to go along with its integrated DIN mount, a 2-pin industrial power socket, and a wide range of supported power supply voltages from 7-57 VDC and 9-40 VAC.

FEATURES
4 x Gigabit Ethernet with speeds up to 1000 Mbps
Complies with IEEE 802.3, IEEE 802.3u, 802.3az standards
Supports auto MDI/MDIX crossover
PLUG-N-PLAY No additional configuration is needed
Rugged shock-resistant aluminum housing
Integrated DIN Rail Mount
Supported power supply voltages from 7-57 VDC and 9-40 VAC
SPECIFICATIONS
Bandwidth: (Non-blocking) 8 Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes
Power connector: 2-pin power socket
Input voltage range: 7 - 57 VDC; 9 - 40 VAC
Passive PoE input port: No. 1
Power consumption Idle: 0.26 W / Max: 1.44 W
Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED, 8 x LAN status LEDs
Power: 1 x 2-pin power socket
Ground: 1 x Grounding screw
Casing material: Aluminum housing
Dimensions: (W x H x D) 102x25x81.5 mm
Weight: 210 g
Mounting options: DIN rail mounting
Operating temperature: -40 C to 75 C
Operating humidity: 10 % to 90 % non-condensing
Ingress Protection Rating: IP30
Regulatory & Type Approvals: Regulatory CE, REACH, RoHS, WEEE TSW304 UKCA, FCC, IC, CB, RCM
Safety Standard: EN IEC 62368-1:2020+A11:2020
CONTENTS
TSW304
QSG (Quick Start Guide)
ACCESSORIES (Not included)
Power Supply Unit (REQUIRED):
TT.PR2FK20M | Power cable with 4-way screw terminal
TT.PR2PL15B | Power cable with 4-way open wire
TT.PR2PD01B | 4-PIN to barrel socket adapter
TT.PR2AM20M | Automotive 12/24V
Mounting Options:
TT.PR5MEC12 | Surface mounting KIT
TT.PR5MEC11 | Compact 35mm DIN Rail KIT
TT.PR5MEC00 | Large DIN Rail KIT
WARRANTY

2-years limited warranty
