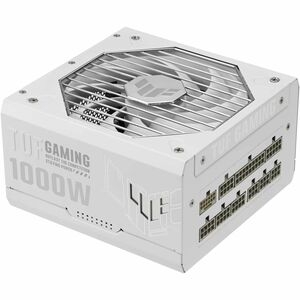

Asus TUF Gaming TUF-GAMING-1000G-WHITE ATX12V, ATX 3.0 Modular Power Supply - 1 kW - Internal - 120 V AC, 230 V AC Input - 3.3 V DC Output - 1 Fan(s) - 92% Efficiency TUF-GAMING-1000G-WHITE
Asus TUF Gaming TUF-GAMING-1000G-WHITE ATX12V, ATX 3.0 Modular Power Supply - 1 kW - Internal - 120 V AC, 230 V AC Input - 3.3 V DC Output - 1 Fan(s) - 92% Efficiency
Built For The Long Haul
The ASUS TUF Gaming 1000W Gold White Edition packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
Durability | TUF Components | Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours' lifespan, the ASUS TUF Gaming 1000W Gold White Edition empowers you to build in confidence.
Dual Ball Fan Bearings | 2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
ENGINEERING | 80 Plus Gold Certification | Heart of gold
The TUF Gaming 1000W Gold White Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation - affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible | Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold White Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Axial-tech Fan Design | Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
EXPERIENCE | 10-year Warranty | A decade of power
We're so confident about the reliability of the TUF Gaming 1000W Gold White Edition that we back it with a 10-year warranty.
Fully Modular Etched Cables | Supple ply
The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.
- Capacitors and chokes pass demanding tests to achieve
- Military-grade Certification.
- Dual ball fan bearings
- can last up to twice as long as sleeve bearing designs.
- A
- protective PCB coating
- protects against moisture, dust, and extreme temperatures.
- An
- 80 Plus Gold Certification
- is the result of Japanese capacitors and other premium components.
- Axial-tech fan design
- features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Fully modular etched cables
- keep your rig neat and tidy.
- 10-year warranty
- included.
| Environmentally Friendly | Yes |
| Environmental Certification | 80 Plus Gold |
| RoHS |
| Weight (Approximate) | 2.48 kg |
| Form Factor | Internal |
| Height | 150 mm |
| Width | 150 mm |
| Depth | 86 mm |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Power | 1 kW |
| Output Voltage | 12 V DC |
| -12 V DC | |
| 3.3 V DC | |
| 5 V SB | |
| 5 V DC | |
| Output Current | 3 A |
| 800 mA | |
| 83.30 A | |
| 25 A |
| Product Type | Power Supply |
| Manufacturer Part Number | TUFGAMING1000GWHITE |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | TUF-GAMING-1000G-WHITE |
| Product Name | TUF Gaming TUF-GAMING-1000G-WHITE 1000W Power Supply |
| Product Line | TUF Gaming |
| Brand Name | Asus |
| Efficiency | 92% |
| Protection Type | Short Circuit |
| Over Voltage | |
| Over Temperature | |
| Over Power | |
| Under Voltage | |
| Over Current | |
| Number of Fans | 1 |
| Modular | Yes |
| Specification Compliance | ATX12V |
| ATX 3.0 |
