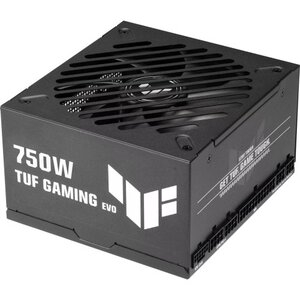

Asus Tuf Gaming 750G Evo - 750W - 80 Plus Gold - Atx 3.1 - PCIe 5.1 Ready - Fully Modular TUF-GAMING-750G-EVO
SKU
443669
Brand
MPN
TUF-GAMING-750G-EVO
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$161.00
Buy Now And Earn 161 Reward Points!
ASUS TUF Gaming 750G EVO - 750W - 80 Plus Gold - ATX 3.1 - PCIe 5.1 Ready - Fully Modular
| Product Type | Power Supply |
| Input Voltage | 120 V AC, 230 V AC |
| Output Power | 750 W |
| Output Voltage | 5 V SB, 12 V DC, 3 V DC, -12 V DC, 5 V DC |
| Form Factor | ATX |
| Product Model | TUF-GAMING-750G-EVO |
| Brand Name | Asus |
| Number of +12V Rails | 1 |
| Product Family | TUF Gaming |
| Modular | Yes |
| Specification Compliance | ATX12V v3.1 |
| PCI Express Connector | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Modular Type | Fully Modular |
| Manufacturer Part Number | TUF-GAMING-750G-EVO |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Name | 750W TUF-GAMING-750G-EVO Power Supply |
| Product Line | TUF Gaming |
| Number of SATA Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of (6+2 pin) PCI Express Power Connectors | 2 |
| PCI Express Version | 5.1 |
| Package Contents | • 750W TUF-GAMING-750G-EVO Power Supply • 1 x Power Cord • 1 x Motherboard Power Cable (610mm) • 1 x CPU 1-to-2 Cable (650mm+100mm) • 1 x PCI-E Gen 5.1 Cable (16-pin-to-16-pin) (500mm) • 1 x PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) (500+100mm) • 2 x SATA & Peripheral 1-to-2+1 Cable (400+120+120mm) • 3 x TUF Gaming Cable Tie • 1 x User Manual |
| Certifications & Standards | • UL1581 • UL758 |
| Weight (Approximate) | 1.32 kg |
| Height | 86 mm |
| Width | 140 mm |
| Depth | 150 mm |
| Output Current | 62.50 A, 300 mA, 3 A, 20 A |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Frequency | 50-60 Hz |
| Output Voltage Detail | 5 V SB @ 3 A, 5 V DC @ 20 A, 3 V DC @ 20 A, -12 V DC @ 0.3 A, 12 V DC @ 62.5 A |
| MTBF | 120000 Hour |
| Fan Diameter | 135 mm |
| Protection Type | Under Voltage, Over Temperature, Over Voltage, Overpower, Short Circuit, Over Circuit |
| Fan Bearing Type | Dual Ball Fan Bearing |
| Number of Fans | 1 |
| Power Factor Correction (PFC) | Active |
| Shipping Dimensions | Height 12.8, Width 18.5, Length 28.3, Shipping Weight 2.4 KG |
