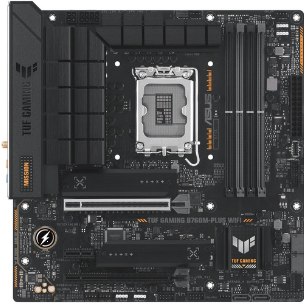

Tuf Gaming B760M-Plus WIFI//Lga1700 B760 USB3.2GEN2X2 Wifi 6 Mb TUF Gaming B760M-PLUS Wifi
SKU
402084
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$178.00
Buy Now And Earn 178 Reward Points!
TUF GAMING B760M-PLUS WIFI takes all the essential elements of the latest Intel ® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
More from the Manufacturer
More from the Manufacturer
| Audio Channels | 7.1 |
| Product Type | Gaming Desktop Motherboard |
| Maximum Memory Supported | 128 GB |
| Form Factor | Micro ATX |
| Processor Supported | Celeron, Core, Pentium Gold |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1700 |
| Brand Name | TUF |
| Memory Technology | DDR5 SDRAM |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Number of Memory Slots | 4 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Number of PCI Express x1 Slots | 1 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 2 |
| HDMI | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Total Number of Onboard USB Ports | 7 |
| Total Number of PCI Express Slots | 3 |
| Thunderbolt | Yes |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 3 |
| Number of M.2 Interfaces | 2 |
| 2.5Gigabit Ethernet | Yes |
| Manufacturer Part Number | TUF GAMING B760M-PLUS WIFI |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | GAMING B760M-PLUS WIFI |
| Product Name | GAMING B760M-PLUS WIFI Gaming Desktop Motherboard |
| RAID Levels | 1, 0, 5, 10 |
| PCI Express Standard | PCI Express 5.0, PCI Express 4.0 |
| S/PDIF | Yes |
| HDMI Version | • 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of Thunderbolt 4 Ports | 1 |
| Memory Speed Supported | 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 5600 MHz, 7200 MHz, 5200 MHz, 5000 MHz, 4800 MHz, 5400 MHz |
| Wireless LAN | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Number of Onboard USB 2.0 Ports | 4 |
| Width | 243.8 mm |
| Depth | 243.8 mm |
| Processor Generation Supported | 12th Gen, 13th Gen |
| Shipping Dimensions | Height 6.8, Width 27.6, Length 28, Shipping Weight 1.58 KG |
