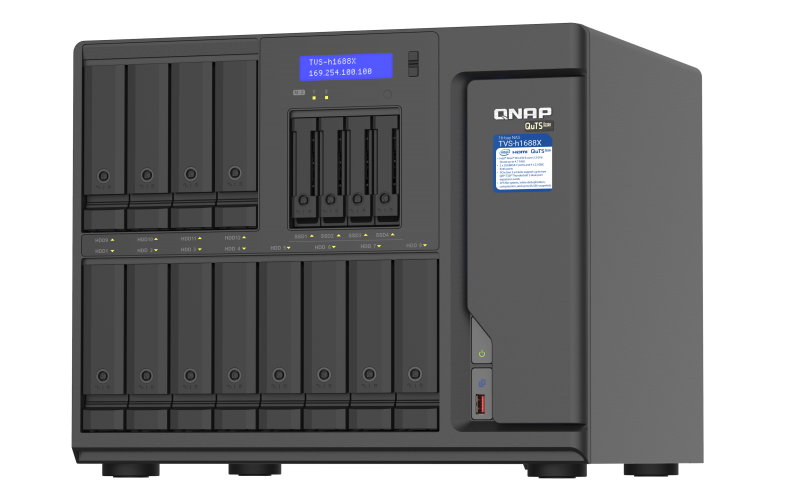

QNAP 12+4 BAY NAS (NO DISK) XEON 6-CORE 3.3GHz, 32GB, 10GbE (2), 2.5GbE(4), TWR, 3YR WTY TVS-H1688X-W1250-32G
SKU
388753
Brand
MPN
TVS-H1688X-W1250-32G
Warranty
Standard Manufacturer's Warranty
$7,132.00
Buy Now And Earn 7132 Reward Points!
QNAP 12+4 BAY NAS (NO DISK) XEON 6-CORE 3.3GHz, 32GB, 10GbE (2), 2.5GbE(4), TWR, 3YR WTY
TVS-h1688X-W1250-32G
- Download Datasheet
- Download Datasheet
- Download Datasheet
| CPU | Intel® Xeon® W-1250 6-core/12-thread processor, up to 4.7 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics P630 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 32GB ECC UDIMM DDR4 (2 x 16 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/1G) |
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame | |
| Thunderbolt Port | Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter |
| PCIe Slot | 3 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4 *Slot 1 is preinstalled with a 2-port 10GbE network adapter.
|
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C 4 x Type-A |
| HDMI Output | 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Audio Input | - (No longer available on units manufactured on or after 2021/1/1) |
| Audio Output | - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1) |
| Form Factor | Tower |
| LED Indicators | System status, LAN, USB, Disk 1~16, M.2 SSD 1~2 |
| LCD Display/ Button | |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm |
| Weight (Net) | 13.41 kg |
| Weight (Gross) | 16.3 kg |
| Operating Temperature | 0 - 40°C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W PSU, 100~240V |
| Power Consumption: HDD Sleep Mode | 91.26 W |
| Power Consumption: Operating Mode, Typical | 108.67 W
Tested with drives fully populated.
|
| Fan | System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10000 |
