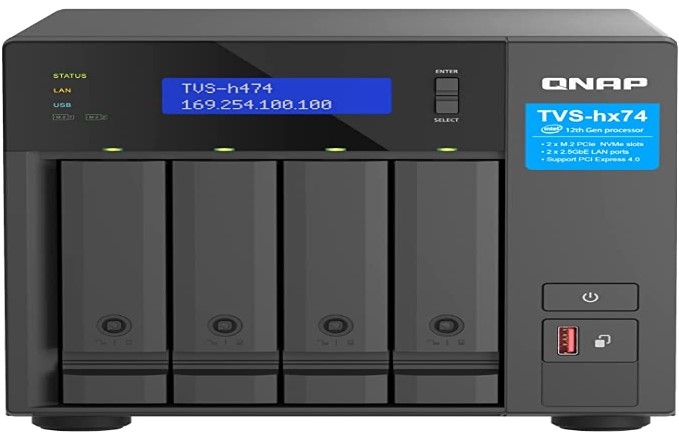

Qnap TVS-h474-PT-8G,4-bay QuTS Hero Nas, Intel® Pentium® Gold G7400, Up To 3.7GHz, 8GB So-Dimm DDR4(max.128GB), 4 X 2.5"/3.5" Sata Hdd/SSD, 2 X 2.5GbE, 3 Yr TVS-h474-PT-8G
SKU
413293
Brand
MPN
TVS-h474-PT-8G
Warranty
Standard Manufacturer's Warranty
$3,196.00
Buy Now And Earn 3196 Reward Points!
QNAP TVS-h474-PT-8G, 4-bay QuTS hero NAS, Intel® Pentium® Gold G7400, up to 3.7GHz, 8GB SO-DIMM DDR4(max.128GB), 4 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen3 x2 slots, PCIe Gen4 slots, HDMI 1.4b, 250W PSU
| GPU | Intel UHD Graphics 710 |
|---|---|
| MPN | TVS-H474-PT-8G-US |
| SKU | TVS-h474-PT-8G |
| UPC | 885022024704 |
| Fans | 1 x 120 mm system fan; 1 x 60 mm CPU fan |
| Brand | QNAP |
| Color | Black |
| Model | TVS-h474-PT-8G |
| Buttons | Power, Reset, USB Copy |
| Humidity | 5–95% RH non-condensing (wet bulb: 27°C / 80.6°F) |
| Warranty | Limited 3-year hardware warranty (warranty extension available up to 5 years) |
| CPU Cores | 2 |
| CPU Model | G7400 |
| CPU Speed | 3.7 GHz |
| M.2 Slots | 2 x M.2 2280 PCIe Gen3 x2 (NVMe) |
| Processor | Intel Pentium Gold G7400 |
| USB Ports | 1 x USB-C 3.2 Gen2 (10Gbps); 2 x USB-A 3.2 Gen2 (10Gbps) |
| Drive Bays | 4 x 3.5/2.5" SATA (hot-swappable) |
| Encryption | Hardware AES (AES-NI), 256-bit |
| PCIe Slots | 2 (1 x PCIe Gen4 x16; 1 x PCIe Gen3 x2) |
| CPU Threads | 4 |
| Description | QNAP TVS-h474-PT-8G is a high-performance 4-bay desktop NAS powered by an Intel Pentium Gold G7400 (2-core/4-thread, up to 3.7 GHz) and Intel UHD Graphics 710. Designed for SMBs and virtualization, it runs QNAP's ZFS-based QuTS hero OS (also compatible with QTS) to provide data integrity features including block-level inline deduplication/compression, near-limitless snapshots and real-time SnapSync. The system includes 8 GB DDR4 (1 x 8 GB SODIMM) and supports up to 64 GB (2 x SODIMM). Expandability includes 2x M.2 2280 PCIe Gen3 x2 slots for NVMe caching or pools and two PCIe expansion slots (PCIe Gen4 x16 + PCIe Gen3 x2) for networking or accelerator cards. Connectivity includes 2 x 2.5 GbE LAN, 1 x USB-C 3.2 Gen2 (10Gbps) and 2 x USB-A 3.2 Gen2 (10Gbps), plus HDMI 1.4b output (4096 x 2160 @ 30Hz). Hardware AES-NI encryption, 250W PSU, dual fans (120 mm system + 60 mm CPU), and a 3-year limited hardware warranty. Diskless; includes mounting screws, M.2 heatsinks, drive keys, Ethernet and power cables, and Quick Installation Guide. |
| Form Factor | Tower (Desktop) |
| HDMI Output | 1 x HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Memory Type | DDR4 SODIMM |
| RAID Levels | 0 1 5 6 10 JBOD |
| Flash Memory | 5 GB (dual-boot OS protection) |
| Memory Slots | 2 |
| Power Supply | 250 W (100-240V) |
| Weight (Net) | 11.75 lb |
| Hot-swappable | Yes |
| Network Ports | 2 x RJ45 2.5GbE (2.5G/1G/100M/10M) |
| Product Title | QNAP TVS-h474-PT-8G 4-Bay NAS - Intel Pentium Gold G7400, 8GB DDR4, 2x2.5GbE, PCIe Gen4 |
| TAA Compliant | Yes |
| LED Indicators | HDD 1-4, Status, LAN, USB, M.2 |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Package Weight | 15.71 lb (as listed on one source) |
| Product Series | TVS-hx74 |
| OS Compatibility | Windows (incl. Windows 10/11, Server variants) macOS 10.10 or later Linux/Ubuntu/CentOS UNIX |
| Operating System | QuTS hero (ZFS-based); compatible with QTS |
| Package Contents | TVS-h474 storage system (diskless) and listed accessories |
| Country of Origin | Taiwan |
| Security Features | Kensington security slot Lockable bay door |
| Memory (Installed) | 8 GB DDR4 (1 x 8 GB SODIMM) |
| Drive Compatibility | 3.5-inch SATA HDD 2.5-inch SATA HDD 2.5-inch SATA SSD |
| Flash/OS Protection | Dual-boot OS protection |
| Storage Temperature | -20 - 70°C (-4 - 158°F) |
| Included Accessories | Ethernet cable x1 Power cord x1 M.2 SSD heatsink x2 Flat head screws for 3.5" HDD x16 Flat head screws for 2.5" HDD x12 Drive tray keys x2 Quick Installation Guide (QIG) |
| Maximum Raw Capacity | 88 TB (listed in source) |
| Operating Temperature | 0 - 40°C (32 - 104°F) |
| Dimensions (H x W x D) | 7.41 x 7.85 x 11.03 inches (18.82 x 19.94 x 27.97 cm) |
| Weight (Gross / Package) | Approximately 13.98–16.00 lb (package varies by source) |
| PCIe Slot Card Dimensions | Slot cards up to 185 x 68.9 x 18.76 mm (wider cards supported if adjacent slot not used) |
| Power Consumption (Typical) | 78.574 W (operating, typical) |
| Power Consumption (HDD Sleep Mode) | 34.906 W |
QNAP TVS-h474-PT-8G,4-bay QuTS hero NAS, Intel® Pentium® Gold G7400, up to 3.7GHz, 8GB SO-DIMM DDR4(max.128GB), 4 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 3 Yr
