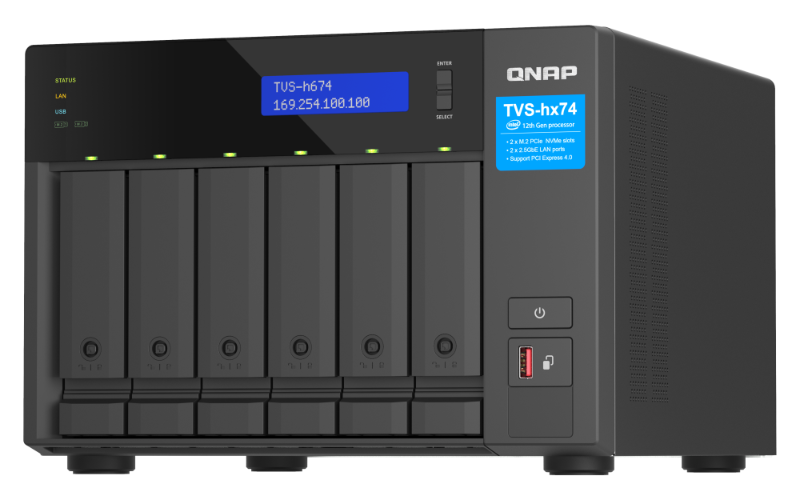

Qnap TVS-h674-i3-16G,6-bay QuTS Hero Nas, Intel Core I3-12100 4-core/8-thread, Up To 4.3GHz, 16GB So-Dimm DDR4(max.128GB), 6 X 2.5"/3.5" Sata Hdd/3 Yrs TVS-h674-i3-16G
SKU
404793
Brand
MPN
TVS-h674-i3-16G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $4,630.00 Regular Price $5,325.00
Buy Now And Earn 4630 Reward Points!
QNAP TVS-h674-i3-16G, 6-bay QuTS hero NAS, Intel® Core™ i3-12100 4-core/8-thread, up to 4.3GHz, 16GB SO-DIMM DDR4(max.128GB), 6 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, PCIe Gen4 slots, HDMI 1.4b, 250W PSU
| UPC | 885022024728 |
|---|---|
| USB | USB 3.2 Gen 2: 1 x Type-C, 2 x Type-A (10 Gbps) Total USB Ports: 3 |
| RAID | Supports RAID levels including 0, 1, 5, 6, 10, 50, 60, JBOD (via QuTS / QuTS hero) |
| Brand | QNAP |
| Model | TVS-h674-i3-16G |
| Notes | PCIe Gen4 expansion enables 2.5/5/10/25GbE NICs, QM2 cards, or entry-level GPUs M.2 NVMe slots intended for caching or SSD pools; M.2 SSDs are not hot-swappable |
| Power | Power Supply: 250W, 100-240 VAC Power Consumption (Disk Standby): 39.911 W Power Consumption (Typical / Operating): 79.363 W (typical) |
| Memory | Installed: 16 GB DDR4 (SODIMM) Memory Type: DDR4 SODIMM Memory Slots: 2 x SODIMM Maximum Memory: 64 GB (2 x 32 GB) |
| Weight | Net Weight: 13.93 lb Package / Gross Weight: ≈17.56 lb |
| Cooling | 2 x 92 mm system fans; 1 x 60 mm CPU fan |
| Network | Built-in Ethernet: 2 x RJ-45 2.5GbE (2.5G/1G/100M) |
| Warranty | Limited 3-year hardware warranty |
| M.2 Slots | 2 x M.2 2280 NVMe (PCIe Gen4 x4 compatible; supports Gen3) |
| Processor | CPU Model: Intel Core i3-12100 Architecture: 64-bit x86 Integrated GPU: Intel UHD Graphics 730 Cores / Threads: 4 cores / 8 threads Encryption Engine: AES-NI Max Turbo Frequency: Up to 4.3 GHz |
| Compliance | TAA Compliant: Yes (reported) |
| Description | The QNAP TVS-h674-i3-16G is a 6-bay tower NAS engineered for SMBs and virtualization workloads. It is powered by an Intel® Core™ i3-12100 (4 cores / 8 threads, up to 4.3 GHz) with Intel UHD Graphics 730, ships with 16 GB DDR4 (user-replaceable), and supports the ZFS-based QuTS hero operating system for inline deduplication, compression, snapshots and SSD optimization. The system offers PCIe Gen4 expandability (1x PCIe 4.0 x16, 1x PCIe 4.0 x4), dual M.2 2280 NVMe slots for cache or SSD pools, dual 2.5GbE RJ-45 ports, HDMI 1.4b (4K@30Hz), and multiple USB 3.2 Gen 2 ports for high-performance connectivity. |
| Form Factor | Tower |
| Flash Memory | 5 GB (dual-boot OS protection) |
| Video Output | 1 x HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Environmental | Relative Humidity: 5-95% RH non-condensing (wet bulb: 27 °C) Storage Temperature: -20 to 70 °C (-4 to 158 °F) Operating Temperature: 0 to 40 °C (32 to 104 °F) |
| Product Title | QNAP TVS-h674-i3-16G 6-Bay NAS (Intel Core i3-12100, 16GB DDR4, 2x2.5GbE, 2x M.2 NVMe, PCIe Gen4) |
| PCIe Expansion | 1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 |
| Series / Family | TVS-hx74 (TVS-h674) |
| Chassis Material | Metal |
| Operating System | QuTS hero (ZFS-based) - (example version referenced: h5.0.0) |
| Country of Origin | Taiwan |
| Dimensions (HxWxD) | 7.09 x 10.41 x 11.01 in (approx.) |
| Included Accessories | Ethernet cable x1 Power cord x1 M.2 SSD heatsink x2 Drive tray keys x2 Quick Installation Guide Flat head screws for 3.5" and 2.5" drives (quantities reported vary by source) |
| Security & Management | Encryption: 256-bit AES support (AES-NI) Security Slot: Kensington security slot VPN Connections (Client): 100 Max Concurrent CIFS Connections (with max memory): 2500 |
| Manufacturer Part Number | TVS-H674-I3-16G-US |
| Internal Storage / Drive Bays | Drive Bay Type: 3.5" / 2.5" SATA III (6 Gb/s) Drives Included: Diskless (no HDDs/SSDs included) Total Drive Bays: 6 Drive Compatibility: 3.5" SATA HDD, 2.5" SATA SSD |
QNAP TVS-h674-i3-16G,6-bay QuTS hero NAS, Intel Core i3-12100 4-core/8-thread, up to 4.3GHz, 16GB SO-DIMM DDR4(max.128GB), 6 x 2.5"/3.5" SATA HDD/3 Yrs
