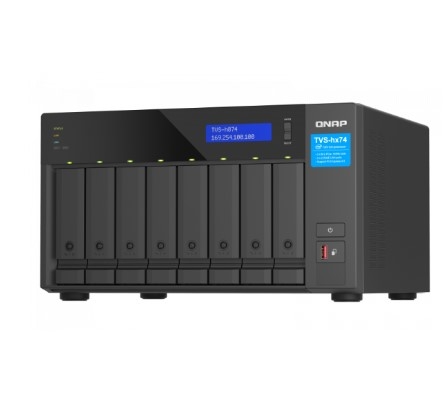

Qnap TVS-h874-i5-32G,8-bay QuTS Hero Nas, Intel® Core™ I5-12400 6-core/12-thread, Up To 4.6GHz, 32GB So-Dimm DDR4(max.64GB), 8 X 2.5"/3.5" Sata Hdd, 3 Yrs W TVS-h874-i5-32G
SKU
400460
Brand
MPN
TVS-h874-i5-32G
Warranty
Standard Manufacturer's Warranty
$6,399.00
Buy Now And Earn 6399 Reward Points!
QNAP TVS-h874-i5-32G, 8-bay QuTS hero NAS, Intel® Core™ i5-12400 6-core/12-thread, up to 4.6GHz, 32GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, PCIe Gen4 slots, HDMI 1.4b, 250W PSU
| CPU | Intel Core i5-12400 (12th Gen) |
|---|---|
| SKU | TVS-h874-i5-32G |
| UPC | 885022024711 |
| HDMI | 1 x HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Brand | QNAP |
| Model | TVS-h874-i5-32G |
| Notes | Unit ships diskless. Some published specifications vary between vendor pages (memory maximum, integrated GPU naming and presence of preinstalled 10GbE adapter). The listed values reflect consolidated vendor documentation. |
| Buttons | Power, Reset, USB Copy |
| Category | Storage |
| Graphics | Intel UHD Graphics |
| Warranty | Limited 3-year hardware warranty |
| M.2 Slots | 2 x M.2 2280 PCIe Gen4 x4 (compatible with NVMe PCIe Gen3+) |
| USB Ports | 1 x USB 3.2 Gen 2 Type-C (10 Gbps), 2 x USB 3.2 Gen 2 Type-A (10 Gbps) |
| Drive Bays | 8 x 3.5-inch SATA (supports 2.5" drives in bays) |
| Net Weight | 16.09 lb (approx.) |
| Description | The QNAP TVS-h874-i5-32G is an 8-bay desktop NAS engineered for SMBs and workstation users who need reliable, high-performance ZFS-based storage. Powered by a 12th Gen Intel Core i5-12400 6-core/12-thread processor with integrated Intel UHD Graphics, the TVS-h874 supports QuTS hero (ZFS) or QTS operating systems, inline deduplication and compression, near-limitless snapshots, SSD optimization and virtualization workloads. Hardware highlights include 2 x M.2 2280 PCIe Gen4 x4 NVMe slots for caching or SSD pools, two 2.5GbE RJ45 ports (with PCIe Gen4 expandability for 10/25GbE), two PCIe Gen4 expansion slots (x16 and x4), HDMI 1.4b output (4K @ 30Hz), multiple USB 3.2 Gen2 ports (1x Type-C, 2x Type-A), 32GB DDR4 memory preinstalled (expandable), AES-NI encryption, and a 250W power supply. The unit ships diskless and includes installation accessories (Ethernet cable, power cord, drive screws, M.2 heatsinks, drive tray keys and quick installation guide). |
| Form Factor | Desktop / Tower |
| Memory Type | DDR4 SODIMM |
| Memory Slots | 2 x SODIMM |
| Power Supply | 250W, 100-240VAC |
| RAID Support | Supported RAID modes: 0, 1, 5, 6, 10, 50, 60 |
| Sub-Category | Network Attached Storage (NAS) |
| Hot-swappable | 3.5/2.5" drive bays support hot-swap (M.2 SSDs not hot-swappable) |
| Product Title | QNAP TVS-h874-i5-32G 8-Bay Desktop NAS (Intel Core i5-12400, 32GB DDR4, 2.5GbE, 2x M.2 NVMe, PCIe Gen4) |
| iSCSI Support | Yes (iSCSI supported; vendor documentation lists LUN support) |
| Fans / Cooling | 2 x 120 mm system fans; 1 x 60 mm CPU fan |
| LED Indicators | HDD 1-8, Status, LAN, USB, M.2 |
| Maximum Memory | Up to 128 GB (2 x 64 GB) |
| PCIe Expansion | 2 x PCIe Gen4 slots (Slot 1: x16; Slot 2: x4). Allows installation of 2.5/5/10/25GbE adapters, QM2 cards, or entry-level GPUs. |
| CPU Architecture | 64-bit x86 |
| CPU Max Frequency | Up to 4.4 GHz (burst) |
| Encryption Engine | AES-NI (hardware encryption) |
| Relative Humidity | 5–95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) |
| Dimensions (HxWxD) | 7.41 x 12.96 x 11.06 inches (18.82 x 32.92 x 27.97 cm) |
| Network (Standard) | 2 x RJ45 2.5GbE (2.5G/1G/100M) |
| CPU Cores / Threads | 6 cores / 12 threads |
| Drive Compatibility | 3.5-inch SATA HDDs; 2.5-inch SATA HDDs/SSDs |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Included Accessories | Ethernet cable x1; Power cord x1; Flat head screws for 3.5" HDD x32; Flat head screws for 2.5" HDD x24; M.2 SSD heatsink x2; Drive tray keys x2; Quick installation guide |
| Memory Configuration | 2 x SODIMM (installed as 2 x 16 GB where specified) |
| Encryption / Security | 256-bit AES (with AES-NI); Kensington security slot |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| SSD Cache Acceleration | Supported (via M.2 NVMe SSDs) |
| Network (Expandability) | PCIe Gen4 expandability for 10/25GbE (some configurations/units may include a preinstalled 10GbE adapter) |
| Manufacturer Part Number | TVS-H874-I5-32G-US |
| System Memory (Installed) | 32 GB DDR4 SODIMM |
| Operating System / Software | QuTS hero (ZFS) or QTS (QNAP OS) |
| Power Consumption (Typical) | Approximately 82 W (typical; vendor examples vary; standby lower) |
| Tested Throughput (Examples) | Vendor-listed examples: up to ~3.3 GB/s write / ~3.2 GB/s read on dual 25GbE (example figures provided by vendor; actual results vary by configuration) |
| Package Weight / Gross Weight | Approximately 19.7–20.0 lb (varies by packaging) |
QNAP TVS-h874-i5-32G,8-bay QuTS hero NAS, Intel® Core™ i5-12400 6-core/12-thread, up to 4.6GHz, 32GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD, 3 Yrs W
