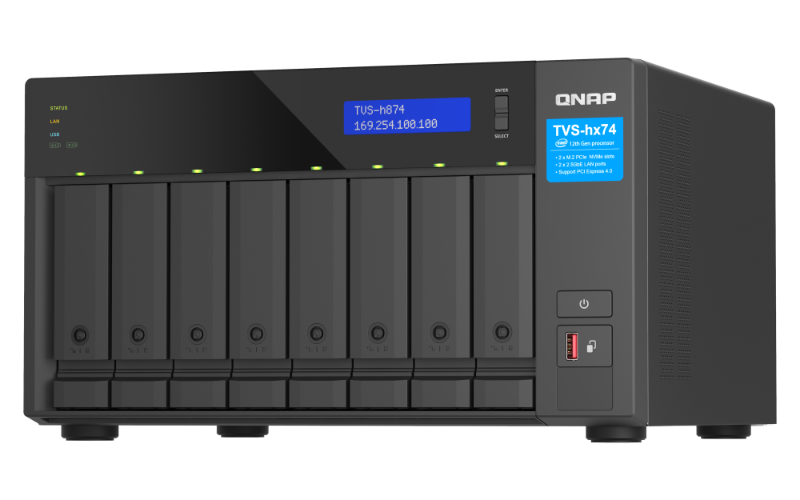

Qnap TVS-h874-i7-32G, 8-bay QuTS Hero Nas, Intel Core I7 12-core (8P+4E) /20-thread Processor, 32GB So-Dimm DDR4(max.64GB), 8 X 2.5"/3.5" Sata Hdd, 3 Yrs Wty TVS-h874-i7-32G
SKU
404792
Brand
MPN
TVS-h874-i7-32G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $6,287.00 Regular Price $7,230.00
Buy Now And Earn 6287 Reward Points!
QNAP TVS-h874-i7-32G, 8-bay QuTS hero NAS, Intel Core i7 12-core (8P+4E) /20-thread Processor, 32GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, PCIe Gen4 slots, HDMI 1.4b, 250W PSU
| CPU | Intel Core i7-12700E (12th Gen) |
|---|---|
| GPU | Integrated Intel UHD Graphics 770 |
| SKU | TVS-h874-i7-32G |
| Brand | QNAP |
| Color | Black |
| Model | TVS-h874-i7-32G |
| Notes | Specifications consolidated from multiple manufacturer and reseller sources. Remains factual to provided source material; no seller-specific availability or pricing information included. |
| Cooling | System fan: 2 x 120mm; CPU fan: 1 x 60mm |
| Category | Storage |
| Material | Metal |
| Variants | TVS-h874-i7-32G (Intel Core i7-12700E, 32GB) TVS-h874X-i9-64G (Intel Core i9 variant listed by manufacturer) |
| Warranty | 3-year limited hardware warranty (extendable to 5 years) |
| AI_Engine | Integrated Intel OpenVINO (QNAP AI Core / QuMagie) |
| M.2_Slots | 2 x M.2 2280 PCIe Gen4 x4 (NVMe); M.2 SSDs not hot-swappable |
| USB_Ports | 3 x USB 3.2 Gen 2 (10Gbps) (1 x USB-C, 2 x USB-A) |
| Drive_Bays | 8 x 3.5-inch SATA 6Gb/s (supports 2.5-inch SATA drives) |
| PCIe_Slots | 2 (Slot 1: PCIe Gen4 x16; Slot 2: PCIe Gen4 x4) |
| Weight_Net | 16.09 lbs |
| Description | The QNAP TVS-h874-i7-32G is an 8-bay tower NAS enclosure optimized for ZFS-based QuTS hero. Powered by a 12th Gen Intel Core i7-12700E (12-core, 20-thread) with integrated Intel UHD Graphics 770 and AES-NI encryption, the TVS-h874 delivers PCIe Gen4 expandability, dual M.2 NVMe SSD caching (2 x M.2 2280 PCIe Gen4 x4), and built-in 2.5GbE networking for high-throughput virtualization, collaborative media editing, and enterprise backup. QuTS hero features block-level inline deduplication and compression, near-limitless snapshots, SnapSync, and SSD optimization. The unit ships as an enclosure (diskless), includes essential accessories (Ethernet cable, power cord, M.2 heatsinks, screws, drive-tray keys, QIG), and is backed by a 3-year limited warranty (extendable to 5 years). |
| Form Factor | Tower; 8-bay NAS enclosure |
| HDMI_Output | 1 x HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Flash_Memory | 5 GB (dual-boot OS protection) |
| Memory_Slots | 2 x SODIMM DDR4 |
| Power_Supply | 350W (PWR-PSU-350W-DT01), 100-240V |
| Sub-Category | Network Attached Storage (NAS) |
| Weight_Gross | 19.73 lbs |
| Network_Ports | 2 x 2.5GbE RJ45 (2.5G/1G/100M); additional 10GbE/25GbE via PCIe expansion cards |
| Product Title | QNAP TVS-h874-i7-32G 8-Bay NAS Enclosure (Intel Core i7-12700E, 32GB DDR4, 2 x 2.5GbE, PCIe Gen4) |
| Data_Reduction | Block-level inline deduplication and compression (QuTS hero) |
| Maximum_Memory | 64 GB (2 x 32 GB) |
| Dimensions_HxWxD | 7.41 × 12.96 × 11.06 inches |
| Operating_System | QuTS hero (ZFS-based); also supports QTS |
| Snapshot_Support | Up to 65,536 snapshots (QuTS hero) |
| CPU_Cores_Threads | 12 cores (8 Performance + 4 Efficient), 20 threads |
| Encryption_Engine | Intel AES-NI |
| Power_Consumption | Disk_Standby: 81.798 W Operating_Typical: 98.959 W |
| Relative_Humidity | 5 - 95% RH non-condensing (wet bulb: 27 °C) |
| Drive_Compatibility | 3.5-inch SATA HDD; 2.5-inch SATA SSD |
| Storage_Temperature | -20 - 70 °C (-4 - 158 °F) |
| Included_Accessories | Ethernet cable Power cord 2 x M.2 SSD heatsinks 32 x flat head screws for 3.5" HDD 24 x flat head screws for 2.5" HDD 2 x drive tray keys Quick Installation Guide (QIG) |
| Package_Content_Note | Ships as an enclosure (diskless); drive(s) not included unless specified by seller |
| Operating_Temperature | 0 - 40 °C (32 - 104 °F) |
| System_Memory_Installed | 32 GB DDR4 SODIMM |
| Tested_Throughput_Examples | Test environment: 2 x 25GbE SMB sequential (1M) Write ~3313 MB/s, Read ~3232 MB/s; 1 x 25GbE ~2950 MB/s; 2 x 2.5GbE SMB sequential (1M) Write ~590 MB/s, Read ~591 MB/s (as stated by manufacturer/test notes) |
| Virtualization_Certifications | VMware Ready; Microsoft Hyper-V; Citrix; Veeam Ready |
| Inline_Deduplication_Requirement | Inline deduplication requires at least 16 GB memory; 32 GB recommended for optimal performance |
QNAP TVS-h874-i7-32G, 8-bay QuTS hero NAS, Intel Core i7 12-core (8P+4E) /20-thread Processor, 32GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD, 3 Yrs WTY
