Startech U.2 To Pcie Adapter For 2.5in U.2 Nvme Ssd - Sff-8639 - X4 Pci Express 3.0 Pex4sff8639

SKU
254018
Brand
MPN
PEX4SFF8639
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$80.00
Buy Now And Earn 80 Reward Points!

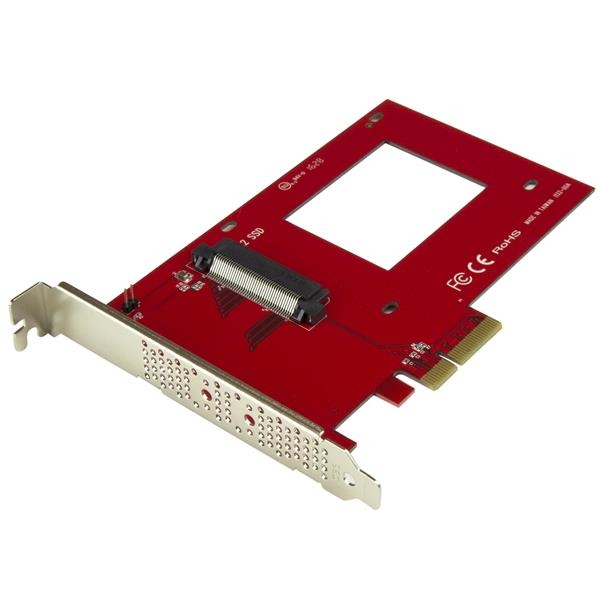

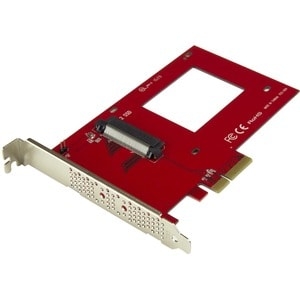

Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.

You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.

Easy to install

The expansion card is equipped with a full-profile bracket and doesn’t require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.

The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0.

The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Drive ConnectorsU.2 (SFF-8639, x4 PCIe, NVMe)
Host ConnectorsPCI Express x4 Male
Environmental
Humidity15% ~ 90% RH
Operating Temperature5?C to 50?C (41?F to 122?F)
Storage Temperature-25?C to 70?C (-13?F to 158?F)
Hardware
Bus TypePCI Express
Compatible Drive TypesU.2 (SFF-8639, x4 PCIe, NVMe)
Drive InstallationFixed
Drive Size2.5in
Fan(s)No
InterfacePCI Express
Number of Drives1
Supported Drive Height(s)12.5mm
15mm
5mm
7mm
9.5mm
Indicators
LED IndicatorsActivity Terminal/Header
Packaging Information
Shipping (Package) Weight161 g [5.7 oz]
Performance
Hot Swap CapabilityNo
Physical Characteristics
ColorRed
Product Height22 mm [0.9 in]
Product Length165 mm [6.5 in]
Product Weight65 g [2.3 oz]
Product Width122 mm [4.8 in]
Software
OS CompatibilityOS independent; No software or drivers required
What's in the Box
Included in Packagedrive adapter card
drive-mounting screws
quick-start guide
