Ubiquiti | U-PoE++ | U-PoE++ Adapter, 60W, Suitable For UniFi PoE++ Devices U.poe.bt
SKU
425229
Brand
MPN
U.POE.BT
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $80.00 Regular Price $93.00
Buy Now And Earn 80 Reward Points!

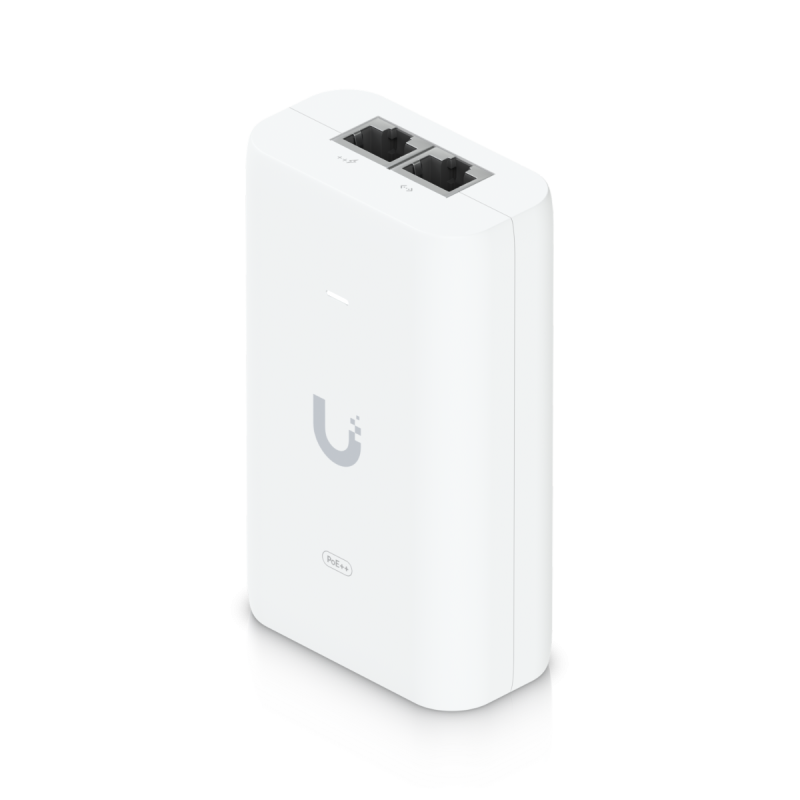

Ubiquiti | U-PoE++ | Adapter, 60W, suitable for UniFi PoE++ Devices
Power your UniFi PoE++ devices with ease using the Ubiquiti U-PoE++ Adapter, a high-performance PoE solution designed to deliver up to 60W of power. Ideal for UniFi PoE++ devices with wireless mesh applications or those requiring additional power, this adapter ensures reliable performance and efficient power delivery for uninterrupted connectivity.
With surge, peak pulse, and overcurrent protection features, the Ubiquiti U-PoE++ Adapter offers advanced safety measures to safeguard your devices against power surges and fluctuations. Its durable construction and built-in LED indicator for status monitoring provide peace of mind, allowing you to focus on maximizing the performance of your network infrastructure.
The U-PoE++ Adapter is equipped with an RJ45 data input, AC cable with earth ground, and PoE++ output, offering a comprehensive solution for powering your UniFi devices. Whether you're deploying wireless access points, surveillance cameras, or other PoE++ devices, this adapter provides the necessary power and protection to ensure seamless operation and enhanced network performance. Upgrade your network infrastructure with the Ubiquiti U-PoE++ Adapter and experience reliable power delivery for your UniFi PoE++ devices.
FEATURES
Delivers up to 60W of PoE++
Even more power for UA Hub, G4 PTZ, and other PoE++ devices
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
SPECIFICATIONS
Dimensions: 106 x 63 x 34mm
Weight: 210g
Output Voltage: 48V DC @ 1.25A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Rated Voltage: 100—240V AC @ 50/60Hz
Input Current:
1.3A @ 120V AC
0.75A @ 230V AC
Inrush Current:
<100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency: 85+%
Output Ripple: 1% max.
Switching Frequency: 65kHz
Line Regulation: ≤ 1%
Load Regulation: ≤ 3%
2-Pair Powering: No
4-Pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC Connector: EC-320 C6
Data In / PoE: RJ45 shielded socket
Surge Protection: Difference and common mode
Clamping Protection: 11V data, 60V power
Max. Surge Discharge: 1500A (8/20 μs) power
Peak Pulse Current: 36A (10/1000 μs) data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Power Method: Universal AC input, 100—240V AC, 50/60Hz
Power Supply: AC/DC
Supported Voltage Range: 100—240V AC
Max. PoE+ Wattage Per Port by PSE: 60W
Operating Temperature: 0 to 40°C
Storage Temperature: -30 to 70°C
Operating Humidity: 10 to 95% noncondensing
Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
WARRANTY
2-year limited warranty
Power your UniFi PoE++ devices with ease using the Ubiquiti U-PoE++ Adapter, a high-performance PoE solution designed to deliver up to 60W of power. Ideal for UniFi PoE++ devices with wireless mesh applications or those requiring additional power, this adapter ensures reliable performance and efficient power delivery for uninterrupted connectivity.
With surge, peak pulse, and overcurrent protection features, the Ubiquiti U-PoE++ Adapter offers advanced safety measures to safeguard your devices against power surges and fluctuations. Its durable construction and built-in LED indicator for status monitoring provide peace of mind, allowing you to focus on maximizing the performance of your network infrastructure.
The U-PoE++ Adapter is equipped with an RJ45 data input, AC cable with earth ground, and PoE++ output, offering a comprehensive solution for powering your UniFi devices. Whether you're deploying wireless access points, surveillance cameras, or other PoE++ devices, this adapter provides the necessary power and protection to ensure seamless operation and enhanced network performance. Upgrade your network infrastructure with the Ubiquiti U-PoE++ Adapter and experience reliable power delivery for your UniFi PoE++ devices.
FEATURES
Delivers up to 60W of PoE++
Even more power for UA Hub, G4 PTZ, and other PoE++ devices
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
SPECIFICATIONS
Dimensions: 106 x 63 x 34mm
Weight: 210g
Output Voltage: 48V DC @ 1.25A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Rated Voltage: 100—240V AC @ 50/60Hz
Input Current:
1.3A @ 120V AC
0.75A @ 230V AC
Inrush Current:
<100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency: 85+%
Output Ripple: 1% max.
Switching Frequency: 65kHz
Line Regulation: ≤ 1%
Load Regulation: ≤ 3%
2-Pair Powering: No
4-Pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC Connector: EC-320 C6
Data In / PoE: RJ45 shielded socket
Surge Protection: Difference and common mode
Clamping Protection: 11V data, 60V power
Max. Surge Discharge: 1500A (8/20 μs) power
Peak Pulse Current: 36A (10/1000 μs) data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Power Method: Universal AC input, 100—240V AC, 50/60Hz
Power Supply: AC/DC
Supported Voltage Range: 100—240V AC
Max. PoE+ Wattage Per Port by PSE: 60W
Operating Temperature: 0 to 40°C
Storage Temperature: -30 to 70°C
Operating Humidity: 10 to 95% noncondensing
Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
WARRANTY
2-year limited warranty
