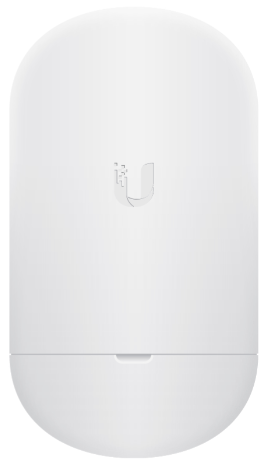

Ubiquiti | Loco5AC | NanoStation 5AC Loco 300mW 13dBi CPE / Bridge Radio **PoE Injector Not Included**

Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. The NanoStation AC and NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.

The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.

SPECIFICATIONS
Dimensions: 179 x 77.5 x 59.1mm
Weight: 180g
Power Supply: 24V, 0.3A Gigabit PoE Supply*
Max. Power Consumption: 7W
Power Method: Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return)
Gain: 13dBi
Networking Interface: 10/100/1000 Mbps Ethernet Port
Channel Bandwidths: 10/20/30/40/50/60/80 MHz
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2
Cross-pol Isolation: 20 dB Minimum
Max. VSWR: 1.8:1
Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
LEDs: (1) Power
Mounting: Pole-Mount (Kit Included)
Operating Temperature: -40 to 70°C
Operating Humidity: 5 to 95% Noncondensing
RoHS Compliance: Yes
ESD/EMP Protection: ±24kV Contact/Air
Shock & Vibration: ETSI300-019-1.4
Certifications: CE, FCC, IC

* Not included. Recommended PoE Adapter: POE-24-12W-G.

WARRANTY

2-year limited warranty
