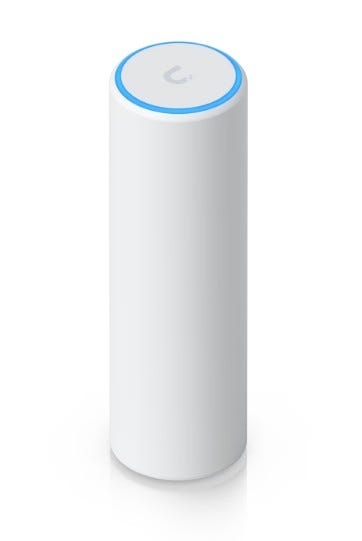

The UniFi Access Point U7 Mesh brings next-generation wireless performance to your home or business network, utilising the cutting-edge Wi-Fi 7 standard. Engineered for demanding, long-range deployments, this versatile access point features a fully redesigned internal architecture that delivers ultra-high throughput and low latency. Whether optimising connectivity for bandwidth-heavy business operations or providing robust coverage across residential properties, this device future-proofs your wireless network infrastructure with ease.

Built to withstand diverse environments, the sleek, compact enclosure seamlessly transitions from indoor settings to challenging outdoor conditions. It boasts an IPX6 weatherproof rating when installed with the included outdoor mount, rendering it highly resistant to harsh weather elements. A multi-gigabit 2.5GbE RJ45 uplink port ensures that your high-speed wired backbone is fully utilised, maintaining consistent high-traffic performance without compromising data delivery.

At the core of its expansive reach is an innovative super antenna architecture that blends true omnidirectional coverage with a precision long-range directional beam. This unique hybrid configuration extends reach up to three times farther in mesh deployments, maintaining strong signal integrity across large open spaces while serving local clients simultaneously. The unit integrates effortlessly with the UniFi Network application, unlocking centralised, license-free multi-site management and comprehensive RF analytics.

Features
Wi-Fi 7 Technology: Unlocks next-generation data speeds and exceptional spectral efficiency with Multi-Link Operation capabilities.
Super Antenna Architecture: Combines a 6dBi omnidirectional pattern and a 10dBi directional beam to boost mesh range up to three times farther.
Weatherproof Enclosure: Durable UV-stabilised polycarbonate construction with an IPX6 rating specifically engineered for versatile indoor and outdoor installations.
Multi-Gigabit Uplink: Equipped with a high-capacity 2.5GbE RJ45 port to maximise network throughput and eliminate wired bottlenecks.
High Device Capacity: Efficiently handles over 200 concurrent client devices, making it perfect for dense network environments.
PoE Powered: Streamlines installations via Power over Ethernet, featuring an included PoE injector for convenient out-of-the-box deployment.
Specifications
Wi-Fi Standard: 802.11be, 802.11ax, 802.11ac, 802.11n
Spatial Streams: 4
MIMO Configuration: 2.4GHz, 5GHz
Maximum Data Rates: 5GHz up to 4.3Gbps, 2.4GHz up to 688Mbps
Antenna Gain: 5GHz, 2.4GHz
Maximum Transmit Power: 5GHz, 2.4GHz
Coverage Area: Up to 140m²
Networking Interface: (1) 2.5GbE RJ45 port
Power Method: Power over Ethernet
Maximum Power Consumption: 13W
Supported Voltage Range: 42.5–57V DC
Enclosure Material: UV-stabilised polycarbonate
Weatherproofing: IPX6
Mounting Options: Wall, pole, and table stand
Dimensions: ⌀48.5x159.5mm
Weight: 313g
Operating Temperature: -30 to 60°C
Operating Humidity: 5 to 95% noncondensing
Management Application: UniFi Network
Warranty

2-Year Limited Warranty
