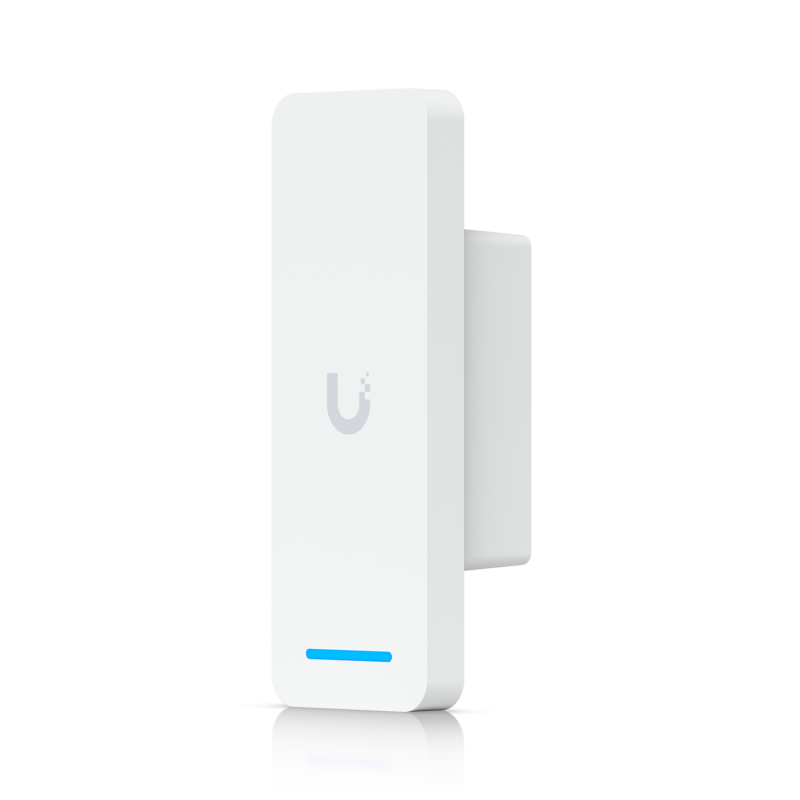

The **Ubiquiti UniFi Access Reader Ultra (UA-Ultra)** is an innovative, all-in-one access control solution designed to streamline single-door entry management. This tamper-resistant device combines an access reader with a built-in hub, eliminating the need for additional complex wiring and simplifying installation. Ideal for both indoor and outdoor environments, the UA-Ultra offers robust security and seamless integration within the UniFi ecosystem.

Equipped with advanced **NFC compatibility**, the Access Reader Ultra supports a wide range of credential types, including ISO 14443A/B, 15693, NFC Tag 1-5, and MIFARE variants. This ensures broad compatibility with existing access cards and key fobs, providing flexible entry options. Users can also conveniently unlock doors using the **UniFi Identity mobile app**, adding a layer of modern convenience to your security system.

The UA-Ultra is powered by **PoE+**, making installation incredibly straightforward with a single Ethernet cable for both power and data. Its durable polycarbonate and aluminium alloy enclosure, combined with an **IP55 weather resistance** rating, ensures reliable performance in various conditions, from harsh outdoor elements to demanding indoor settings. The integrated tamper switch further enhances security by alerting administrators to any unauthorised attempts at removal or interference.

For businesses and organisations seeking a reliable, secure, and easily manageable access control system, the Ubiquiti UniFi Access Reader Ultra stands out. Its seamless integration with the broader **UniFi platform** allows for centralised management, detailed access logs, and simplified user permission configuration, providing a comprehensive and intuitive security solution for any modern workspace.

FEATURES

• Tamper-resistant access reader with built-in hub
• All-in-one single-door entry control from one device
• (1) Lock terminal (12V DC, 1A)
• (1) Exit request input
• Unlock using NFC card or UniFi Identity mobile app
• PoE+ powered for simplified installation
• IP55 weather resistance for indoor/outdoor deployment
• Integrated tamper switch for enhanced security
• Seamless integration with the UniFi Access ecosystem

SPECIFICATIONS

• Dimensions: 126 x 45 x 37.45mm
• Weight: 140g
• Enclosure Material: Polycarbonate, aluminium alloy
• Mount Material: Stainless steel
• Mounting: Wall mount, gang box mount (Included)
• Weatherproofing: IP55
• Networking Interface: (1) 10/100MbE RJ45 port
• Connectivity: Ethernet, BLE 4.2
• Lock Terminals: (1) 12V DC, 1A
• Power Method: PoE+ (UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU)
• Supported Voltage Range: 44 ”57V DC
• Max. Power Consumption: 18W
• ESD/EMP Protection: Air: ±8kV, contact: ±4kV
• LEDs: R/G/B/W
• Button: (1) Factory-reset
• Speaker: Buzzer
• NFC Frequency: 13.56MHz
• NFC Read Range: <50mm
• NFC Technology: ISO 14443A, 14443B, 15693, NFC Tag 1, 2, 3, 4, 5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire
• Ambient Operating Temperature: -30 to 40°C
• Ambient Operating Humidity: 5 to 90% noncondensing
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Management Application: UniFi Access

WARRANTY

1-Year Limited Warranty
