Description

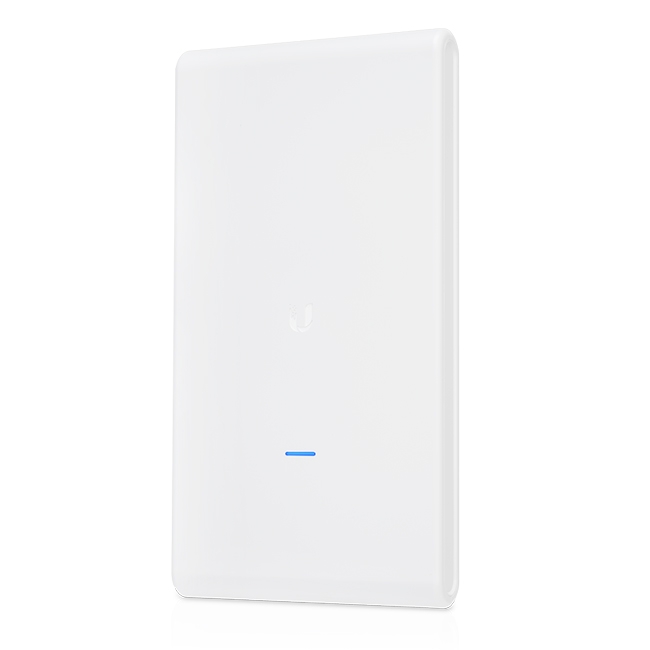

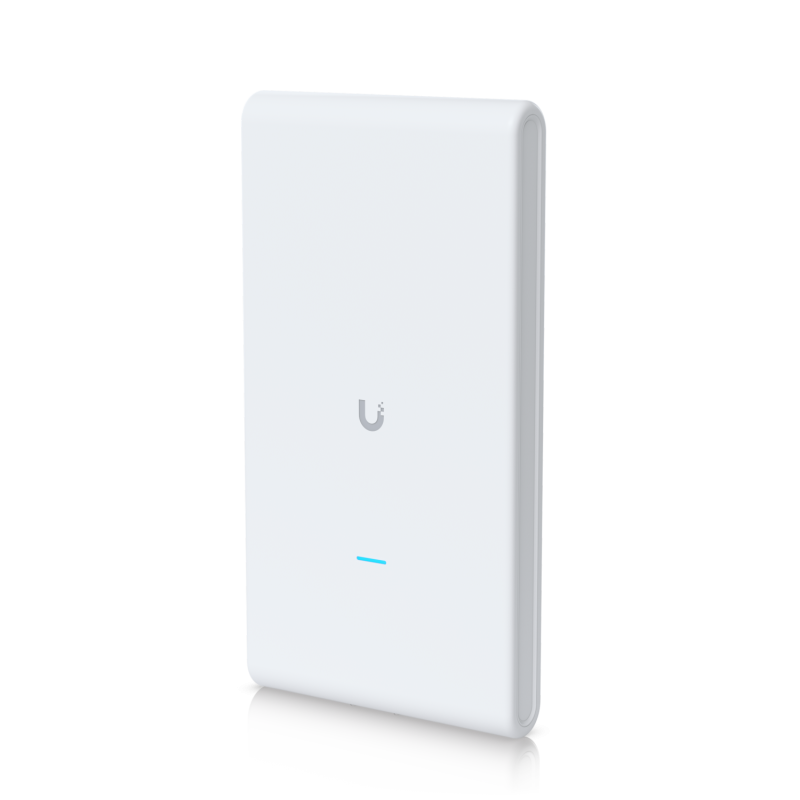

The Ubiquiti UniFi AC Mesh Pro Outdoor Access Point is designed to deliver high-performance dual-band wireless connectivity in demanding outdoor environments. Engineered with weather-resistant IPX4 housing, this premium access point features simultaneous dual-band 3x3 MIMO technology, achieving combined throughput speeds up to 1750Mbps (1300Mbps on 5GHz and 450Mbps on 2.4GHz) to satisfy high-bandwidth deployment requirements.

Equipped with integrated dual-band omnidirectional internal antennas, the device establishes an expansive wireless coverage area up to 185m² and comfortably supports over 250 concurrent client devices. This makes it an exceptional choice for enterprise applications, public spaces, university campuses, and outdoor industrial sites requiring consistent and robust connectivity.

Integration into existing infrastructures is streamlined through its two Gigabit Ethernet RJ45 ports and compatibility with standard 802.3af Power over Ethernet (PoE). It leverages a powerful centralized management ecosystem via the UniFi Network Controller software, enabling unlimited scalability, comprehensive traffic analytics, and seamless guest hotspot portal customization without subscription licensing fees.

Features
Dual-Band 3x3 MIMO Technology: Delivers concurrent wireless speeds up to 1300Mbps on the 5GHz band and 450Mbps on the 2.4GHz band for an aggregate throughput of 1750Mbps.
Extensive Outdoor Coverage: Built-in internal high-gain omnidirectional antennas provide uniform 360-degree signal propagation spanning up to 185m².
High-Density Client Support: Seamlessly handles connections for more than 250 concurrent users, making it ideal for large crowds or intensive IoT networks.
Weatherproof Resilience: Enclosed in a ruggedized, IPX4-rated weather-resistant housing designed specifically to withstand harsh outdoor elements.
Dual Gigabit Ethernet Ports: Features a primary port for data and 802.3af PoE input, alongside a secondary bridging port for connecting wired peripheral equipment.
Unified Network Scalability: Seamlessly integrates with the free UniFi Network software for localized or cloud-based remote deployment, monitoring, and network configuration.
Specifications
Dimensions: 343.2x181.2x60.2mm
Weight: 633g
Networking Interface: (2) 10/100/1000 Mbps RJ45 Ethernet Ports
Power Method: 802.3af PoE (Supported Voltage Range: 44–57V DC)
Max. Power Consumption: 9W
Max. TX Power: 2.4GHz: 22dBm | 5GHz: 22dBm
MIMO: 2.4GHz: 3x3 | 5GHz: 3x3
Max. Data Speed: 2.4GHz: 450Mbps | 5GHz: 1.3Gbps
Antenna Gain: 8dBi (Internal Omni)
Wi-Fi Standards: 802.11a/b/g/n/ac (WiFi 5)
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Weatherproofing: IPX4
Operating Temperature: -40 to 70°C
Mounting: Wall or Pole (Mounting kits included)
Warranty

2-year limited warranty
