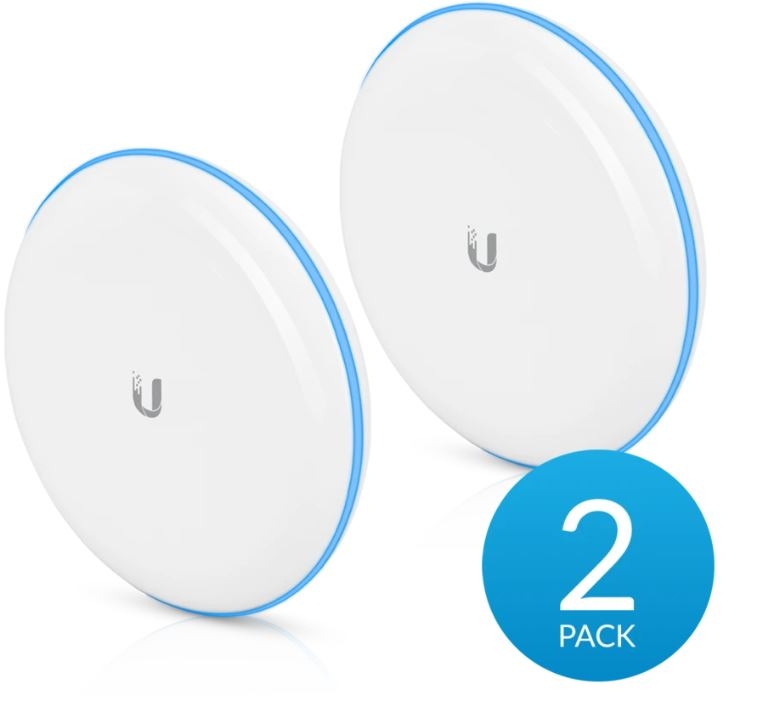

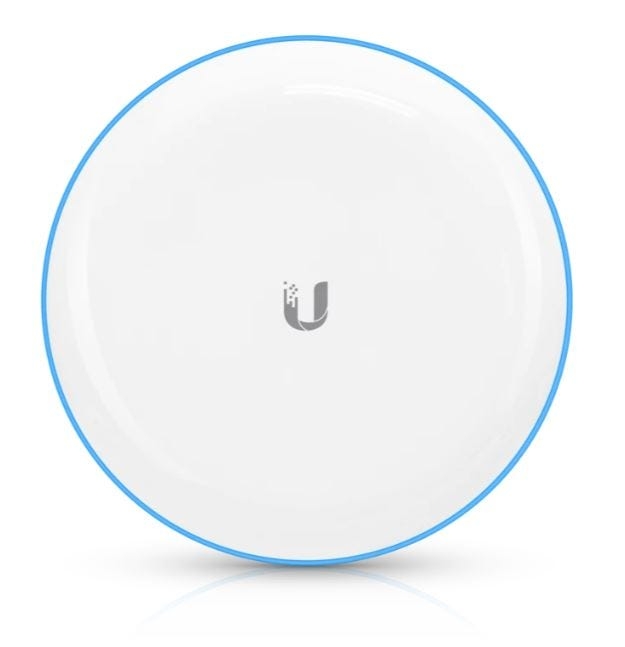

The Ubiquiti UBB UniFi Building-to-Building Bridge is a high-performance 60GHz/5GHz PtP solution designed for seamless wireless connectivity between two locations. Pre-configured for quick deployment, this kit delivers over 1Gbps throughput, ensuring ultra-low latency and high-speed data transfer.

With cutting-edge 60GHz technology and an integrated 5GHz failover, the UBB bridge ensures maximum uptime and reliability, even in challenging environments. Its compact, sleek design allows for discreet installation while maintaining powerful wireless performance.

Perfect for businesses, campuses, and remote facilities, the UBB bridge eliminates the need for complex cabling, making it a cost-effective and scalable alternative to fiber connections. Easily managed via UniFi Network Controller, this plug-and-play solution offers advanced security, seamless integration, and superior performance.

FEATURES

• Ultra-fast 60GHz wireless connectivity with 1Gbps+ throughput
• 5GHz backup link for seamless failover and uninterrupted performance
• Pre-configured for quick and hassle-free installation
• Compact, modern design for discreet deployment
• 500m+ range for long-distance point-to-point connections
• Secure and encrypted link for enhanced data protection
• UniFi Network Controller integration for centralised management

SPECIFICATIONS

• Wireless Bands: 60GHz (primary) + 5GHz (backup)
• Maximum Throughput: 1Gbps+
• Range: Up to 500m
• Antenna Gain: 60GHz (17.2dBi), 5GHz (10dBi)
• Networking Ports: 1 x Gigabit Ethernet (PoE)
• Power Input: 48V Passive PoE (24W Max)
• Mounting: Pole and wall-mounting options
• Dimensions: 140 x 140 x 90mm
• Weight: 376g per unit
• Operating Temperature: -40 C to 60 C

WARRANTY

1-Year Limited Warranty
