Ubiquiti | UCG-Max | UniFi Controller Cloud Gateway Max - UB.UCG.MAX

SKU
425946
Brand
MPN
UB.UCG.MAX
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $683.00 Regular Price $785.00
Buy Now And Earn 683 Reward Points!

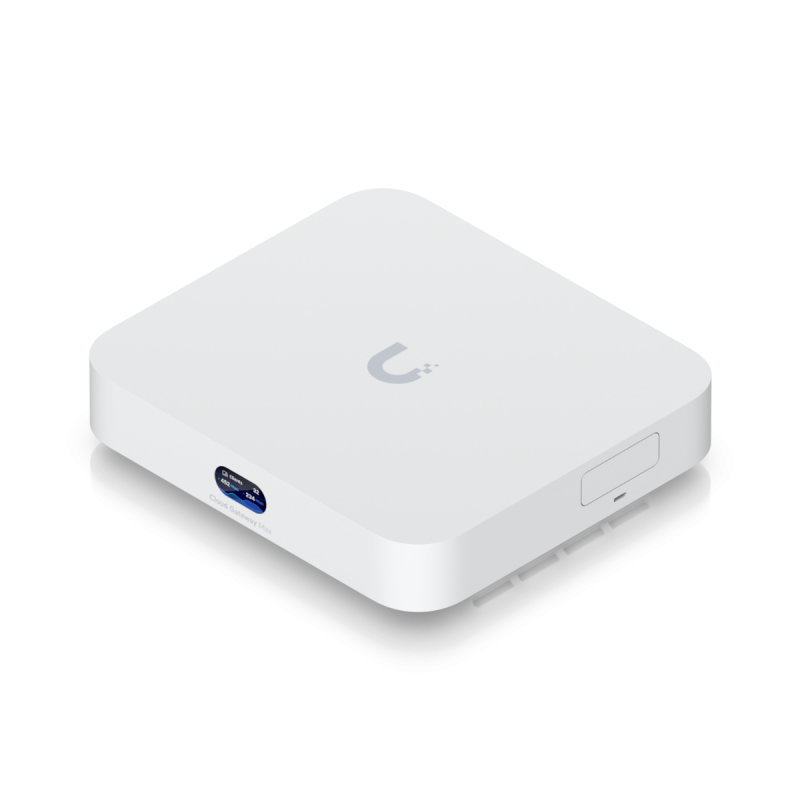

The Ubiquiti Cloud Gateway Max (UCG-Max) is the ultimate solution for businesses needing robust network performance, security, and advanced routing capabilities. Powered by a quad-core ARM Cortex-A53 processor, it offers unmatched processing power and seamless management through its intuitive interface. This gateway is perfect for organisations that demand high-speed connectivity with 1.5Gbps IDS/IPS throughput, ensuring reliable performance even under heavy network loads.

Designed for flexibility and scalability, the UCG-Max features redundant WAN with failover and load balancing, next-generation security protocols, and advanced networking options such as SD-WAN and VPN support. Its compact design and powerful hardware make it an ideal choice for any enterprise network setup.

FEATURES

  • Redundant WAN with failover and load balancing
  • Quad-core ARM Cortex-A53 processor at 1.5GHz
  • Signature-based IPS/IDS threat detection with 1.5Gbps throughput
  • License-free SD-WAN and advanced VPN options
  • Application-aware firewall rules and content filtering

SPECIFICATIONS

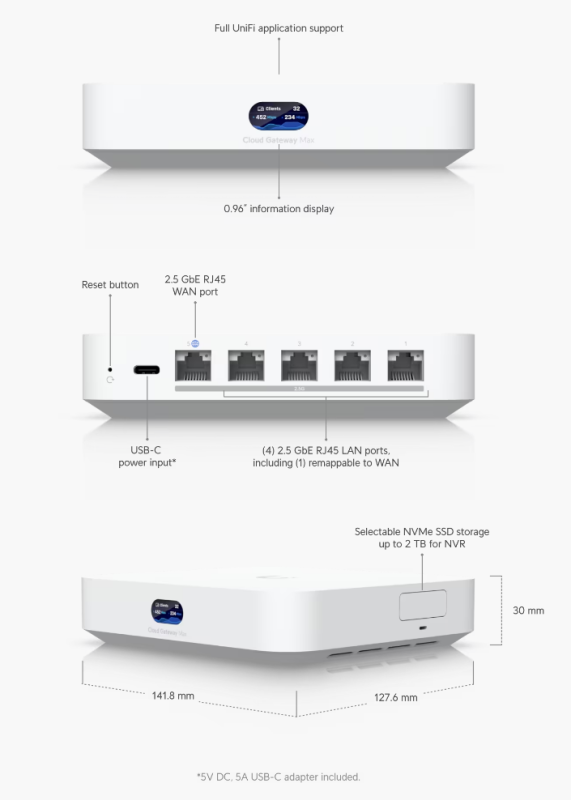

  • Dimensions: 141.8 x 127.6 x 30mm
  • Weight: 519g
  • System memory: 3GB DDR4
  • On-board storage: 512GB NVMe SSD
  • LAN: 4 x 1/2.5GbE RJ45 ports
  • WAN: 1 x 1/2.5GbE RJ45 port
  • Power consumption: Max 16.1W
  • Operating temperature: -10 to 40°C
  • Certifications: CE, FCC, IC


Specifications

More Information
SKU UB.UCG.MAX
Weight 0.840000
Form Factor Desktop
PoE No PoE
SFP No SFP
Total Ports 5
Predominant Port Type Gigabit Copper
Colour White
Package Single Pack
Warranty 1 Year
