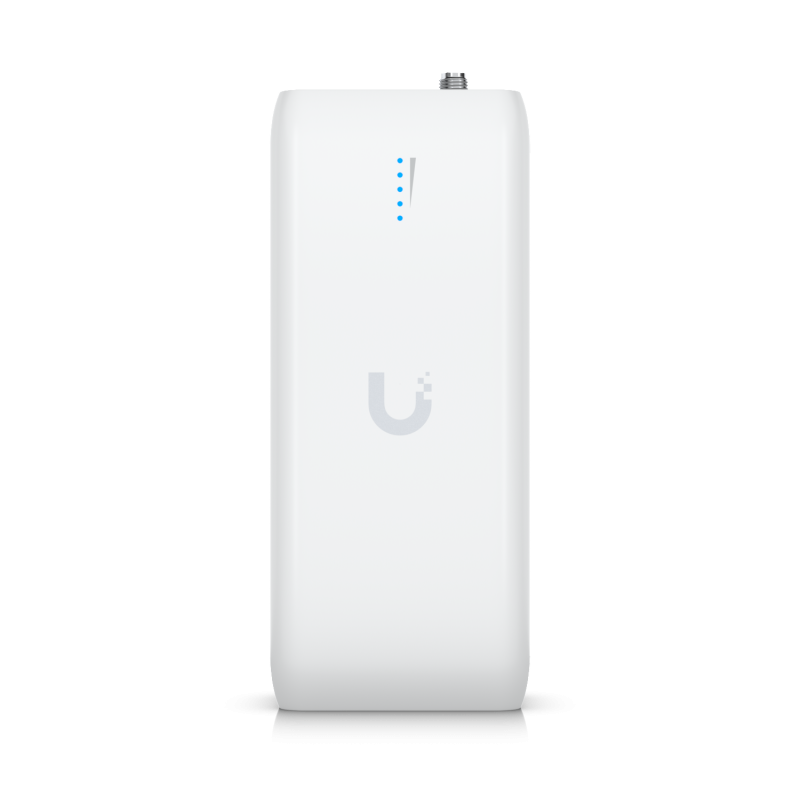

The Ubiquiti UniFi Device Bridge (UDB) is a plug-and-play, wireless bridging PoE adapter designed to seamlessly connect Ethernet devices to your UniFi network. It simplifies the process of wirelessly connecting devices such as PoE cameras, VoIP phones, and other IoT devices, eliminating the need for additional cabling. With integrated UniFi WiFi Auto-Link, the UDB ensures a smooth and reliable connection within the UniFi ecosystem.

FEATURES
(1) GbE LAN port with up to 15W PoE output
5 GHz band with up to 867 Mbps throughput
Integrated UniFi WiFi Auto-Link for seamless bridging
Internal and external antenna options (RP-SMA connector)
Compact and flexible design for easy deployment
SPECIFICATIONS
Dimensions: 130 x 55 x 34mm
Weight: 200g
WiFi Standard: WiFi 5 (802.11a/n/ac)
Spatial Streams: 2 x 2 MIMO
Max. Data Rate: 866.7 Mbps (5 GHz, BW80)
Antenna Gain:
Internal: 5dBi
External: 4dBi
Max. TX Power: 21 dBm (5 GHz)
PoE Output: 15W
Power Method: 100-240V AC, 50/60 Hz
Operating Frequency: 5150 - 5875 MHz (depending on region)
Operating Temperature: -10 to 40°C
Operating Humidity: 5 to 95% noncondensing
Security: WPA2 AES
Certifications: CE, FCC, IC
WARRANTY

2-year limited warranty
